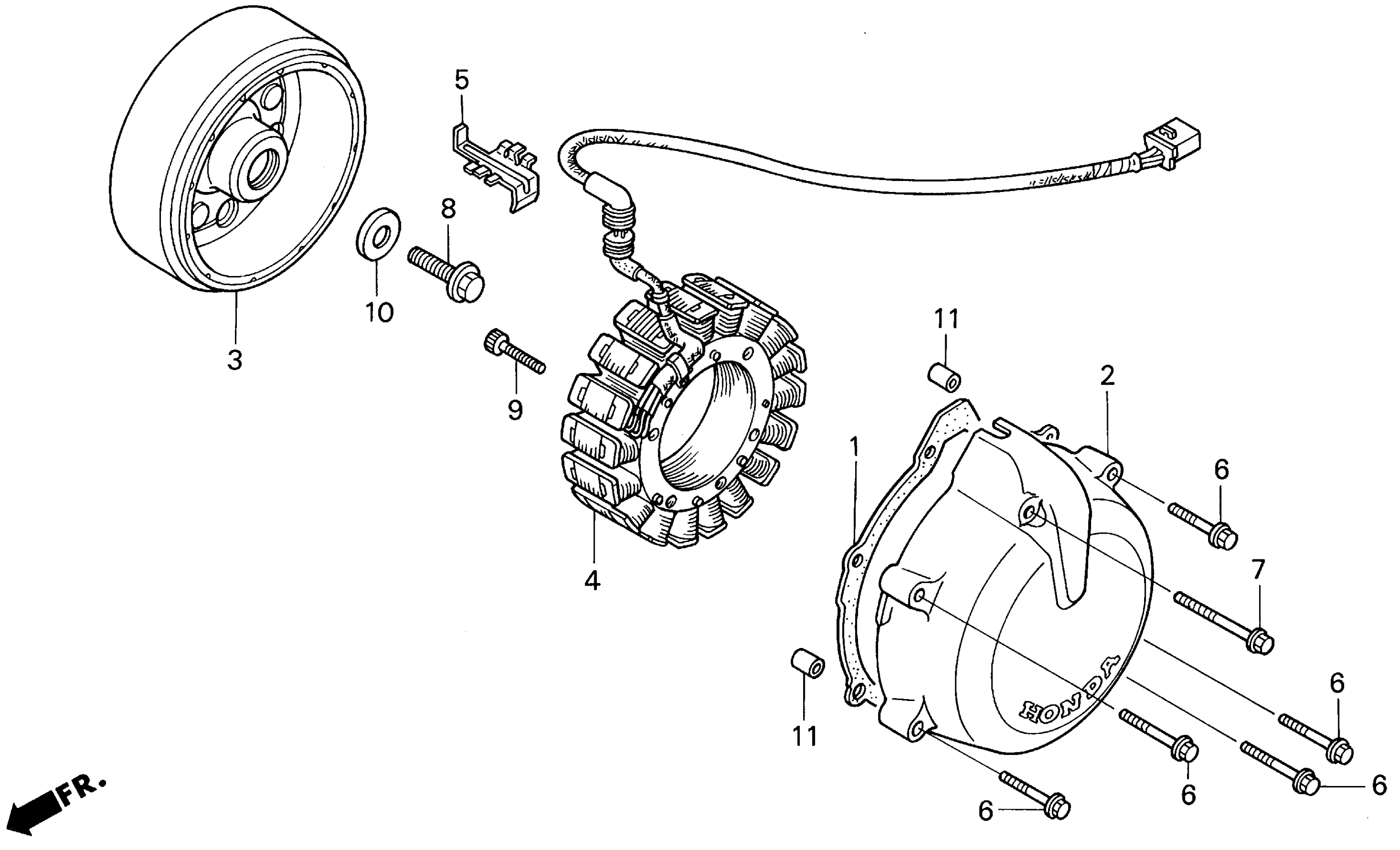

Honda VF750C2A (97) MAGNA, JPN, VIN# JH2RC433-VM200001 ALTERNATOR Diagram

GASKET, ALTERNATOR COVER

11636-MY7-000

$18.89

COVER, ALTERNATOR

11641-MZ5-920

$400.93

FLYWHEEL

31110-MZ5-004

$485.36

STATOR (DENSO)

31120-MZ5-004

Unavailable

CLAMP, CABLE

32111-MZ5-000

Unavailable

BOLT, FLANGE (6X32) (NSHF) This part replaces 90001-GHB-690.

90004-GHB-690

$3.85

BOLT, FLANGE (6X60)

90001-GHB-750

Unavailable

BOLT, FLANGE (10X35)

90003-MN4-000

$6.05

BOLT, SOCKET (6X38)

90116-375-000

$4.74

WASHER (10X25X4)

90405-ML0-000

$6.95

PIN, DOWEL (8X14)

94301-08140

$2.25
