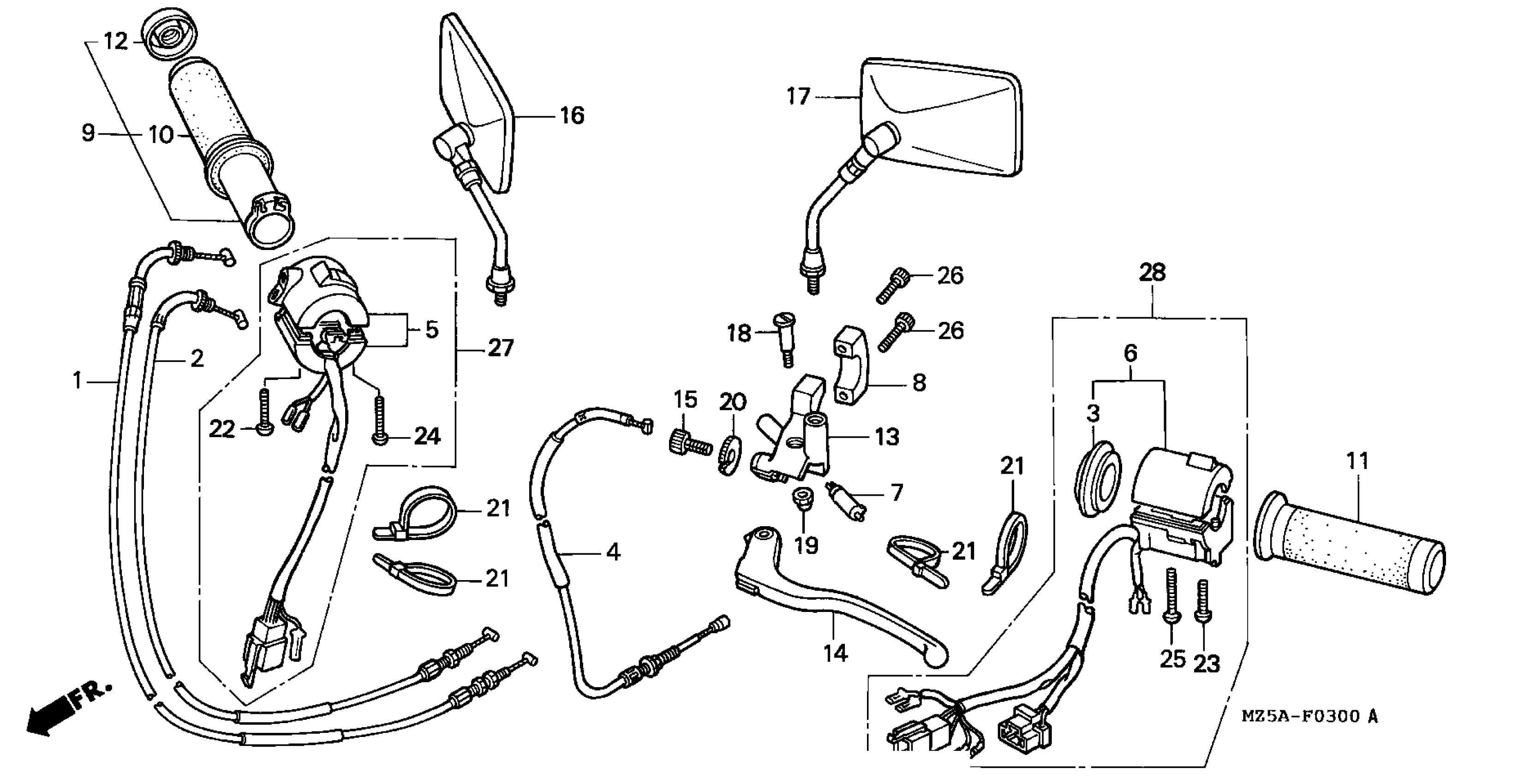

Honda VF750C2A (00) MAGNA (2-TONE), JPN, VIN# JH2RC433-YM500001 HANDLE SWITCH Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MZ5-910

Unavailable

2

CABLE B, THROTTLE

17920-MZ5-910

Unavailable

3

ADAPTER

17962-MR1-000

$19.30

4

CABLE, CLUTCH

22870-MZ5-770

$38.45

5

SWITCH ASSY., STARTER & STOP This part replaces 35130-MZ5-671.

35013-MZ8-U12

$101.77

6

SWITCH ASSY., TURN SIGNAL

35200-MZ5-671

Unavailable

7

SWITCH, FR. LEVER

35330-413-003

$21.91

8

HOLDER, MASTER CYLINDER (NISSIN)

45517-MR1-671

$27.25

9

GRIP, R.

53145-MM8-000

$43.84

10

GRIP, R.

53145-MM8-000

$43.84

10

GRIP, R. This part replaces 53165-MM8-000.

53145-MM8-000

$43.84

11

GRIP, L. HANDLE

53166-KCR-000

$36.92

12

CAP, GRIP END

53167-MM8-000

$9.37

13

BRACKET, HANDLE LEVER

53172-MR1-000

$35.68

14

LEVER, L. HANDLE

53178-KV0-000

$18.46

15

BOLT, WIRE ADJUSTING

53192-268-000

$6.72

16

MIRROR ASSY., R.

88110-MZ5-003

Unavailable

17

MIRROR ASSY., L.

88120-MZ5-003

$69.92

18

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.58

19

NUT, CAP (6MM)

90201-415-000

$2.05

20

NUT, FIXING

90321-MA6-750

$10.45

21

BAND, WIRE HARNESS

90651-MA6-720

$3.73

22

SCREW, PAN (5X20)

93500-05020-0B

$1.49

23

SCREW, PAN (5X22)

93500-05022-0B

$1.49

24

SCREW, PAN (5X25)

93500-05025-0B

$1.49

25

SCREW, PAN (5X32)

93500-05032-0B

$1.49

26

BOLT, SOCKET (6X22)

96600-06022-10

$2.10

26

BOLT, SOCKET (6X22) This part replaces 96700-06022-10.

96600-06022-10

$2.10
