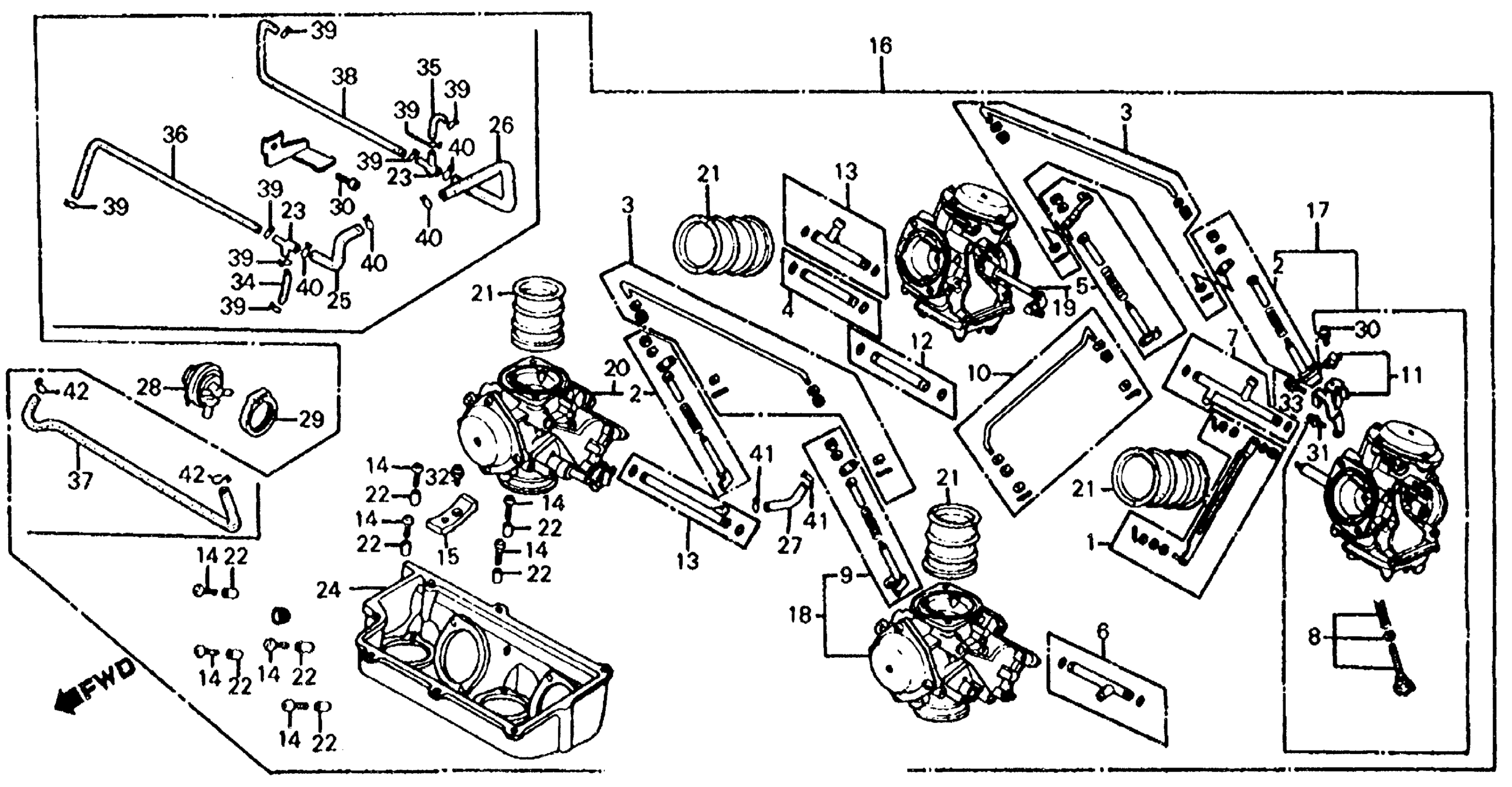

Honda VF700SAC (85) SABRE, JPN, VIN# JH2RC221-FM100001 TO JH2RC221-FM100863 CARBURETOR ASSY. + CARBURETOR LINK Diagram

#

Description
Price

1

LEVER SET A, LINK (NOT AVAILABLE)

16017-MB0-672

Unavailable

2

LINK A SET, STARTER This part replaces 16018-MB0-671.

16018-MK3-771

Unavailable

2

LINK A SET, STARTER

16018-MK3-771

Unavailable

3

ROD SET A, STARTER LINK (NOT AVAILABLE)

16019-MB0-671

Unavailable

4

JOINT SET C, FUEL

16022-MB1-771

Unavailable

5

LINK B SET, STARTER This part replaces 16025-MB0-671.

16025-MK3-771

Unavailable

5

LINK B SET, STARTER

16025-MK3-771

Unavailable

6

JOINT SET A, FUEL

16026-MB0-671

$52.80

7

JOINT SET E, FUEL

16027-MB2-004

Unavailable

8

SCREW SET This part replaces 16028-KR3-671.

16028-KR3-980

$46.87

8

SCREW SET This part replaces 16028-MB0-671.

16028-KR3-980

$46.87

9

LINK C SET, STARTER

16031-MB0-671

Unavailable

10

ROD SET B, STARTER LINK (NOT AVAILABLE)

16032-MB0-671

Unavailable

11

PLATE SET, STAY

16035-MB0-671

Unavailable

12

JOINT SET D, FUEL

16042-MB1-771

Unavailable

13

JOINT SET B, FUEL

16047-MB0-771

Unavailable

14

SCREW, PAN

16080-MB0-671

$2.16

15

PLATE, SETTING (NOT AVAILABLE)

16094-MB0-671

Unavailable

16

CARBURETOR ASSY.

16100-MB0-881

Unavailable

17

CARBURETOR ASSY. 1

16101-MB0-881

Unavailable

18

CARBURETOR ASSY. 2

16102-MB0-881

Unavailable

19

CARBURETOR ASSY. 3

16103-MB0-881

Unavailable

20

CARBURETOR ASSY. 4

16104-MB0-881

Unavailable

21

FUNNEL, AIR

16141-MB0-672

Unavailable

22

PIN, KNOCK

16178-MB0-671

$4.98

23

T-JOINT This part replaces 16180-MB2-881.

17194-MN5-000

$12.39

23

T-JOINT

17194-MN5-000

$12.39

24

BASE, AIR CLEANER This part replaces 16188-MB0-881.

16188-MB0-882

Unavailable

25

TUBE (NOT AVAILABLE)

16198-MB1-881

Unavailable

26

TUBE This part replaces 16199-MB1-881.

16144-MB4-405

Unavailable

27

TUBE, AIR VENT (NOT AVAILABLE)

16199-MB4-621

Unavailable

28

VALVE, PURGE CONTROL

17440-MB4-880

Unavailable

29

RUBBER, PURGE CONTROL VALVE SETTING

17451-ME5-760

$12.90

30

SCREW-WASHER (4X10)

93892-04010-00

$1.49

31

SCREW-WASHER (4X12)

93892-04014-00

$1.49

32

SCREW-WASHER (5X8)

93892-05008-08

$1.49

33

SCREW-WASHER (5X12)

93892-05012-00

$1.49

34

BULK HOSE, FUEL (3.5X3000) (3.5X70)

95001-35003-60M

$20.85

35

BULK HOSE, FUEL (3.5X3000) (3.5X80)

95001-35003-60M

$20.85

36

BULK HOSE, FUEL (3.5X3000) (3.5X180)

95001-35003-60M

$20.85

37

BULK HOSE, FUEL (3.5X3000) (3.5X200)

95001-35003-60M

$20.85

38

BULK HOSE, FUEL (3.5X3000) (3.5X210)

95001-35003-60M

$20.85

39

CLIP, TUBE (B7)

95002-02070

$1.80

40

CLIP, TUBE (B10)

95002-02100

$1.90

41

CLIP, TUBE (B12)

95002-02120

$2.00

42

CLIP, BREATHER TUBE

15772-500-010

$3.90

42

CLIP, BREATHER TUBE This part replaces 15772-500-013.

15772-500-010

$3.90
