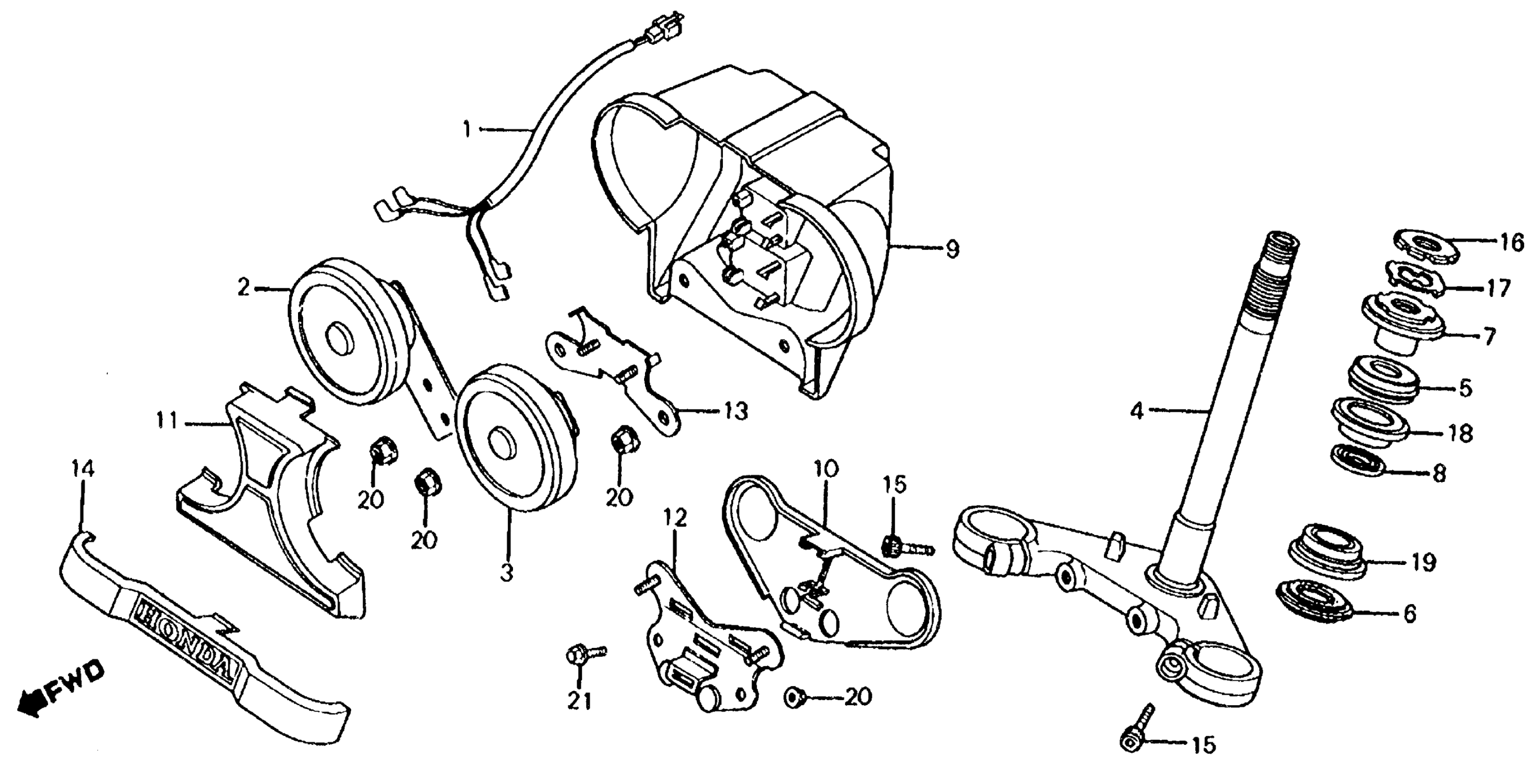

Honda VF700SA (85) SABRE, JPN, VIN# JH2RC220-FM100001 TO JH2RC220-FM102800 STEERING STEM + HORN Diagram

#

Description
Price

1

SUB-HARNESS, HORN This part replaces 32106-MB0-950.

32106-MJ8-000

Unavailable

1

SUB-HARNESS, HORN

32106-MJ8-000

Unavailable

2

HORN ASSY. (HIGH)

38110-MB0-891

Unavailable

2

HORN ASSY. (HIGH) (NOT AVAILABLE) This part replaces 38110-MB0-951.

38110-MB0-891

Unavailable

3

HORN ASSY. (LOW)

38120-MB0-891

Unavailable

3

HORN ASSY. (LOW) This part replaces 38120-MB0-951.

38120-MB0-891

Unavailable

4

STEM, STEERING

53200-MB0-950

Unavailable

5

DUST SEAL, STEERING HEAD

53213-MB4-771

$12.13

6

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

7

THREAD, STEERING HEAD (UPPER)

53220-422-000

$32.73

7

THREAD, STEERING HEAD TOP This part replaces 53220-460-840.

53220-422-000

$32.73

8

HOLDER, GREASE

53223-371-010

Unavailable

9

CASE, CONNECTOR HOLDER

61305-MB0-950

Unavailable

10

SEPARATOR, CONNECTOR HOLDER

61306-MB0-950

Unavailable

11

COVER, CONNECTOR HOLDER

61307-MB0-950

Unavailable

12

STAY, CONNECTOR HOLDER

61308-MB0-950

Unavailable

13

STAY, HORN

61309-MB0-950

Unavailable

14

COVER (LOWER) (NOT AVAILABLE)

61401-MB0-950

Unavailable

15

BOLT, SOCKET (10X30)

90152-MB0-000

Unavailable

16

THREAD, STEERING HEAD TOP (B)

90302-425-830

$21.73

17

WASHER, LOCK

90506-425-830

$7.05

18

BEARING, HEAD PIPE (UPPER)

91015-KT8-005

$36.57

18

BEARING, HEAD PIPE (UPPER) This part replaces 91015-MB4-771.

91015-KT8-005

$36.57

19

BEARING, HEAD PIPE (LOWER)

91016-KT8-005

$36.57

19

BEARING, HEAD PIPE (LOWER) This part replaces 91016-MB4-771.

91016-KT8-005

$36.57

20

NUT, FLANGE (6MM)

94050-06000

$1.49

21

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

21

BOLT, FLANGE (6X10)

95701-06010-07

$1.62
