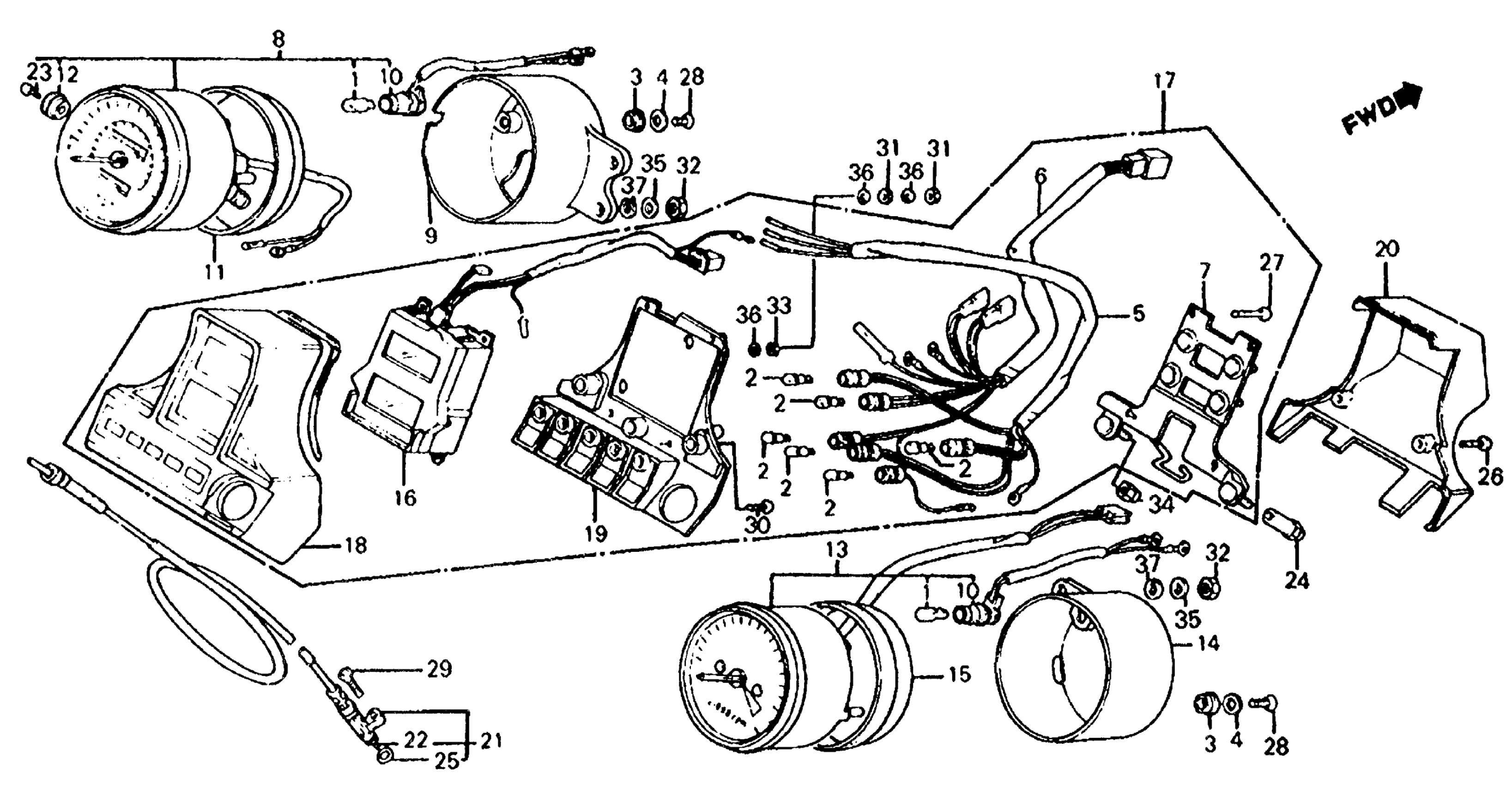

Honda VF700SA (85) SABRE, JPN, VIN# JH2RC220-FM100001 TO JH2RC220-FM102800 SPEEDOMETER + TACHOMETER Diagram

#

Description
Price

1

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

1

BULB (12V3.4W2CP) (158) (NS)

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

2

BULB 12V 2.3W WED This part replaces 34908-MB0-003.

34275-S2X-003

$3.28

3

RUBBER, METER SETTING

37101-MB1-008

$2.92

4

WASHER (METER) (NOT AVAILABLE)

37102-MB0-008

Unavailable

5

SOCKET (A)

37105-MB0-911

Unavailable

6

SOCKET (B)

37106-MB0-911

Unavailable

7

STAY, METER (NOT AVAILABLE)

37120-MB0-911

Unavailable

8

SPEEDOMETER ASSY.

37200-MB0-911

Unavailable

9

COVER, SPEEDOMETER (NOT AVAILABLE)

37202-MB0-951

Unavailable

10

SOCKET, ILLUMINATION

37203-MB1-870

Unavailable

11

RUBBER, SPEEDOMETER

37204-MB1-008

Unavailable

12

KNOB, TRIP METER

37220-MB4-671

$15.48

13

TACHOMETER ASSY.

37250-MB0-911

Unavailable

14

COVER, TACHOMETER (NOT AVAILABLE)

37252-MB0-951

Unavailable

15

RUBBER, TACHOMETER

37254-MB1-008

Unavailable

16

METER, TEMPERATURE & GEAR POSITION This part replaces 37450-MB0-911.

37450-MB0-912

Unavailable

16

METER, TEMPERATURE & GEAR POSITION

37450-MB0-912

Unavailable

17

BOX ASSY., PILOT

37600-MB0-902

Unavailable

17

BOX ASSY., PILOT This part replaces 37600-MB0-912.

37600-MB0-902

Unavailable

17

BOX ASSY., PILOT This part replaces 37600-MB0-913.

37600-MB0-902

Unavailable

18

BOX ASSY., PILOT (UPPER)

37610-MB4-611

Unavailable

18

BOX ASSY., PILOT (UPPER) This part replaces 37610-MB4-671.

37610-MB4-611

Unavailable

19

BOX ASSY., PILOT (LOWER) (NOT AVAILABLE)

37617-MB4-671

Unavailable

20

COVER (LOWER) (NOT AVAILABLE)

37618-MB4-671

Unavailable

21

CABLE ASSY., SPEEDOMETER

44830-ME5-000

Unavailable

22

CABLE (INNER)

44831-ME5-300

Unavailable

23

SCREW, PAN (2X6) This part replaces 90102-434-671.

90600-KJ9-700

Unavailable

23

SCREW, PAN (2X6)

90600-KJ9-700

Unavailable

24

NUT, INSTRUMENT SETTING

90303-MB1-000

Unavailable

25

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

25

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

25

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

26

SCREW, PAN (3X10)

93500-03010-0G

Unavailable

27

SCREW, PAN (3X20) (NOT AVAILABLE)

93500-03020

Unavailable

27

SCREW, PAN (3X20)

93500-03020-0A

$1.49

27

SCREW, PAN (3X20) (NOT AVAILABLE) This part replaces 93500-03020-1A.

93500-03020

Unavailable

28

SCREW, OVAL (4X8)

93700-04008-0B

$1.49

29

SCREW, OVAL (5X20)

93700-05020-0G

$1.49

30

SCREW, TAPPING (3X10)

93901-32220

$1.49

31

NUT, HEX. (3MM)

94001-03000-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM)

94001-06200-0S

$1.49

33

NUT, HEX. (3MM)

94002-03000-0S

Unavailable

34

NUT, CAP (8MM)

94021-08020-0S

$1.82

35

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

35

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

35

WASHER, PLAIN (6MM)

94101-06800

$1.49

36

WASHER, SPRING (3MM)

94111-03800

$1.49

37

WASHER, SPRING (6MM)

94111-06000

$1.49
