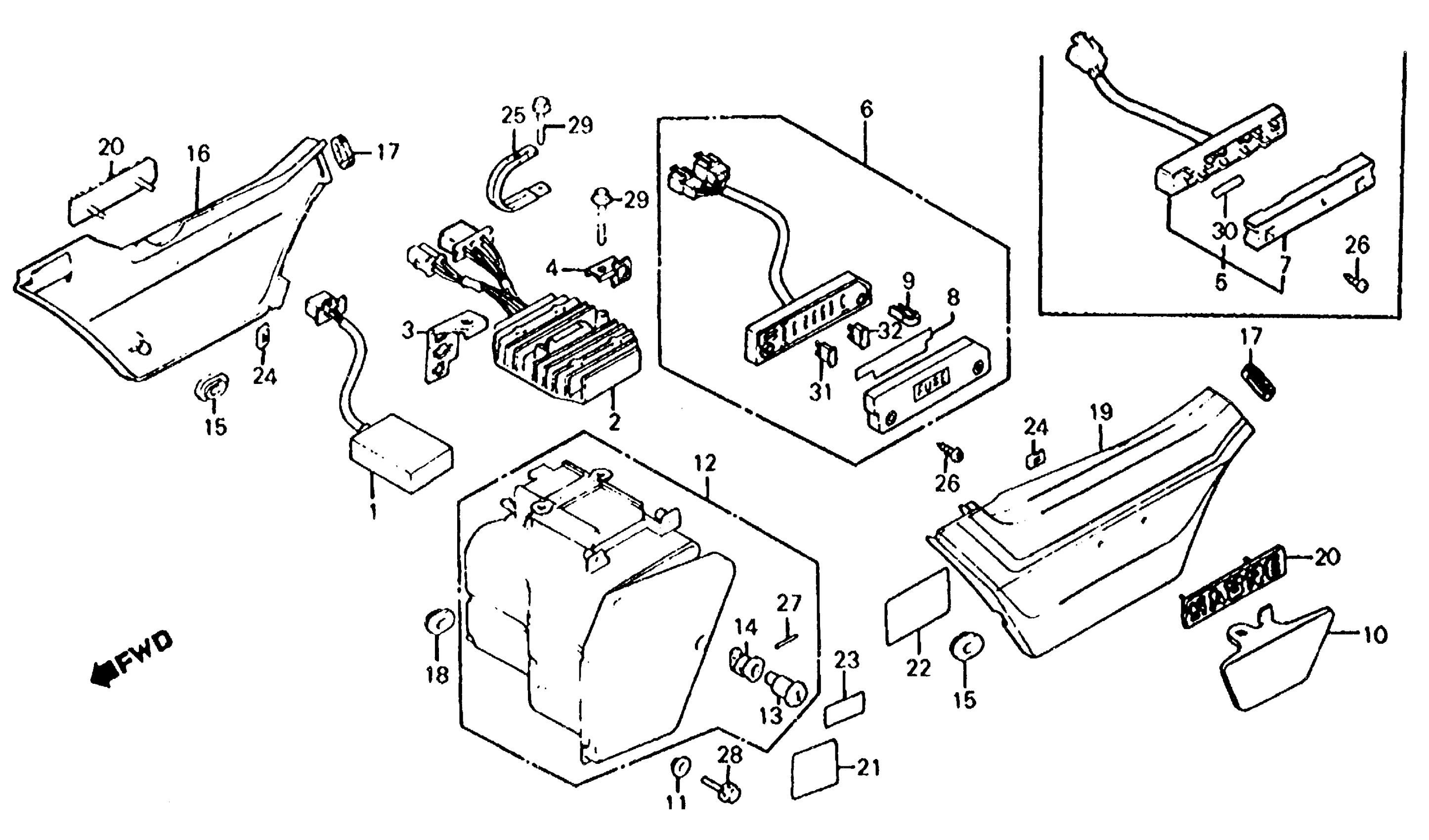

Honda VF700SA (85) SABRE, JPN, VIN# JH2RC220-FM100001 TO JH2RC220-FM102800 SIDE COVER Diagram

#

Description
Price

1

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)

30400-MB1-871

Unavailable

2

RECTIFIER ASSY., REGULATE This part replaces 31600-MB0-008.

31600-MB3-670

Unavailable

2

RECTIFIER ASSY., REGULATE

31600-MB3-670

Unavailable

3

CLAMP, RECTIFIER WIRE

31605-MB0-700

Unavailable

4

PLATE, CONNECTOR HOLDER

31606-MB0-910

Unavailable

6

BOX ASSY., FUSE This part replaces 38200-MB0-911.

38200-MN4-405

Unavailable

6

BOX ASSY., FUSE

38200-MN4-405

Unavailable

8

LABEL, FUSE

38215-MB0-910

Unavailable

9

PULLER, FUSE (DAIICHI)

38235-SA5-004

Unavailable

10

PLATE, L. SIDE

53613-MB0-000

Unavailable

11

COLLAR, FR. FENDER

61105-MA3-000

$3.80

12

BOX ASSY., TOOL

83500-MB0-000

Unavailable

13

BODY, KEY

83507-422-000

$3.53

14

STOPPER, KEY BODY

83508-KBG-000

$2.90

14

STOPPER, KEY BODY This part replaces 83508-438-000.

83508-KBG-000

$2.90

15

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

16

COVER SET, R. SIDE *NH1* (TYPE1) (BLACK)

836A0-MB0-910ZA

Unavailable

16

COVER SET, R. SIDE *NH1* (TYPE2) (BLACK)

836A0-MB0-910ZB

Unavailable

17

GROMMET A, SIDE COVER

83601-MB0-000

$4.53

18

RUBBER B, BATTERY TRAY MOUNT (NOT AVAILABLE)

83615-303-000

Unavailable

19

COVER SET, L. SIDE *NH1* (TYPE1) (BLACK)

837A0-MB0-910ZA

Unavailable

19

COVER SET, L. SIDE *NH1* (TYPE2) (BLACK)

837A0-MB0-910ZB

Unavailable

20

EMBLEM, SIDE COVER *A73* (TYPE1) (GOLD)

87127-MB0-910ZA

Unavailable

20

EMBLEM, SIDE COVER *A03* (TYPE2) (SILVER) (NOT AVAILABLE)

87127-MB0-910ZB

Unavailable

22

MARK, RADIATOR CAUTION (NOT AVAILABLE)

87508-415-670

Unavailable

23

LABEL, RR. RUBBER CAUTION

87518-MB0-770

Unavailable

24

NUT, SPEED (3MM)

90315-504-000

$3.21

25

CLAMP

91403-663-000

Unavailable

26

SCREW, PAN (4X6)

93500-04006-0H

$1.49

26

SCREW, PAN (4X6) This part replaces 93500-04006-1H.

93500-04006-0H

$1.49

27

PIN, SPRING (2X14)

94305-20141

$1.49

28

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

28

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

29

BOLT, FLANGE (6X35) This part replaces 95700-06035-08.

95701-06035-08

$1.79

29

BOLT, FLANGE (6X35)

95701-06035-08

$1.79

31

FUSE, BLADE (10A)

98200-31000

$1.49

32

FUSE, BLADE (15A)

98200-31500

$1.49
