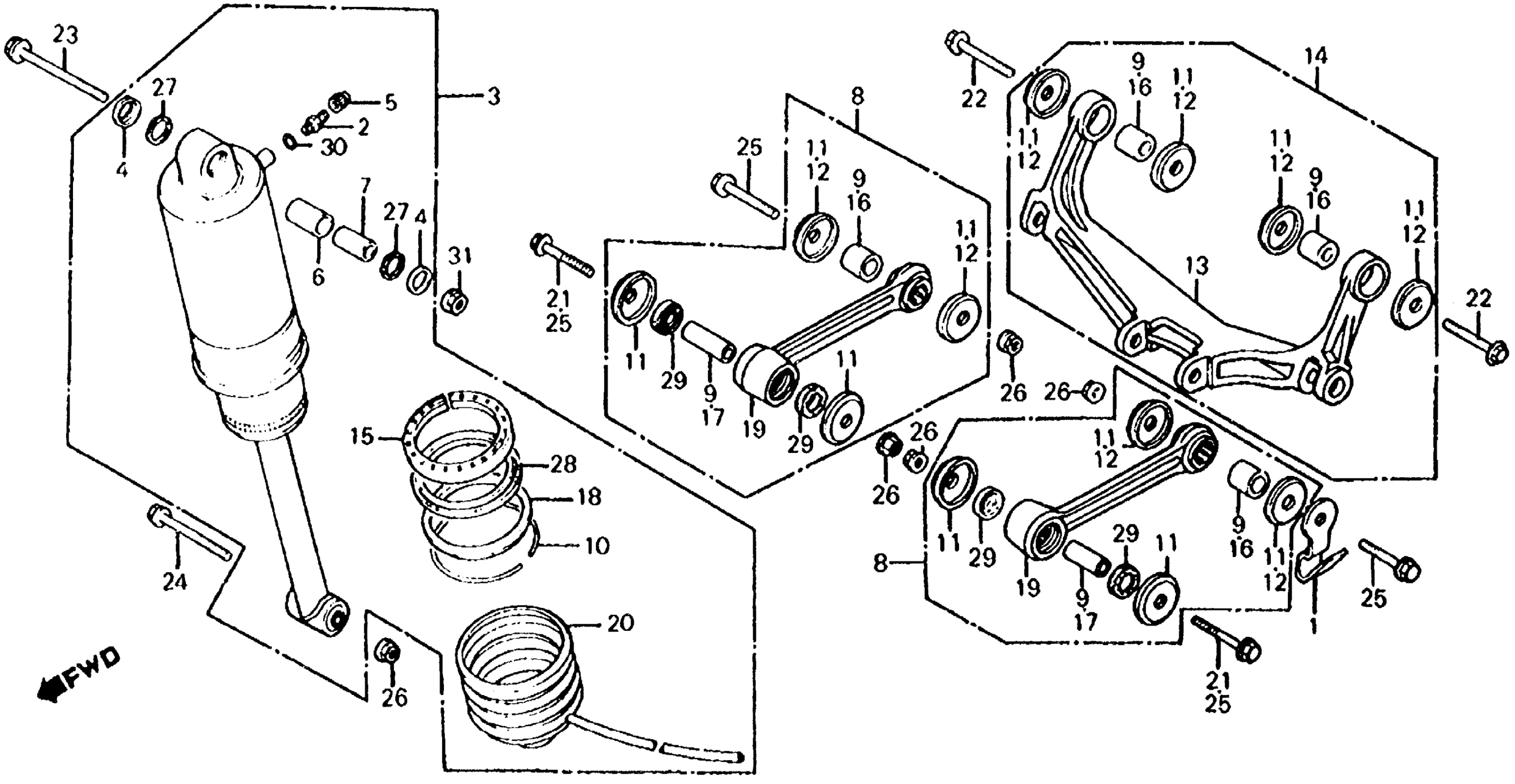

Honda VF700SA (85) SABRE, JPN, VIN# JH2RC220-FM100001 TO JH2RC220-FM102800 SHOCK ABSORBER Diagram

CLIP, CLUTCH CABLE (NOT AVAILABLE)

45469-399-000

Unavailable

VALVE, AIR (SHOWA)

51456-469-013

$33.69

SHOCK ABSORBER ASSY., RR.

52400-MB0-911

Unavailable

CAP (SHOWA) (NOT AVAILABLE)

52406-MA1-731

Unavailable

CAP, AIR VALVE (SHOWA)

52425-169-003

$4.94

METAL, BUSH (NOT AVAILABLE)

52452-MA1-731

Unavailable

COLLAR, BUSH (NOT AVAILABLE)

52453-MA2-771

Unavailable

ROD ASSY., SHOCK CONNECTING

52460-MB0-910

Unavailable

RING B, STOPPER

52463-MC7-013

Unavailable

SEAL, CUSHION ARM

52464-MB0-911

Unavailable

ARM ASSY., SHOCK ABSORBER

52470-MB0-910

Unavailable

CASE, GUIDE

52472-MC7-003

Unavailable

COLLAR, CUSHION ARM

52474-MB0-910

Unavailable

COLLAR, CONNECTING ROD

52475-MB0-910

Unavailable

RING, BACK-UP

52477-MC7-013

Unavailable

BOOT, RR. SHOCK

52611-MB0-003

Unavailable

BOLT, FLANGE (10X62)

90101-MBB-000

$4.04

BOLT, FLANGE (10X62) This part replaces 90109-KE8-003.

90101-MBB-000

$4.04

BOLT, FLANGE (10X53) This part replaces 90154-MB0-000.

90154-MV4-000

Unavailable

BOLT, FLANGE (10X190) (NOT AVAILABLE)

90157-MB0-000

Unavailable

BOLT, FLANGE (10X80)

90101-MN9-000

$12.33

BOLT, FLANGE (10X80) This part replaces 90159-MB0-000.

90101-MN9-000

$12.33

BOLT, UBS (10X48)

90163-HA8-000

Unavailable

BOLT, UBS (10X48) This part replaces 90163-MB0-000.

90163-HA8-000

Unavailable

NUT, AXLE (10MM)

90304-GA6-003

$2.89

DUST SEAL (SHOWA)

91254-MA1-731

Unavailable

OIL SEAL (65X80X10.5)

91257-MC7-003

Unavailable

DUST SEAL, CONNECTING ROD PIVOT

91262-MB2-005

$3.83

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

O-RING (5.8X1.9)

91305-323-000

$2.92

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

NUT, AXLE (10MM)

90304-GA6-003

$2.89
