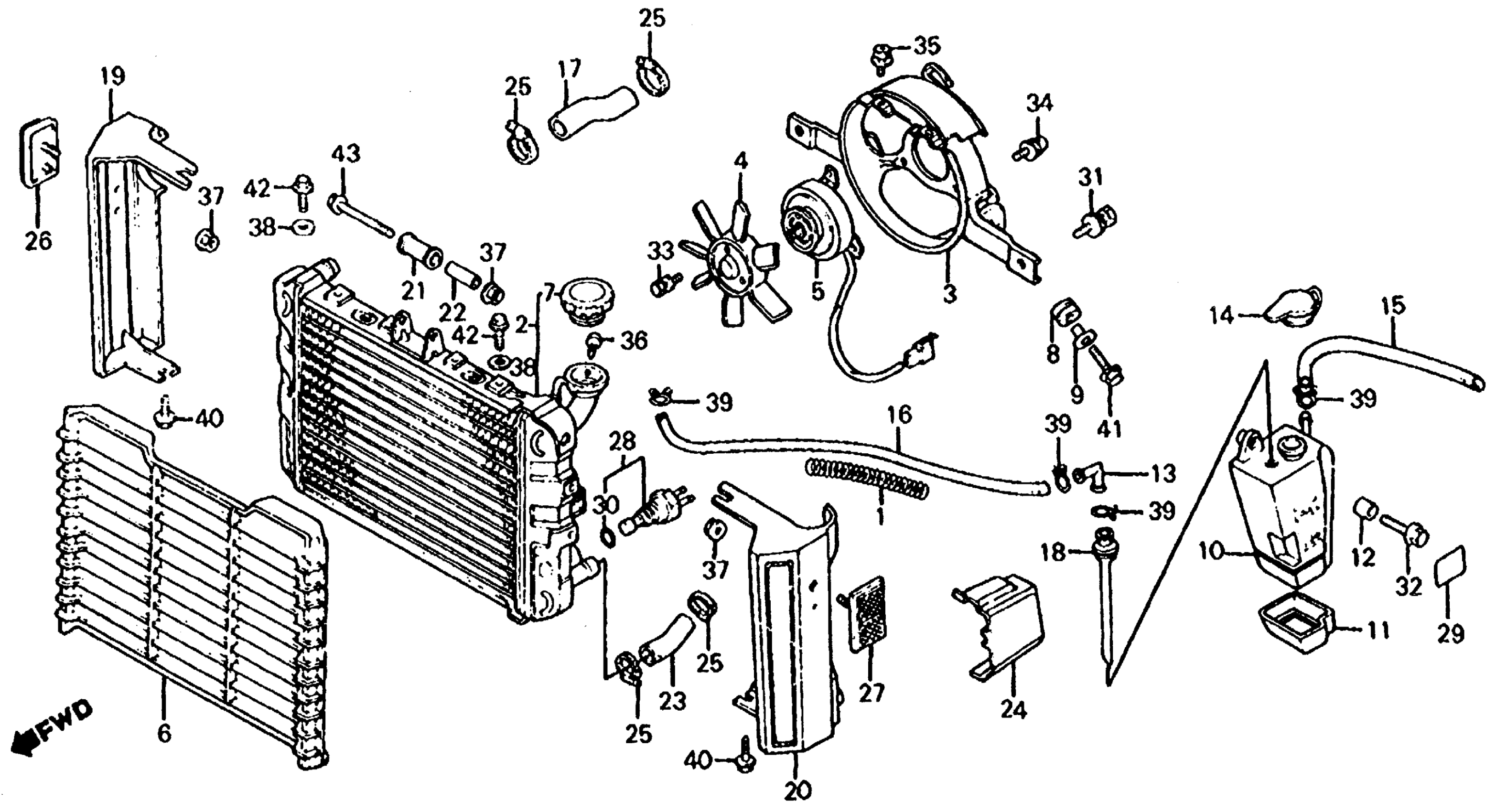

Honda VF700SA (85) SABRE, JPN, VIN# JH2RC220-FM100001 TO JH2RC220-FM102800 RADIATOR Diagram

#

Description
Price

1

SPRING, FUEL TUBE COVER

16715-MB1-000

Unavailable

2

RADIATOR (NOT AVAILABLE)

19010-MB0-003

Unavailable

2

RADIATOR (TOYO)

19010-MB0-702

Unavailable

3

SHROUD (TOYO)

19015-MB0-702

Unavailable

3

SHROUD (DENSO)

19015-MB1-013

Unavailable

4

FAN, COOLING (DENSO) (NOT AVAILABLE)

19020-MB0-013

Unavailable

5

MOTOR, FAN

19030-MB0-950

Unavailable

6

GRILLE, RADIATOR

19032-MB0-950

Unavailable

7

CAP, RADIATOR This part replaces 19045-MB0-013.

19045-MZ3-405

$32.49

7

CAP, RADIATOR This part replaces 19045-MB0-702.

19045-MZ3-405

$32.49

7

CAP, RADIATOR

19045-MZ3-405

$32.49

8

RUBBER, RADIATOR SETTING

19051-KA4-000

$3.80

9

COLLAR, RADIATOR SETTING

19052-MB0-000

$6.34

10

TANK, RESERVE This part replaces 19101-MB0-950.

19101-MB0-890

Unavailable

11

COVER, RESERVE TANK (NOT AVAILABLE)

19102-MB0-000

Unavailable

12

COLLAR, RESERVE TANK SETTING

19103-MB0-000

Unavailable

13

JOINT, TUBE

19103-463-000

Unavailable

14

CAP, RESERVE TANK

19104-MB0-700

$12.16

15

TUBE, RESERVE TANK

19106-MB0-700

Unavailable

16

TUBE, OVERFLOW This part replaces 19107-MB0-000.

19109-KM3-405

Unavailable

16

TUBE, OVERFLOW This part replaces 19109-KM3-010.

19109-KM3-405

Unavailable

16

TUBE, OVERFLOW

19109-KM3-405

Unavailable

17

HOSE, RADIATOR

19107-MB1-000

Unavailable

18

TUBE, LEVEL This part replaces 19108-MB0-000.

19108-MB0-010

$11.50

19

COVER, R. RADIATOR

19110-MB0-950

Unavailable

20

COVER, L. RADIATOR (NOT AVAILABLE)

19111-MB0-950

Unavailable

21

RUBBER, RADIATOR SETTING

19113-MB0-000

Unavailable

22

COLLAR, RADIATOR SETTING

19114-MB0-000

Unavailable

23

HOSE A, RADIATOR

19115-MB0-000

Unavailable

24

COVER, RADIATOR HOSE

19117-MB0-700

Unavailable

25

CLAMP, WATER HOSE

19503-MB1-870

$12.56

26

REFLECTOR, R. FR. REFLEX (NOT AVAILABLE)

33740-MB0-950

Unavailable

27

REFLECTOR, L. FR. REFLEX (NOT AVAILABLE)

33741-MB0-950

Unavailable

28

SWITCH ASSY., THERMO

37760-MB4-770

Unavailable

29

LABEL, RESERVE TANK (NOT AVAILABLE)

87507-371-671

Unavailable

30

O-RING (13.5X1.4)

91307-PH7-660

$2.83

30

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

31

BOLT, FLANGE (6X12) This part replaces 93493-06012-07.

95701-06012-00

$1.62

31

BOLT, FLANGE (6X12) This part replaces 95700-06012.

95701-06012-00

$1.62

31

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

31

BOLT, FLANGE (6X12) This part replaces 95700-06012-10.

95701-06012-00

$1.62

31

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

31

BOLT, FLANGE (6X12) This part replaces 95800-06012.

95701-06012-00

$1.62

31

BOLT, FLANGE (6X12) This part replaces 95900-06012-02.

95701-06012-00

$1.62

32

BOLT-WASHER (6X25)

93404-06025-08

$1.87

32

BOLT-WASHER (6X25) This part replaces 93494-06025-08.

93404-06025-08

$1.87

33

SCREW-WASHER (4X8) | Use up to Frame SN FM102757

93893-04008-08

$1.49

33

SCREW (4MM) (NOT AVAILABLE) | Use from Frame SN FM102758

90101-MG9-003

Unavailable

34

SCREW-WASHER (5X10)

93893-05010-08

$1.49

35

SCREW-WASHER (6X12)

93893-06012-07

$1.49

36

SCREW, TAPPING (3X8)

93901-22180

$1.49

37

NUT, FLANGE (6MM)

94050-06000

$1.49

38

WASHER, PLAIN (6MM)

94101-06700

$1.49

39

CLIP, TUBE (C11)

95002-70000

$1.56

40

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

40

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

41

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

41

BOLT, FLANGE (6X25)

95701-06025-07

$1.80

42

BOLT, FLANGE (6X10) This part replaces 96000-06010-07.

96001-06010-07

$1.62

42

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

43

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

43

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
