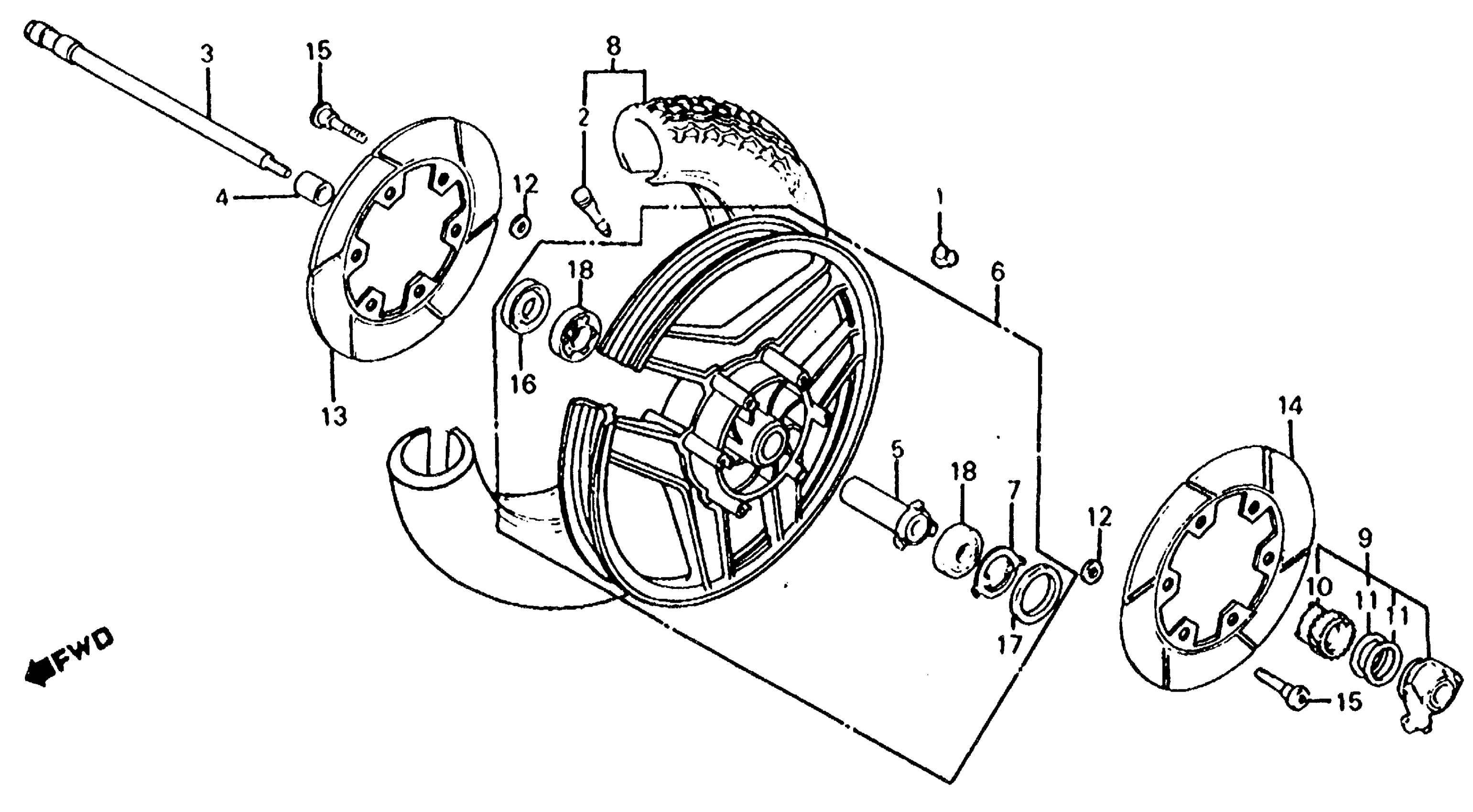

Honda VF700SA (85) SABRE, JPN, VIN# JH2RC220-FM100001 TO JH2RC220-FM102800 FRONT WHEEL Diagram

#

Description
Price

1

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

1

WEIGHT, BALANCE (10)

42704-MCF-D60

$12.74

1

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

1

WEIGHT, BALANCE (20)

42705-MCF-D60

$15.38

1

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

1

WEIGHT, BALANCE (30)

42706-MCF-D60

$14.48

2

VALVE, RIM (BS)

42753-425-003

$11.00

2

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

3

AXLE, FR. WHEEL

44301-KR3-901

Unavailable

3

AXLE, FR. WHEEL

44301-MC5-000

$49.39

4

COLLAR, FR. WHEEL SIDE

44311-MC5-010

Unavailable

5

COLLAR, FR. AXLE DISTANCE

44620-MB0-000

Unavailable

6

WHEEL, FR. (NOT AVAILABLE)

44650-MB0-325

Unavailable

7

RETAINER, GEAR BOX

44680-410-000

$5.80

8

TIRE ASSY., FR. (110/90-18) (61H) (DUNLOP) This part replaces 44710-MB0-671.

44710-MB3-673

Unavailable

8

TIRE ASSY., FR. (110/90-18) (61H) (DUNLOP) This part replaces 44710-MB0-672.

44710-MB3-673

Unavailable

8

TIRE ASSY., FR. (110/90-18) (61H) (DUNLOP)

44710-MB3-673

Unavailable

9

BOX ASSY., SPEEDOMETER GEAR

44800-MB0-013

$115.81

10

GEAR, SPEEDOMETER

44806-MB0-003

$38.85

11

WASHER, SPEEDOMETER GEAR

44809-402-000

$2.34

12

SHIM, DAMPING

45128-ME2-003

$4.13

13

DISK, R. FR. BRAKE

45251-MJ1-670

Unavailable

14

DISK, L. FR. BRAKE

45351-MJ1-670

Unavailable

15

BOLT, FR. DISK (8X57) This part replaces 90105-ME2-000.

90106-MF2-010

$13.25

15

BOLT, FR. DISK (8X57)

90106-MF2-010

$13.25

16

DUST SEAL (22X42X7)

91252-MC7-003

$7.46

17

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

18

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36
