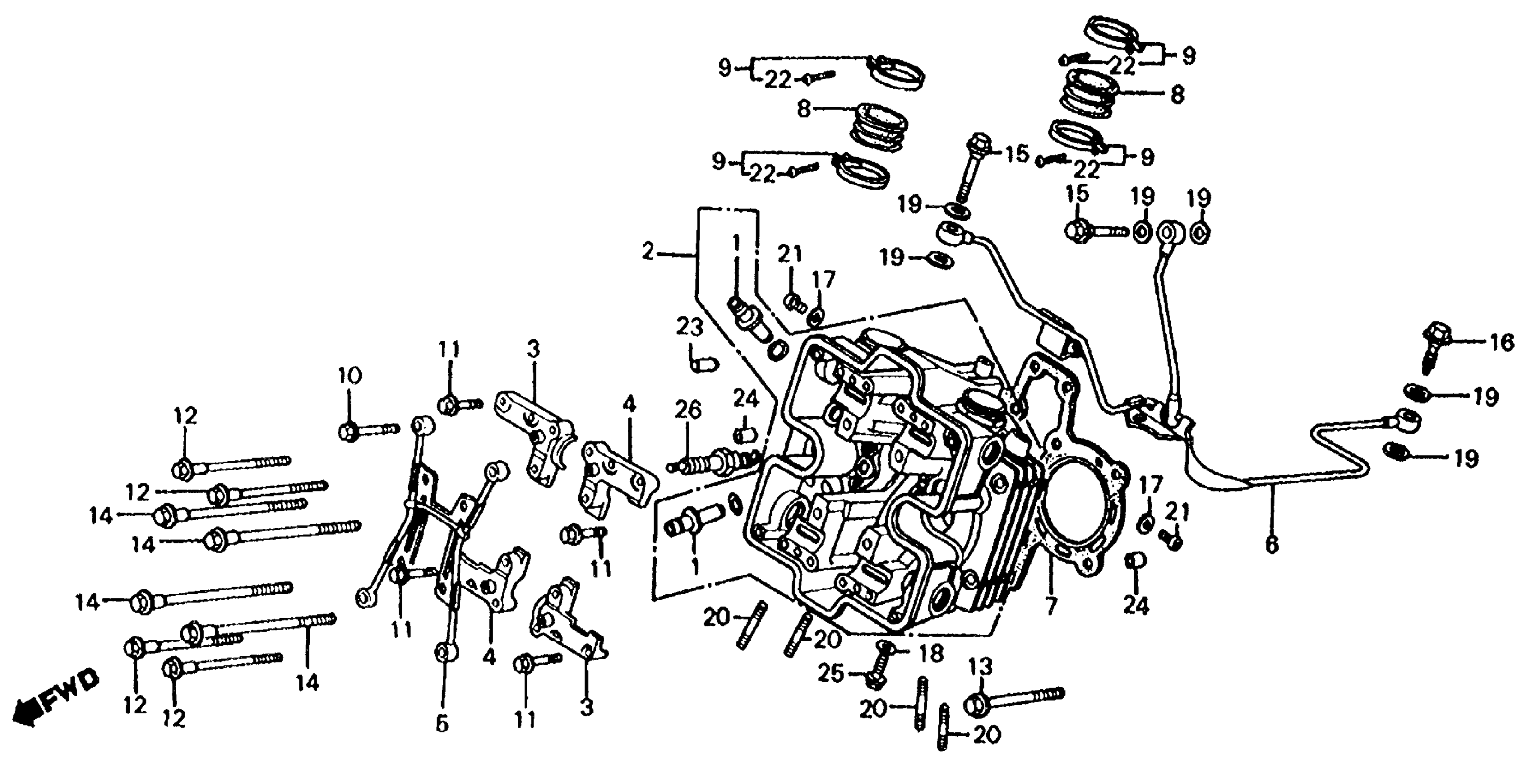

Honda VF700SA (85) SABRE, JPN, VIN# JH2RC220-FM100001 TO JH2RC220-FM102800 FRONT CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, VALVE (OS) This part replaces 12204-MB0-405.

12204-MS2-305

Unavailable

1

GUIDE, VALVE (OS)

12204-MS2-305

Unavailable

2

CYLINDER HEAD, FR. This part replaces 12210-MB0-772.

12210-MB0-775

Unavailable

2

CYLINDER HEAD, FR. This part replaces 12210-MB0-773.

12210-MB0-775

Unavailable

2

CYLINDER HEAD, FR. This part replaces 12210-MB0-774.

12210-MB0-775

Unavailable

2

CYLINDER HEAD, FR.

12210-MB0-775

Unavailable

3

HOLDER A, CAMSHAFT This part replaces 12211-MB0-772.

12211-MB0-773

Unavailable

3

HOLDER A, CAMSHAFT

12211-MB0-773

Unavailable

4

HOLDER B, CAMSHAFT

12212-MB0-773

Unavailable

5

PIPE A, OIL PASSAGE (NOT AVAILABLE) | Use from Engine SN 2103514

12230-MB0-010

Unavailable

5

PIPE A, OIL PASSAGE (NOT AVAILABLE) | Use up to Engine SN 2103513 This part replaces 12230-MB0-000.

12230-MB0-010

Unavailable

6

PIPE B, OIL PASSAGE (NOT AVAILABLE) This part replaces 12240-MB0-870.

12240-MN0-000

Unavailable

6

PIPE B, OIL PASSAGE (NOT AVAILABLE) This part replaces 12240-MB0-871.

12240-MN0-000

Unavailable

7

GASKET, CYLINDER HEAD This part replaces 12251-MB0-003.

12251-MN0-505

Unavailable

7

GASKET, CYLINDER HEAD This part replaces 12251-MB0-306.

12251-MN0-505

Unavailable

7

GASKET, CYLINDER HEAD

12251-MN0-505

Unavailable

8

INSULATOR, CARBURETOR

16211-MB0-000

$33.34

9

BAND, INSULATOR This part replaces 16219-MB0-770.

16223-KS5-000

$14.20

9

BAND, INSULATOR

16223-KS5-000

$14.20

10

BOLT, FLANGE (6X52) This part replaces 90001-MB0-000.

90009-HA0-000

$4.24

11

BOLT, FLANGE (6X54)

90003-MB0-770

Unavailable

12

BOLT, UBS (8X151)

90006-MB0-010

Unavailable

13

BOLT, UBS (9X93)

90011-MB0-000

$10.11

13

BOLT, UBS (9X93) This part replaces 90011-MB0-770.

90011-MB0-000

$10.11

14

BOLT, UBS (9X175) This part replaces 90012-MB0-013.

90012-MB6-003

Unavailable

14

BOLT, UBS (9X175)

90012-MB6-003

Unavailable

15

BOLT, OIL

90025-MB0-771

Unavailable

16

BOLT, OIL CONTROL

90045-MB2-000

Unavailable

17

WASHER, SEALING (5MM)

90452-323-000

$1.59

18

WASHER, SEALING (6.2X12X1.2) This part replaces 90461-357-000.

90463-KRM-840

$1.49

19

WASHER, OIL BOLT

90545-300-000

$3.99

20

BOLT, STUD (6X50) This part replaces 90063-235-000.

92700-06050-0E

$1.54

20

BOLT, STUD (6X50) This part replaces 92700-06045-0E.

92700-06050-0E

$1.54

20

BOLT, STUD (6X50)

92700-06050-0E

$1.54

21

SCREW, PAN (5X8)

93500-05008-0G

$1.49

22

SCREW, PAN (5X28)

93500-05028-0G

$1.49

23

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

24

PIN A, DOWEL (12X20)

94301-12200

$2.29

25

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

25

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

26

SPARK PLUG (DPR7EA-9) (NGK) | (Optional).

98069-57916

$2.62

26

SPARK PLUG (X22EPR-U9) (DENSO) | (Optional).

98069-57926

$2.54

26

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

26

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

26

SPARK PLUG (DPR9EA-9) (NGK) | (Optional).

98069-59916

$2.62

26

SPARK PLUG (X27EPR-U9) (DENSO) | (Optional).

98069-59926

$2.54
