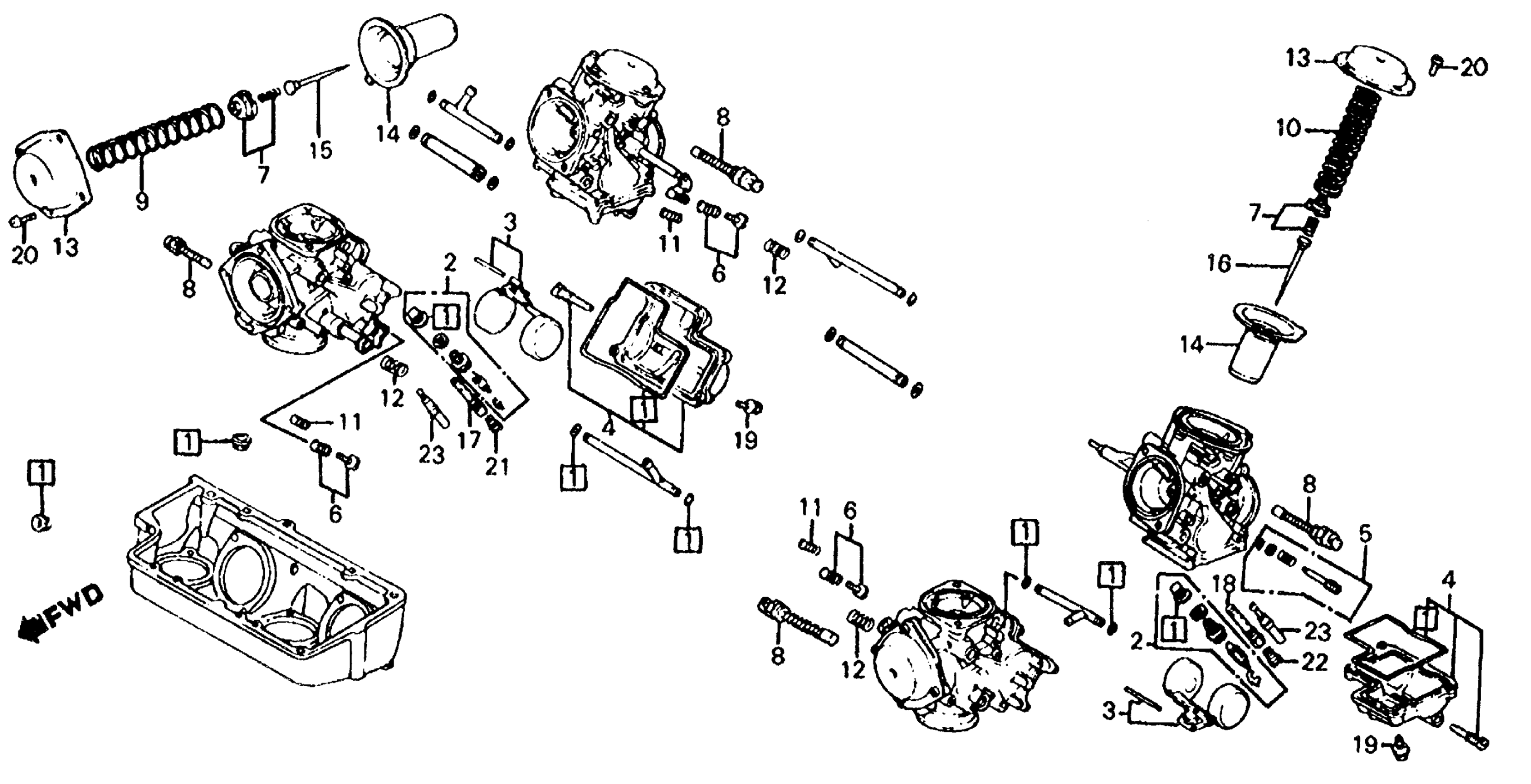

Honda VF700SA (85) SABRE, JPN, VIN# JH2RC220-FM100001 TO JH2RC220-FM102800 CARBURETOR COMPONENT Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-MB0-671.

16010-MB0-505

$54.18

1

GASKET SET This part replaces 16010-MB0-871.

16010-MB0-505

$54.18

2

VALVE SET, FLOAT

16011-MB1-671

$73.88

3

FLOAT SET

16013-MB0-671

$49.46

4

CHAMBER SET, FLOAT

16015-MAH-750

$119.97

4

CHAMBER SET, FLOAT This part replaces 16015-MB0-671.

16015-MAH-750

$119.97

4

CHAMBER SET, FLOAT This part replaces 16015-MB0-871.

16015-MAH-750

$119.97

4

CHAMBER SET, FLOAT This part replaces 16015-MN2-631.

16015-MAH-750

$119.97

5

SCREW SET This part replaces 16016-MF5-671.

16016-MAH-670

$23.60

6

SCREW SET C

16029-MB0-671

$22.55

7

PLATE SET, VALVE This part replaces 16037-MB0-671.

16037-ME5-671

$26.88

8

VALVE SET, STARTER

16046-MA6-003

$70.76

9

SPRING, FR. VACUUM PISTON

16050-MB0-671

Unavailable

10

SPRING, RR. VACUUM PISTON

16051-MB0-671

Unavailable

11

SPRING

16052-MB0-671

$5.81

12

SPRING

16053-MB0-671

$9.25

13

TOP This part replaces 16107-KE8-004.

16108-MJ1-671

$36.38

13

TOP This part replaces 16107-MB0-671.

16108-MJ1-671

$36.38

13

TOP This part replaces 16108-ME5-671.

16108-MJ1-671

$36.38

13

TOP

16108-MJ1-671

$36.38

14

PISTON, VACUUM

16111-MB0-871

Unavailable

15

NEEDLE, RR. JET (NOT AVAILABLE) This part replaces 16131-MB0-701.

16151-MB0-771

Unavailable

15

NEEDLE, RR. JET (NOT AVAILABLE)

16151-MB0-771

Unavailable

16

NEEDLE, RR. JET (NOT AVAILABLE) This part replaces 16131-MB0-701.

16151-MB0-771

Unavailable

16

NEEDLE, RR. JET (NOT AVAILABLE) This part replaces 16131-MB0-871.

16151-MB0-771

Unavailable

16

NEEDLE, RR. JET (NOT AVAILABLE) This part replaces 16131-MB3-881.

16151-MB0-771

Unavailable

16

NEEDLE, RR. JET (NOT AVAILABLE)

16151-MB0-771

Unavailable

16

NEEDLE, RR. JET (NOT AVAILABLE) This part replaces 16151-MB0-881.

16151-MB0-771

Unavailable

17

HOLDER, NEEDLE JET

16165-MB0-871

Unavailable

18

HOLDER, NEEDLE JET

16167-MB0-871

Unavailable

19

SCREW, PAN (4X10)

93500-04010-0A

$0.83

20

SCREW-WASHER (4X16)

93892-04016-00

$0.48

21

JET, MAIN (#122) This part replaces 99101-GHB-1220.

99101-HN5-1220

$8.20

21

JET, MAIN (#122) This part replaces 99101-393-1220.

99101-HN5-1220

$8.20

22

JET (#130) This part replaces 99101-GHB-1300.

99101-MEG-1300

$9.67

22

JET (#130) This part replaces 99101-393-1300.

99101-MEG-1300

$9.67

22

JET (#130) This part replaces 99102-393-1300.

99101-MEG-1300

$9.67

23

JET, SLOW (#40) This part replaces 99103-437-0400.

99103-MAL-0400

$10.12
