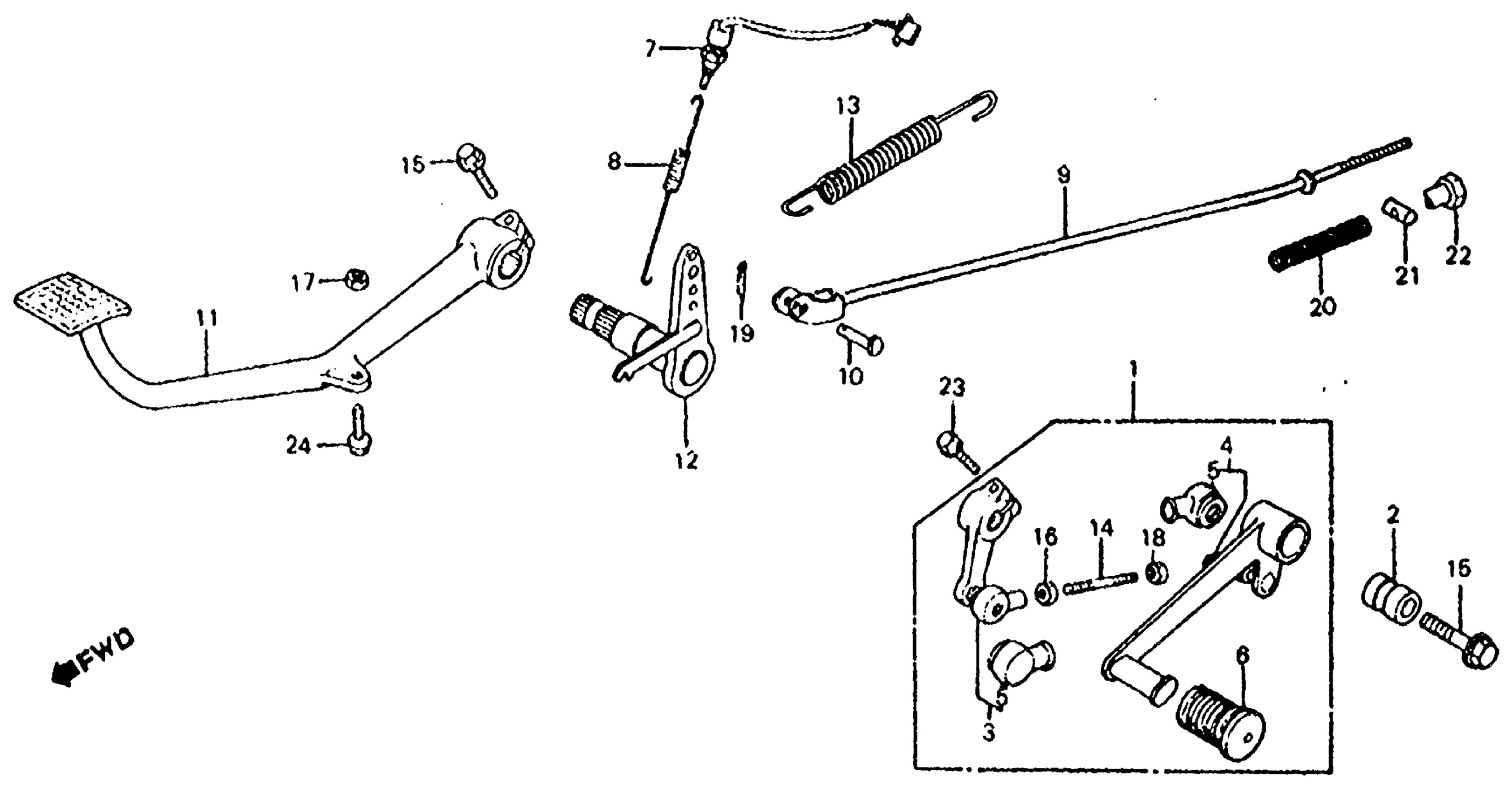

Honda VF700SA (85) SABRE, JPN, VIN# JH2RC220-FM100001 TO JH2RC220-FM102800 BRAKE PEDAL + SHIFT PEDAL Diagram

#

Description
Price

1

PEDAL ASSY., GEARSHIFT (NOT AVAILABLE) This part replaces 24700-MB0-700.

24700-MB0-000

Unavailable

2

COLLAR, GEARSHIFT PEDAL PIVOT

24705-MB0-000

$12.16

2

COLLAR, GEARSHIFT PEDAL PIVOT

24705-MT6-000

Unavailable

3

ARM, GEARSHIFT

24710-MB0-700

Unavailable

4

PEDAL, GEARSHIFT (NOT AVAILABLE)

24720-MB0-000

Unavailable

5

COVER, DUST

24724-422-000

$6.68

6

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

7

SWITCH ASSY., RR. STOP This part replaces 35350-MB0-000.

35350-ME9-405

Unavailable

7

SWITCH ASSY., RR. STOP

35350-ME9-405

Unavailable

7

SWITCH ASSY., RR. STOP This part replaces 35350-ME9-770.

35350-ME9-405

Unavailable

8

SPRING, STOP SWITCH

35357-KE4-730

Unavailable

8

SPRING, STOP SWITCH This part replaces 35357-425-610.

35357-KE4-730

Unavailable

9

ROD, RR. BRAKE

43451-MB0-950

Unavailable

10

PIN B, JOINT (NOT AVAILABLE)

43452-KB4-000

Unavailable

11

PEDAL, RR. BRAKE (NOT AVAILABLE)

46500-MB0-000

Unavailable

12

SPINDLE, RR. BRAKE (NOT AVAILABLE)

46510-MB0-700

Unavailable

13

SPRING, BRAKE PEDAL

46514-MB0-000

$9.38

14

BOLT, TIE ROD

90065-MB0-000

Unavailable

15

BOLT, SPECIAL FLANGE (8X28)

90103-MB0-000

$4.94

16

NUT, GOVERNOR ARM FIXING

90201-700-000

$1.49

17

NUT, HEX. (6MM)

94002-06000-0S

$1.49

18

NUT, HEX. (6MM)

94002-06020-0S

$1.49

19

PIN, COTTER (1.6X12)

94201-16120

$1.49

20

SPRING A, BRAKE ROD

95014-73100

$1.49

21

JOINT, BRAKE ARM

95015-32001

$1.49

22

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

23

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

23

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

24

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

24

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
