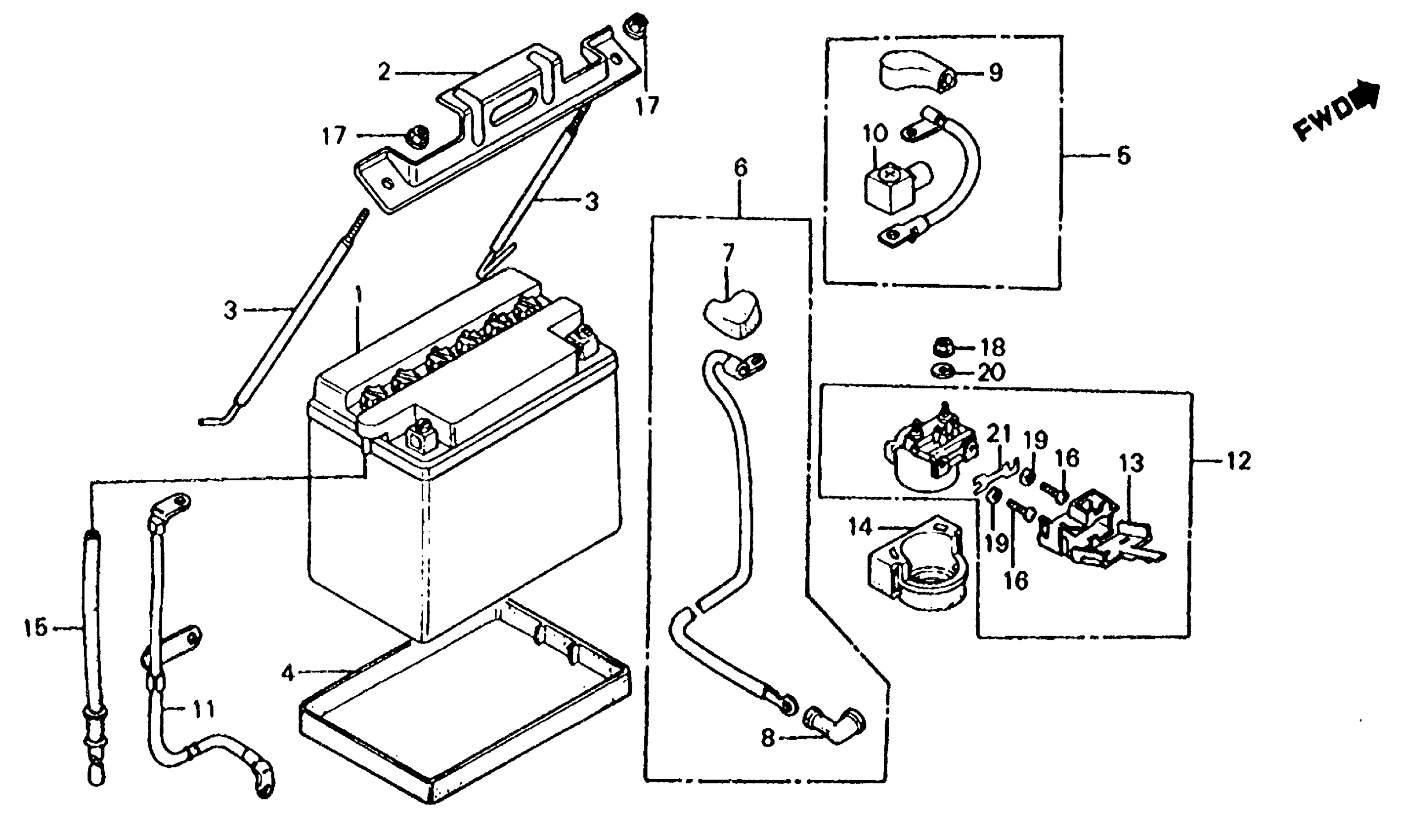

Honda VF700SA (85) SABRE, JPN, VIN# JH2RC220-FM100001 TO JH2RC220-FM102800 BATTERY Diagram

#

Description
Price

1

BATTERY (12N14-3A) This part replaces 31500-415-601.

31500-425-672AH

$65.05

1

BATTERY (12N14-3A) This part replaces 31500-415-671.

31500-425-672AH

$65.05

1

BATTERY (12N14-3A) This part replaces 31500-425-671.

31500-425-672AH

$65.05

1

BATTERY (12N14-3A) This part replaces 31500-425-672.

31500-425-672AH

$65.05

1

BATTERY (12N14-3A) This part replaces 31500-425-677.

31500-425-672AH

$65.05

1

BATTERY (12N14-3A) This part replaces 31500-461-771.

31500-425-672AH

$65.05

1

BATTERY (12N14-3A) This part replaces 31500-461-772.

31500-425-672AH

$65.05

2

PLATE, BATTERY SETTING (NOT AVAILABLE)

31512-MB0-000

Unavailable

3

BOLT, BATTERY SETTING

31513-MB0-000

Unavailable

4

RUBBER, BATTERY (NOT AVAILABLE)

31521-MB0-000

Unavailable

5

CABLE This part replaces 32401-MB0-000.

32401-MB0-890

Unavailable

6

CABLE, STARTER MOTOR This part replaces 32402-MB0-700.

32402-MB0-890

Unavailable

6

CABLE, STARTER MOTOR

32402-MB0-890

Unavailable

7

COVER, MAGNETIC SWITCH TERMINAL

32411-MB0-000

Unavailable

8

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

8

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

9

COVER, MAGNETIC SWITCH TERMINAL

32411-MB0-000

Unavailable

9

COVER, MAGNETIC SWITCH TERMINAL This part replaces 32412-MB0-000.

32411-MB0-000

Unavailable

10

COVER B, TERMINAL This part replaces 32414-MB0-000.

32414-MW3-000

Unavailable

10

COVER B, TERMINAL

32414-MW3-000

Unavailable

11

CABLE, BATTERY GROUND (NOT AVAILABLE)

32601-MB0-700

Unavailable

12

SWITCH ASSY., STARTER MAGNETIC

35850-MB0-007

$131.64

13

COVER, FUSE

35852-MB0-007

Unavailable

14

RUBBER, SHOCK ABSORBER

35856-MB0-007

Unavailable

15

TUBE, BATTERY

50328-MB0-000

Unavailable

16

SCREW, PAN (4X6)

93500-04006-0H

$1.49

16

SCREW, PAN (4X6) This part replaces 93500-04006-1H.

93500-04006-0H

$1.49

17

NUT, FLANGE (5MM)

94050-05080

$1.49

18

NUT, FLANGE (6MM)

94050-06000

$1.49

19

WASHER, SPRING (4MM)

94111-04800

$1.49

20

WASHER, SPRING (6MM)

94111-06800

$1.49

21

FUSE F (30A)

98200-53000

$1.49
