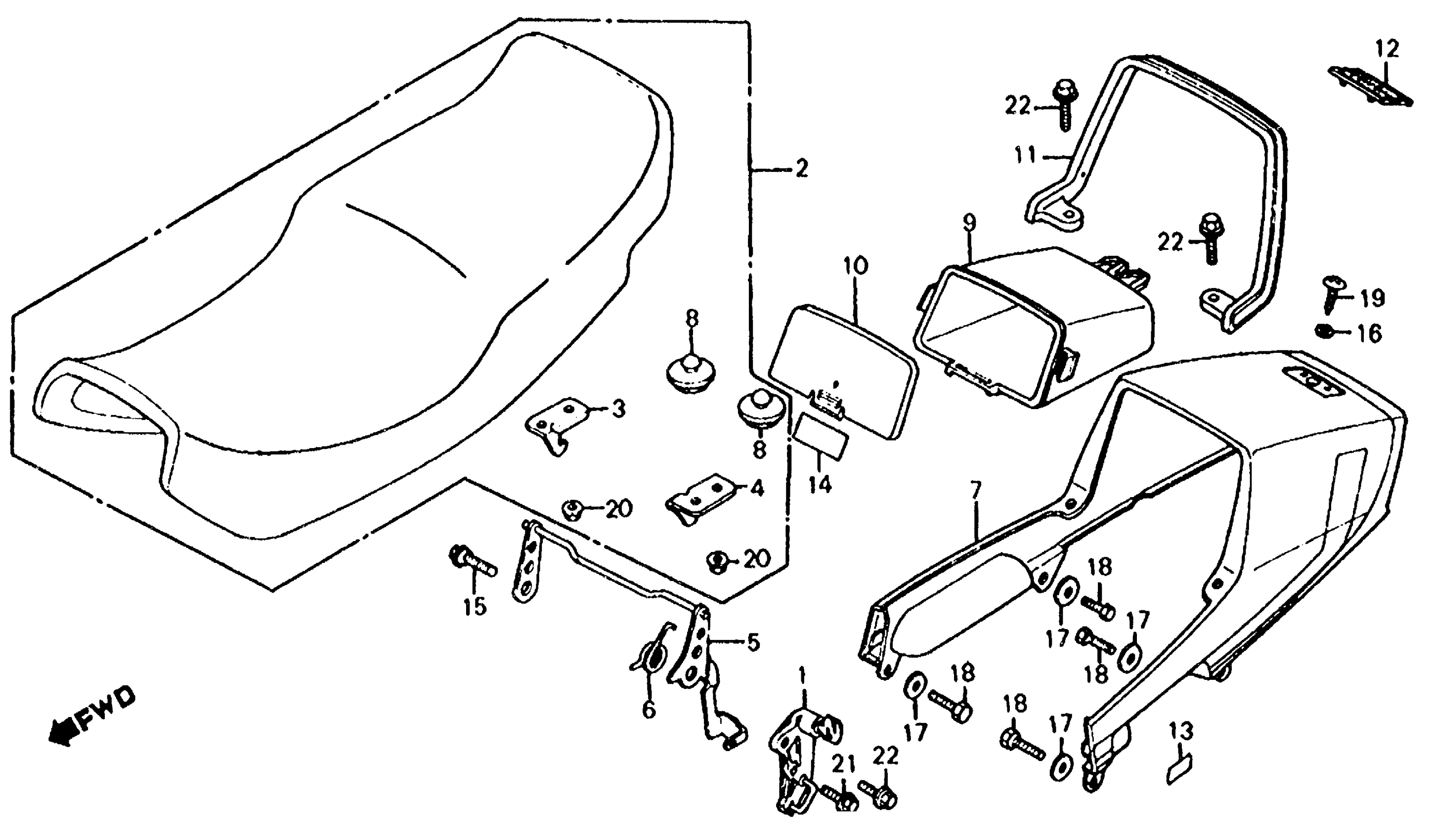

Honda VF700SA (84) SABRE, JPN, VIN# JH2RC220-EM000007 TO JH2RC220-EM005012 SEAT Diagram

#

Description
Price

1

HOLDER, HELMET

50710-MB0-700

Unavailable

2

SEAT ASSY. (NOT AVAILABLE) This part replaces 77100-MB0-950.

77100-MB0-910

Unavailable

3

PLATE, R. SEAT LOCK

77102-MB0-000

Unavailable

4

PLATE, L. SEAT LOCK

77103-MB0-000

Unavailable

5

BAR, SEAT LOCK

77150-MB0-000

Unavailable

6

SPRING, SEAT LOCK (NOT AVAILABLE)

77151-MB0-700

Unavailable

7

COWL SET, RR. *NH1* (TYPE1) (BLACK) (NOT AVAILABLE)

772A0-MB0-950ZA

Unavailable

7

COWL SET, RR. *NH1* (TYPE2) (BLACK)

772A0-MB0-950ZB

Unavailable

8

RUBBER, SEAT STOPPER

77211-MB0-000

$6.72

9

CASE, RR. COWL

77240-MB0-000

Unavailable

10

LID, RR. COWL CASE (NOT AVAILABLE)

77241-MB0-000

Unavailable

11

GRAB RAIL, RR.

77310-MB0-950

Unavailable

12

EMBLEM, RR. COWL (NOT AVAILABLE)

87129-MB0-670

Unavailable

13

LABEL, HELMET HOLDER

87511-323-670

$2.72

14

MARK, ACCESSORIES & LOADING CAUTION (NOT AVAILABLE)

87512-MA4-670

Unavailable

15

BOLT, FLANGE (8X15)

90186-MB0-000

Unavailable

16

WASHER, SPECIAL

90431-MB0-000

Unavailable

17

WASHER (6MM) (NOT AVAILABLE)

90506-634-000

Unavailable

18

BOLT, HEX. (6X16) This part replaces 92000-06016-0H.

92101-06016-0H

$1.49

18

BOLT, HEX. (6X16) This part replaces 92100-06016-0H.

92101-06016-0H

$1.49

18

BOLT, HEX. (6X16)

92101-06016-0H

$1.49

19

SCREW, TAPPING (6X12) (NOT AVAILABLE)

93903-36120

Unavailable

20

NUT, FLANGE (6MM)

94050-06080

$1.49

21

BOLT, FLANGE (6X20) This part replaces 95700-06020-08.

95701-06020-08

$1.49

21

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

22

BOLT, FLANGE (8X25) This part replaces 95700-08025-08.

95701-08025-08

$1.49

22

BOLT, FLANGE (8X25) This part replaces 95700-08025-18.

95701-08025-08

$1.49

22

BOLT, FLANGE (8X25)

95701-08025-08

$1.49
