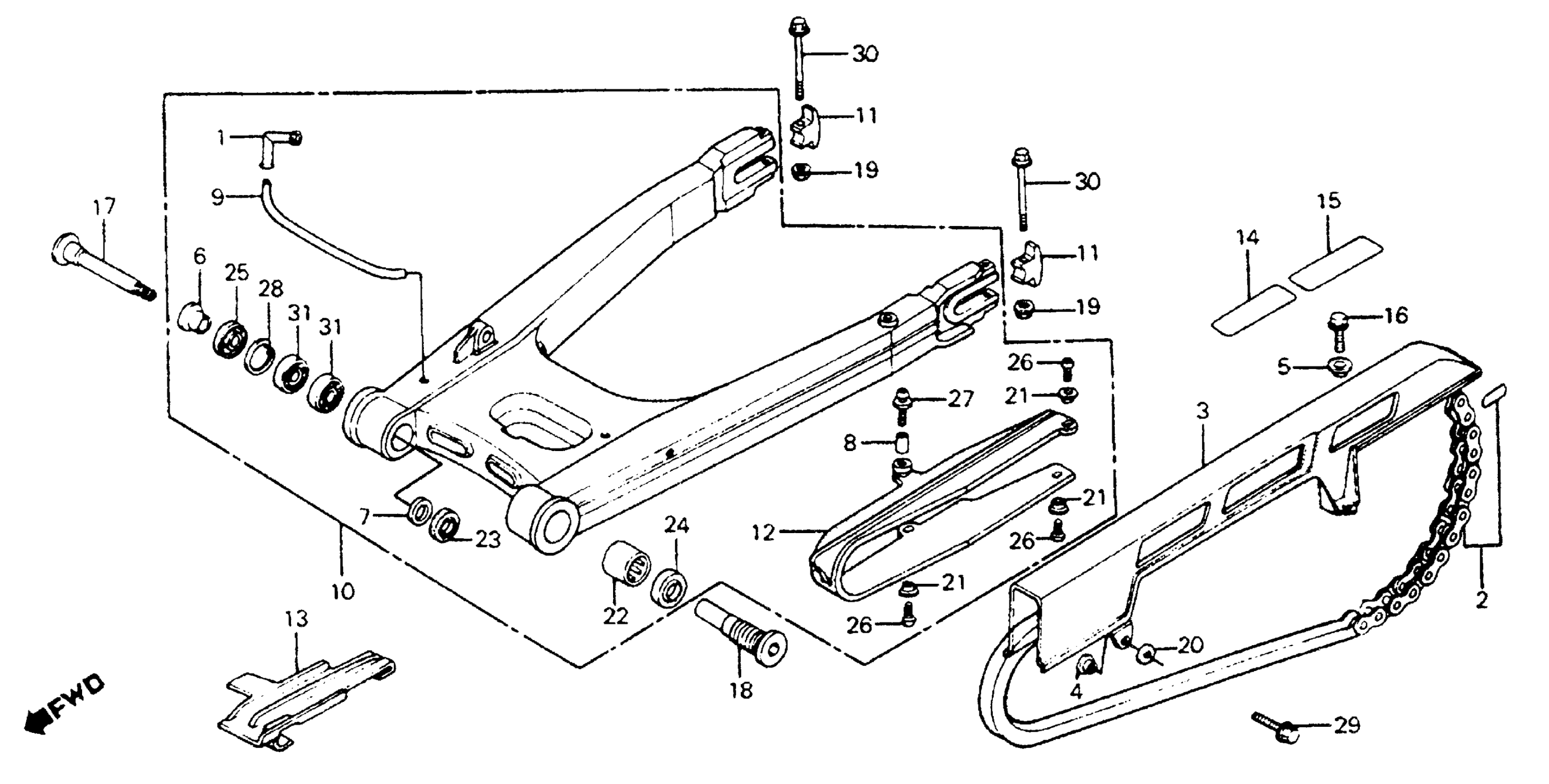

Honda VF700FA (85) INTERCEPTOR, JPN, VIN# JH2RC230-FM100003 TO JH2RC230-FM104561 SWINGARM Diagram

#

Description
Price

1

JOINT, TUBE

19103-463-000

Unavailable

2

CHAIN SET, DRIVE (50V-110LE)

405A3-MB2-670

Unavailable

2

CHAIN SET, DRIVE (50MO-110LE)

405B3-MB2-670

Unavailable

3

CASE, DRIVE CHAIN

40510-MB2-020

Unavailable

4

COLLAR, CHAIN CASE

40512-MB2-000

Unavailable

5

COLLAR, CHAIN CASE

40514-310-000

$6.26

6

COLLAR, SWINGARM PIVOT (NOT AVAILABLE)

52102-MA6-000

Unavailable

7

COLLAR, SWINGARM PIVOT (B)

52102-MB2-000

Unavailable

8

COLLAR, CHAIN SLIDER

52105-MB2-000

Unavailable

9

HOSE, DRAIN

52106-MB2-000

Unavailable

10

SWINGARM ASSY., RR.

52110-MB2-700

Unavailable

11

STOPPER, CHAIN ADJUSTER (NOT AVAILABLE)

52136-MA2-000

Unavailable

12

SLIDER, CHAIN

52170-MB2-010

Unavailable

13

SLIDER, CHAIN (B)

52171-MB2-000

Unavailable

14

LABEL, TIRE CAUTION

87505-MB2-670

Unavailable

15

LABEL, DRIVE CHAIN CAUTION

87507-MB2-670

Unavailable

16

BOLT, FLANGE (6MM)

90111-187-000

$5.59

17

BOLT, R. SWINGARM PIVOT

90121-MB2-000

Unavailable

18

BOLT, L. SWINGARM PIVOT

90122-MB2-000

Unavailable

19

NUT, FLANGE (8MM)

90309-428-731

$3.35

20

WASHER (6MM)

90485-MB2-000

$1.91

21

WASHER, FR. FENDER SETTING

90556-044-000

$3.65

22

BEARING, SWINGARM PIVOT

91071-MB2-701

Unavailable

23

OIL SEAL (24X34X5.5) (NOT AVAILABLE)

91203-148-003

Unavailable

24

DUST SEAL (22X35X7) (ARAI)

91213-MB2-003

$7.46

24

DUST SEAL (22X35X7) (ARAI) This part replaces 91213-MB2-006.

91213-MB2-003

$7.46

25

DUST SEAL (24X40X5.5) (NOT AVAILABLE)

91214-MA6-003

Unavailable

25

DUST SEAL (24X40X5.5) (NOT AVAILABLE) This part replaces 91214-MA6-006.

91214-MA6-003

Unavailable

26

SCREW, PAN (5X12)

93500-05012-0H

$1.49

27

SCREW-WASHER (5X25) This part replaces 93894-05025-17.

93894-05025-07

$1.49

28

CIRCLIP (INNER) (40MM)

94520-40000

$2.19

29

BOLT, FLANGE (6X18) This part replaces 95700-06018-07.

95701-06018-07

$1.55

29

BOLT, FLANGE (6X18)

95701-06018-07

$1.55

30

BOLT, FLANGE (8X65) This part replaces 95700-08065-00.

95701-08065-00

$1.72

30

BOLT, FLANGE (8X65)

95701-08065-00

$1.72

30

BOLT, FLANGE (8X65) This part replaces 95900-08065-00.

95701-08065-00

$1.72

31

BEARING, RADIAL BALL (6203)

96100-62030-10

Unavailable
