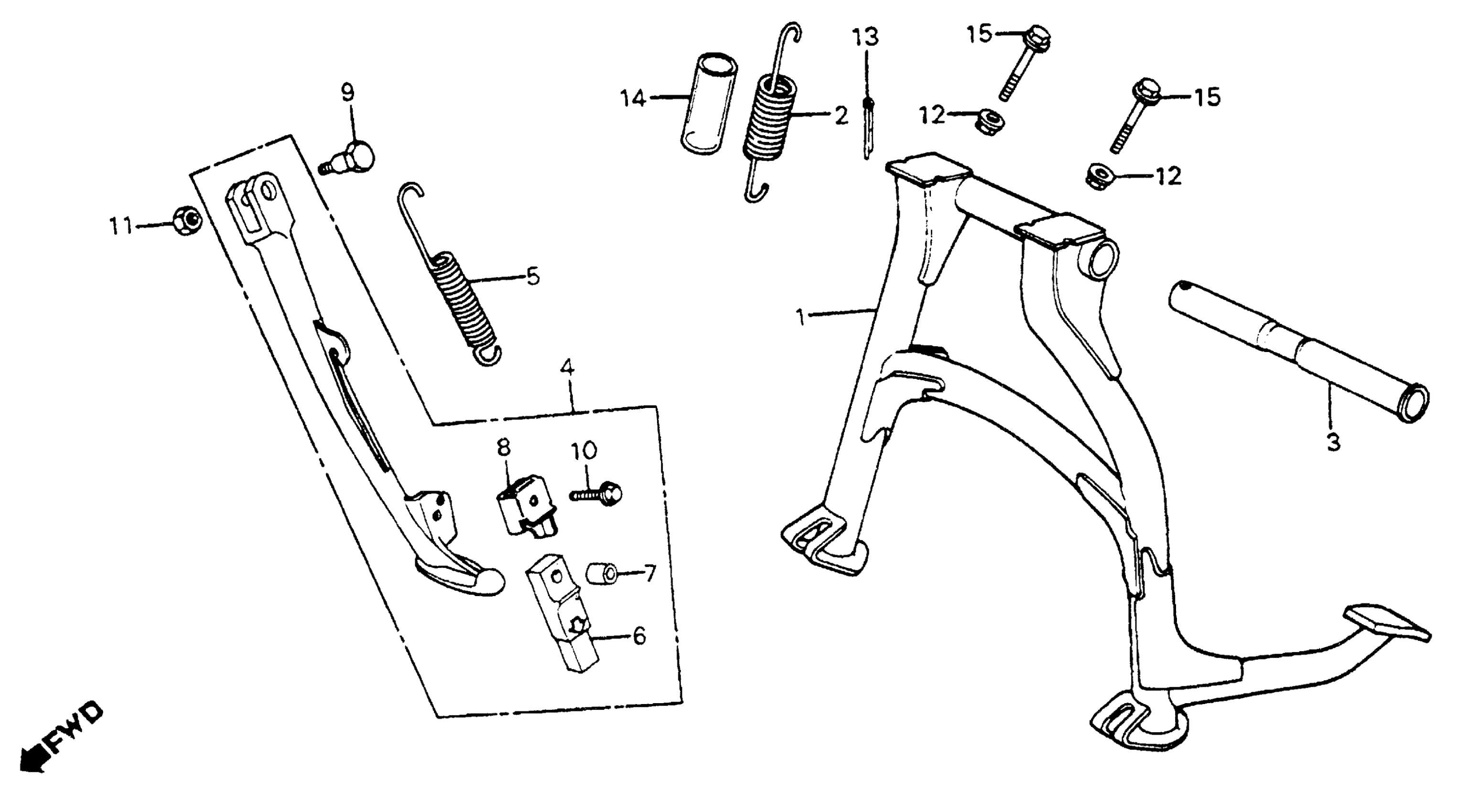

Honda VF700FA (85) INTERCEPTOR, JPN, VIN# JH2RC230-FM100003 TO JH2RC230-FM104561 STAND Diagram

STAND, MAIN (NOT AVAILABLE)

50500-MB2-000

Unavailable

SPRING, MAIN STAND (NOT AVAILABLE)

50522-MB2-000

Unavailable

PIPE, MAIN STAND PIVOT

50526-MB2-000

Unavailable

BAR ASSY., SIDE STAND (NOT AVAILABLE)

50540-MB2-020

Unavailable

SPRING, SIDE STAND

50541-MB0-000

$11.75

RUBBER, STAND

50548-356-700

$10.50

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

BRACKET, SIDE STAND RUBBER

50574-MB0-000

Unavailable

BOLT, SIDE STAND PIVOT

90108-MB0-000

Unavailable

BOLT, SIDE STAND RUBBER

90115-MB0-000

Unavailable

NUT, HEX. (10MM)

94002-10070-0S

$3.17

NUT, FLANGE (6MM)

94050-06080

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, COTTER (2.5MM)

94201-25300

$1.49

BULK HOSE, VINYL (17.5X20.5X1000) (17.5X20.5X70)

95003-55001-10M

Unavailable

BOLT, FLANGE (6X40) This part replaces 95700-06040-08.

95701-06040-08

$1.80

BOLT, FLANGE (6X40)

95701-06040-08

$1.80
