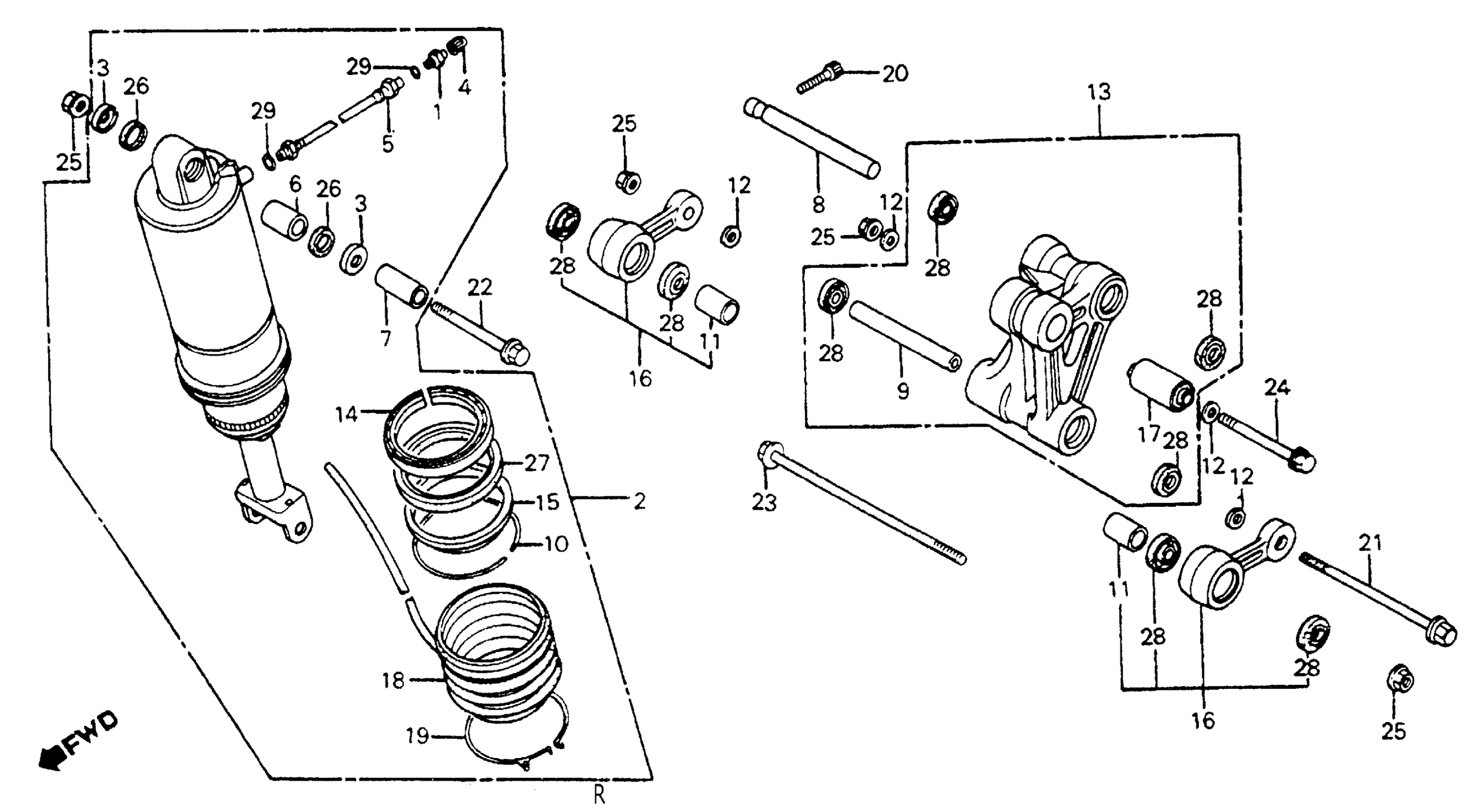

Honda VF700FA (85) INTERCEPTOR, JPN, VIN# JH2RC230-FM100003 TO JH2RC230-FM104561 SHOCK ABSORBER Diagram

#

Description
Price

1

VALVE, AIR (SHOWA)

51456-469-013

$33.69

2

CUSHION ASSY., RR.

52400-MB2-701

Unavailable

2

CUSHION ASSY., RR. This part replaces 52400-MB2-771.

52400-MB2-701

Unavailable

3

CAP (SHOWA) (NOT AVAILABLE)

52406-MA1-731

Unavailable

4

CAP, AIR VALVE (SHOWA)

52425-169-003

$4.94

5

HOSE, RR. SHOCK ABSORBER

52432-MB2-701

Unavailable

6

METAL, BUSH (NOT AVAILABLE)

52452-MA1-731

Unavailable

7

COLLAR, BUSH (NOT AVAILABLE)

52453-MB2-003

Unavailable

8

SHAFT, CUSHION ARM (UPPER)

52462-MB2-700

Unavailable

9

COLLAR, CONNECTING ROD (LOWER)

52463-MB2-700

Unavailable

10

RING B, STOPPER

52463-MC7-013

Unavailable

11

COLLAR, CONNECTING ROD

52464-MB2-700

Unavailable

12

WASHER, THRUST

52466-MB2-000

Unavailable

13

ARM ASSY., SHOCK ABSORBER

52470-MB2-700

Unavailable

14

CASE, GUIDE

52472-MC7-003

Unavailable

15

RING, BACK-UP

52477-MC7-013

Unavailable

16

ROD ASSY., SHOCK CONNECTING

52480-MB2-700

Unavailable

17

BUSH, SHOCK ABSORBER (NOT AVAILABLE)

52485-MA2-003

Unavailable

18

BOOT, RR. SHOCK (NOT AVAILABLE)

52611-MB2-003

Unavailable

19

BAND, BOOT

52612-MA2-003

$5.98

20

BOLT, SOCKET

90116-391-670

Unavailable

21

BOLT, FLANGE (10X123)

90181-MB2-000

Unavailable

22

BOLT, FLANGE (10X66)

90182-MB2-003

$9.21

23

BOLT, FLANGE (10X159)

90184-MB2-701

Unavailable

24

BOLT D, FLANGE (NOT AVAILABLE)

90189-MA2-003

Unavailable

25

NUT, AXLE (10MM)

90304-GA6-003

$2.89

26

DUST SEAL (SHOWA)

91254-MA1-731

Unavailable

27

OIL SEAL (65X80X10.5)

91257-MC7-003

Unavailable

28

DUST SEAL, CONNECTING ROD PIVOT

91262-MB2-005

$3.83

29

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

29

O-RING (5.8X1.9)

91305-323-000

$2.92

29

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67
