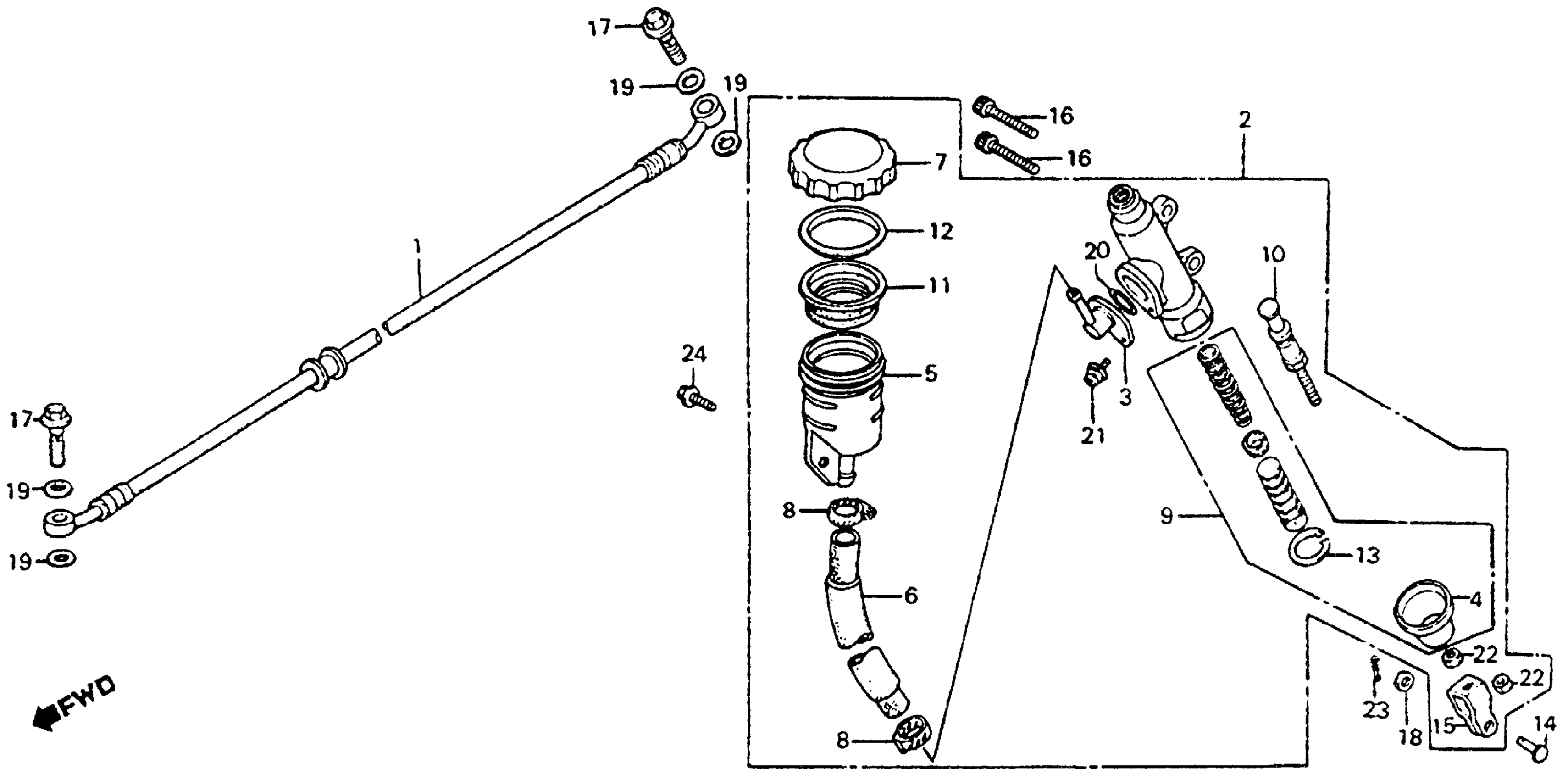

Honda VF700FA (85) INTERCEPTOR, JPN, VIN# JH2RC230-FM100003 TO JH2RC230-FM104561 REAR BRAKE MASTER + CYLINDER Diagram

HOSE, RR. BRAKE (NOT AVAILABLE)

43310-MB2-013

Unavailable

MASTER CYLINDER ASSY., RR. BRAKE (NOT AVAILABLE)

43500-MB2-672

Unavailable

CONNECTOR, MASTER CYLINDER

43503-MB2-006

$12.02

BOOT

43504-MB2-006

$10.04

CUP, MASTER CYLINDER OIL

43511-443-761

Unavailable

HOSE, MASTER CYLINDER OIL

43512-438-026

Unavailable

CAP, OIL CUP | Use up to Frame SN FM103955

43510-MB4-671

Unavailable

CAP, OIL CUP | Use from Frame SN FM103956

43513-MB4-672

Unavailable

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$12.27

PISTON SET, MASTER CYLINDER (NISSIN) This part replaces 43520-MB2-305.

43520-MB2-315

$46.51

ROD, PUSH

43530-MB2-006

$34.74

DIAPHRAGM

45520-300-000

$9.05

PLATE, DIAPHRAGM | Use up to Frame SN FM103955 This part replaces 45521-300-010.

45521-MJ6-006

$4.06

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

PLATE, DIAPHRAGM | Use up to Frame SN FM103955

45521-MJ6-006

$4.06

CIRCLIP, MASTER CYLINDER

46182-500-013

$4.90

PIN, BRAKE ROD

46503-371-000

Unavailable

JOINT, BRAKE ROD

46504-MB2-006

Unavailable

BOLT, SOCKET (6X22)

90115-MB2-000

Unavailable

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

BOLT, OIL (10X22)

90145-KM3-751

$11.02

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$11.02

WASHER (7X12)

90501-310-000

$1.74

WASHER, OIL BOLT

90545-300-000

$3.99

O-RING (14.8X2.4)

91212-422-006

$2.56

SCREW-WASHER (4X12)

93893-04012-08

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

PIN, COTTER (1.6X25)

94201-16250

$1.49

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

BOLT, FLANGE (6X14)

95701-06014-00

$1.49
