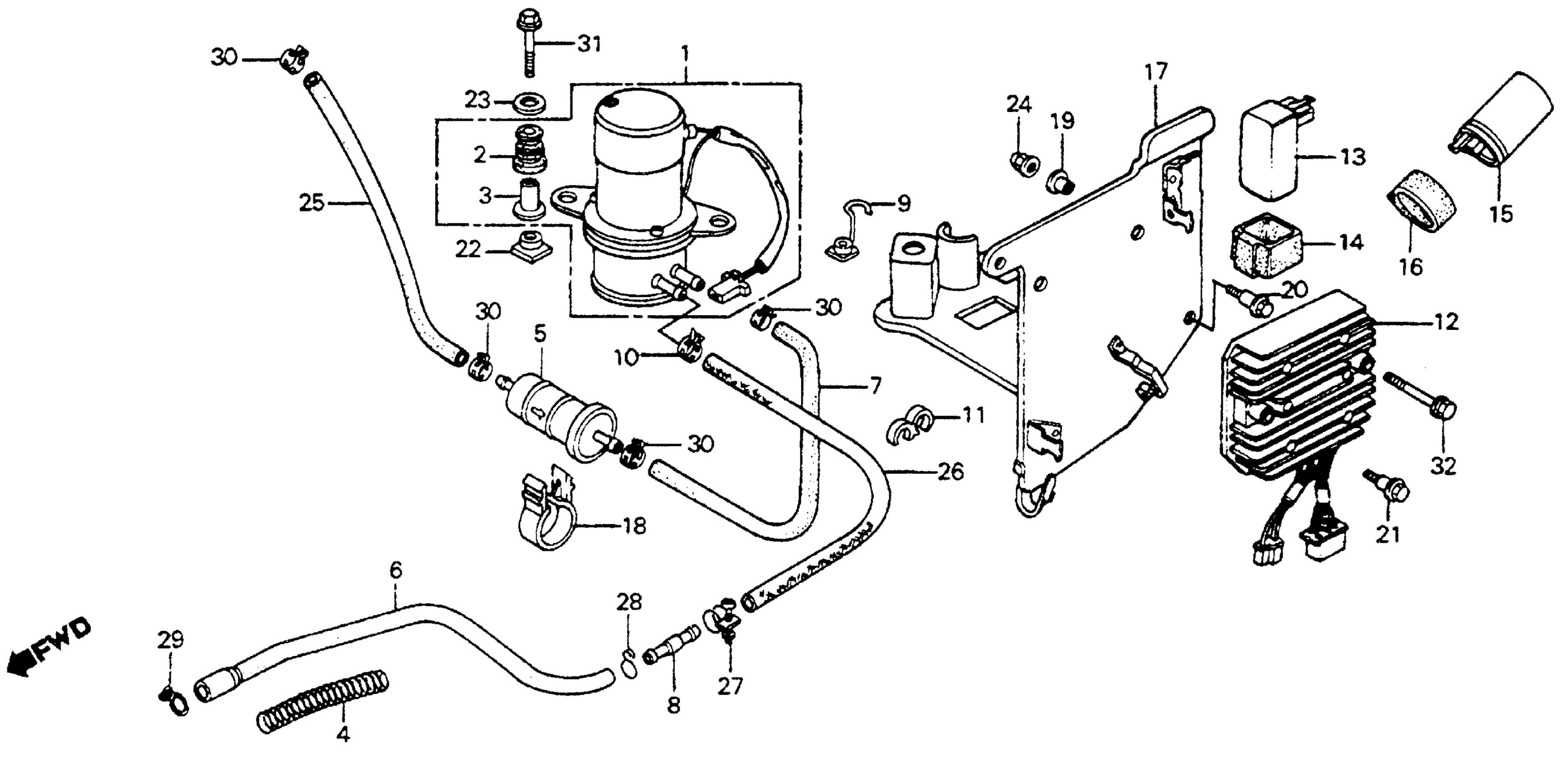

Honda VF700FA (85) INTERCEPTOR, JPN, VIN# JH2RC230-FM100003 TO JH2RC230-FM104561 FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY., FUEL

16700-MB1-025

Unavailable

2

RUBBER, FUEL PUMP SETTING (NOT AVAILABLE)

16711-605-300

Unavailable

3

COLLAR, FUEL PUMP DISTANCE

16712-MB1-000

Unavailable

4

SPRING, FUEL TUBE COVER (NOT AVAILABLE)

16715-MB1-700

Unavailable

5

FILTER, FUEL

16900-371-004

$30.23

6

TUBE, FUEL (7.3X235) (NOT AVAILABLE)

16956-MB2-000

Unavailable

7

TUBE, FUEL (NOT AVAILABLE)

16958-MB2-000

Unavailable

8

JOINT, FUEL TUBE (NOT AVAILABLE)

16959-MB1-000

Unavailable

9

HOOK, FUEL HOSE

16961-MB2-000

Unavailable

10

CLIP, FUEL HOSE

16969-MB1-000

$5.10

11

CLAMP, BREATHER TUBE

17359-MB0-000

Unavailable

12

RECTIFIER ASSY., REGULATE This part replaces 31600-MB0-008.

31600-MB3-670

Unavailable

12

RECTIFIER ASSY., REGULATE

31600-MB3-670

Unavailable

13

RELAY, FUEL CUT

36100-MB1-701

$90.87

14

SUSPENSION, FUEL CUT RELAY

36101-MB1-000

$6.54

15

RELAY, TURN SIGNAL (TATEISHI)

38301-MF8-771

$103.03

15

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-MF8-773.

38301-KK9-952

$67.94

15

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-MG9-681.

38301-KK9-952

$67.94

16

SUSPENSION, TURN SIGNAL RELAY

38306-KJ6-740

$7.49

17

PANEL, ELECTRIC

50325-MB2-771

Unavailable

18

HOLDER, STRAINER

50330-MB2-000

Unavailable

19

COLLAR, SETTING

61104-422-000

$6.91

20

BOLT, FLANGE (6MM)

90111-162-000

$2.89

21

BOLT, FLANGE (6X20)

90113-449-000

$3.19

22

NUT, SPECIAL (6MM) This part replaces 90304-MB2-000.

90302-MB1-000

$6.08

23

WASHER (6MM) (NOT AVAILABLE)

90506-634-000

Unavailable

24

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

24

NUT, CAP (6MM)

94021-06020

$1.73

24

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

24

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

25

*95001-55003-50M This part replaces 95001-55008-20M.

95001-55008-50M

Unavailable

26

*95001-55003-50M This part replaces 95001-55008-20M.

95001-55008-50M

Unavailable

27

CLIP, TUBE (A12)

95002-01120

$2.75

28

CLIP, TUBE (B10)

95002-02100

$1.90

29

CLIP, TUBE (B12)

95002-02120

$2.00

30

CLIP, TUBE (D10)

95002-41000-08

$2.41

31

BOLT, FLANGE (6X32) This part replaces 95700-06032-08.

95701-06032-08

$1.89

31

BOLT, FLANGE (6X32)

95701-06032-08

$1.89

32

BOLT, FLANGE (6X40) This part replaces 95700-06040-08.

95701-06040-08

$1.80

32

BOLT, FLANGE (6X40)

95701-06040-08

$1.80
