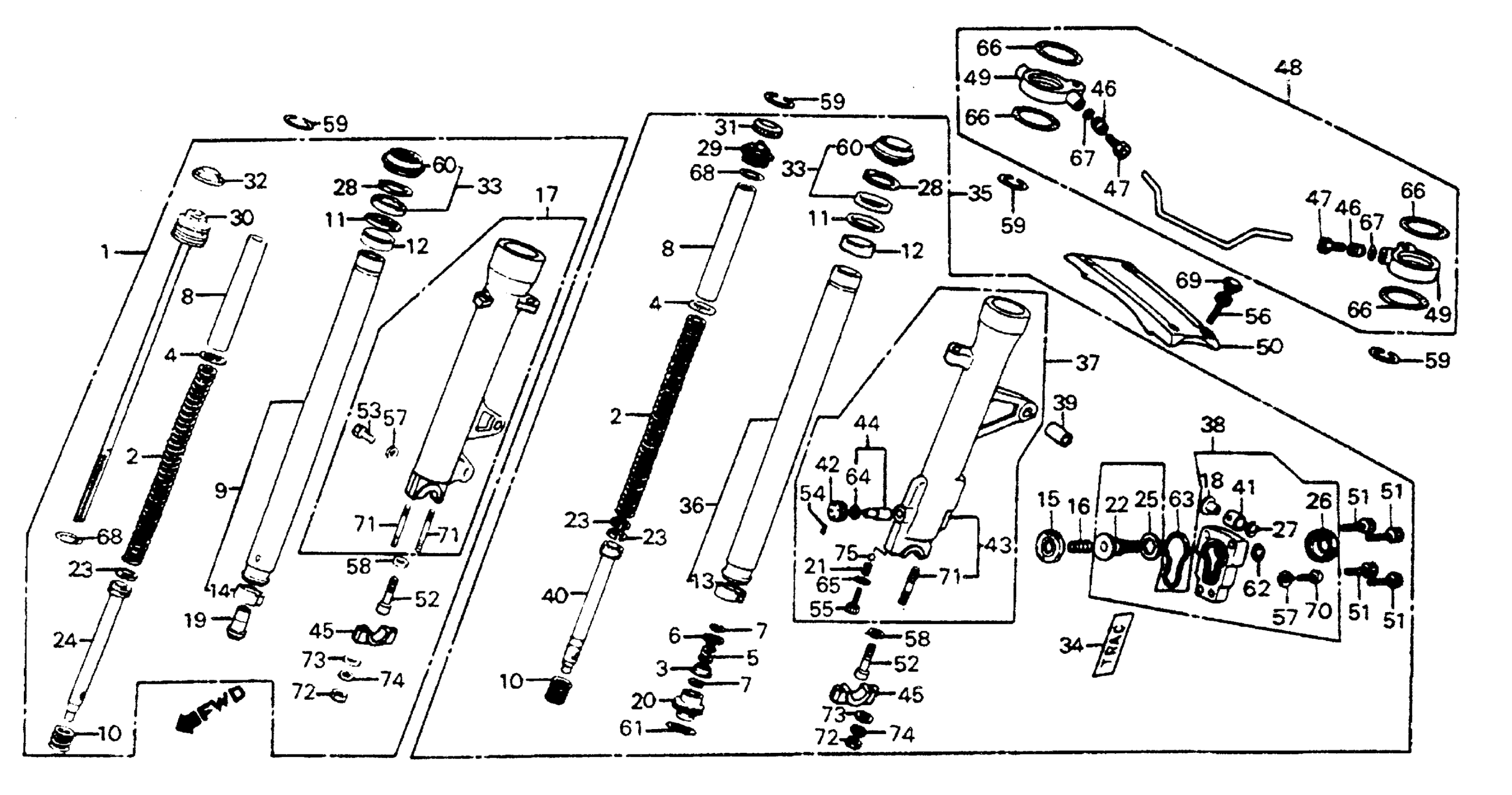

Honda VF700FA (85) INTERCEPTOR, JPN, VIN# JH2RC230-FM100003 TO JH2RC230-FM104561 FRONT SHOCK ABSORBER 85 Diagram

#

Description
Price

1

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-MB2-901

Unavailable

2

SPRING, FR. FORK (NOT AVAILABLE)

51401-MB2-671

Unavailable

3

VALVE, OIL LOCK

51403-MB2-003

Unavailable

4

PLATE, SPRING JOINT

51403-ME5-003

Unavailable

5

SPRING, OIL LOCK VALVE (NOT AVAILABLE)

51404-MA6-003

Unavailable

6

SEAT, SPRING

51405-MA6-003

Unavailable

7

RING, STOPPER

51405-MC7-003

$2.39

8

COLLAR, SPRING (NOT AVAILABLE)

51406-ME5-003

Unavailable

9

PIPE, R. FR. FORK

51410-MB2-003

Unavailable

10

SPRING, REBOUND

51411-ME5-003

Unavailable

11

RING, BACK-UP

51412-463-003

$7.75

12

BUSH, FORK PIPE

51414-463-003

$15.77

13

BUSH, SLIDER

51415-MB9-781

$20.08

14

SLEEVE, FORK PIPE

51415-463-003

$18.74

15

GASKET | Use up to Frame SN FM103955 This part replaces 51417-MJ0-003.

51417-MJ0-013

Unavailable

15

GASKET | Use up to Frame SN FM103955

51417-MJ0-013

Unavailable

15

GASKET

51417-MJ0-013

Unavailable

16

SPRING, PISTON

51418-MJ0-003

Unavailable

17

CASE, R. (LOWER)

51421-MB2-901

Unavailable

18

COLLAR, PISTON

51423-MJ0-003

$11.76

19

PIECE, OIL LOCK (NOT AVAILABLE)

51432-MB2-003

Unavailable

20

PIECE, OIL LOCK

51432-MB7-611

Unavailable

21

SPRING, CLICK (NOT AVAILABLE)

51434-MC7-003

Unavailable

22

PISTON

51436-MJ0-003

Unavailable

23

RING, PISTON

51437-ME5-003

Unavailable

24

PIPE, SEAT

51440-MB2-003

Unavailable

25

RUBBER, STOPPER

51441-MJ0-003

Unavailable

26

BOOT, PISTON CASE

51442-MJ0-003

$9.72

27

RING, STOPPER

51445-MJ0-003

$2.59

28

CIRCLIP (INNER)

51447-463-003

$4.53

29

BOLT ASSY., FR. FORK

51450-ME5-003

Unavailable

30

BOLT ASSY., FR. FORK

51454-MB2-901

Unavailable

31

CAP, AIR VALVE

51457-KM4-003

Unavailable

32

CAP, ADJUSTING PLATE

51458-MG5-611

Unavailable

33

SEAL SET, FR. FORK

51490-MB9-782

$38.57

34

MARK, FR. FORK

51496-MC7-670

$4.99

35

FORK ASSY., L. FR. (NOT AVAILABLE) | Use up to Frame SN FM103955 This part replaces 51500-MB2-901.

51500-MB2-902

Unavailable

35

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-MB2-902

Unavailable

36

PIPE, L. FR. FORK (NOT AVAILABLE)

51510-MB2-003

Unavailable

37

CASE ASSY., L. (LOWER)

51521-MB2-901

Unavailable

38

CASE, PISTON

51530-MJ0-003

Unavailable

39

BUSH, PIVOT

51532-MB2-300

Unavailable

40

PIPE, SEAT

51540-MB2-003

Unavailable

41

BUSH, RUBBER

51545-MJ0-003

$9.38

42

PLATE, ADJUSTER

51558-MJ0-003

Unavailable

43

CASE SET, L. (LOWER)

51590-MB2-901

Unavailable

44

ROD SET, ADJUSTER

51591-MJ0-305

Unavailable

45

HOLDER, AXLE

51634-MJ0-003

Unavailable

46

SLEEVE

53134-MG5-671

Unavailable

47

BOLT, HEX. (NOT AVAILABLE)

53135-MG5-671

Unavailable

48

EQUALIZER, FR. SHOCK

53137-MB2-003

Unavailable

49

JOINT, L. AIR

53139-MG5-671

Unavailable

50

STABILIZER, FR. FORK

53240-MB2-000

Unavailable

51

BOLT, SOCKET (6MM)

90116-MJ0-003

Unavailable

52

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

52

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

53

BOLT, HEX. (6X17)

90125-MB2-003

Unavailable

54

SCREW, SOCKET

90150-MJ0-003

Unavailable

55

BOLT, SOCKET

90151-MJ0-003

Unavailable

56

BOLT, SOCKET (8X17) This part replaces 90153-MB0-000.

90153-MB0-405

$3.38

56

BOLT, SOCKET (8X17)

90153-MB0-405

$3.38

57

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

58

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

59

RING, STOPPER

90602-MG5-670

Unavailable

60

DUST SEAL

91254-463-003

$22.51

61

O-RING (35.5X2)

91302-MA3-661

$2.65

62

O-RING (36.5X2.7)

91305-MJ0-003

$4.99

63

O-RING (49.4X3.1)

91308-MJ0-003

$3.58

64

O-RING

91310-MJ0-003

$2.61

65

O-RING

91311-MJ0-003

Unavailable

66

O-RING (38.5X2)

91351-GR1-000

$2.92

66

O-RING (38.5X2) This part replaces 91352-MG5-671.

91351-GR1-000

$2.92

67

O-RING

91353-MG5-671

Unavailable

68

O-RING (29.2X3.5)

91356-MA3-661

$3.69

69

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.77

70

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

70

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

71

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.59

71

BOLT, STUD (8X50)

92900-08028-3B

$1.59

72

NUT, HEX. (8MM)

94030-08070

$1.49

73

WASHER, FLAT (8MM)

94101-08700

$1.49

74

WASHER, SPRING (8MM) (NOT AVAILABLE)

94111-08700

Unavailable

75

BALL, STEEL (#5) (5/32)

96211-05000

$1.49
