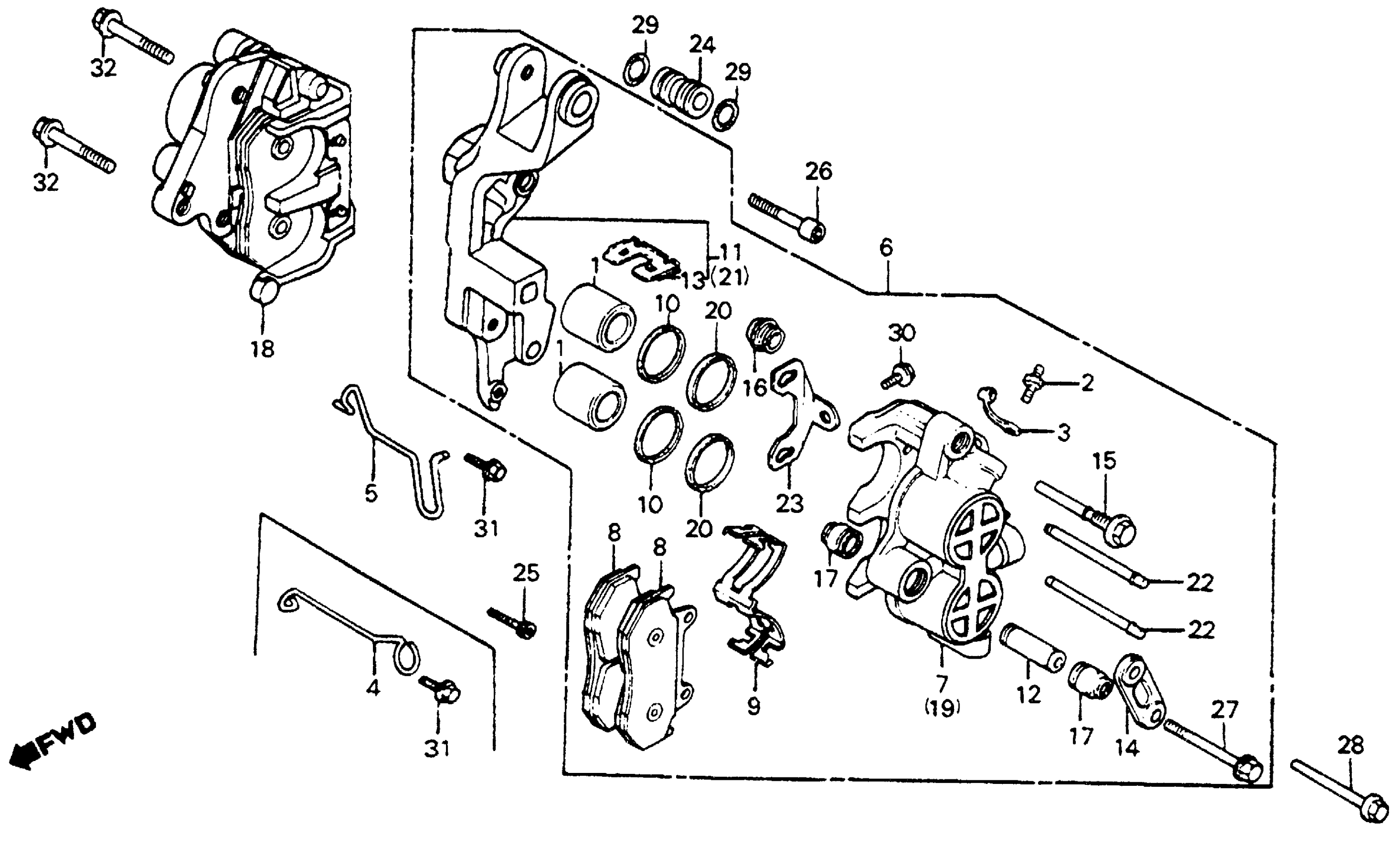

Honda VF700FA (85) INTERCEPTOR, JPN, VIN# JH2RC230-FM100003 TO JH2RC230-FM104561 FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

PAD SET, FR.

06455-MJ1-405

Unavailable

NI

PAD SET, FR. This part replaces 451A0-MJ1-670.

06455-MJ1-405

Unavailable

1

PISTON

43107-MA7-006

$45.55

2

SCREW, BLEEDER

43352-568-003

$7.95

3

CAP, BLEEDER

43353-461-771

$5.05

5

CLAMP, SPEEDOMETER CABLE

44832-ME2-000

$9.67

6

CALIPER ASSY., L. FR. This part replaces 45100-MJ0-017.

45100-MJ0-027

Unavailable

6

CALIPER ASSY., L. FR.

45100-MJ0-027

Unavailable

7

CALIPER, L. FR.

45101-MJ0-006

Unavailable

8

PAD, FR. (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MJ1-672.

45105-MJ1-673

Unavailable

8

PAD, FR. (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45105-MJ1-673

Unavailable

9

SPRING, PAD

45108-MA3-006

$6.28

10

DUST SEAL

45109-MA7-006

$5.31

11

BRACKET, L. FR.

45110-MJ0-016

Unavailable

12

SLEEVE

45111-MA3-006

$13.38

13

RETAINER, BRACKET

45112-445-631

$8.98

14

BRIDGE, CALIPER BRACKET (NOT AVAILABLE)

45113-MB7-610

Unavailable

15

PIN, BOLT

45131-MA3-006

$17.59

16

BOOT B

45133-MA3-006

$5.46

17

BOOT, PIN

45133-166-016

$3.85

18

CALIPER ASSY., R. FR. (NISSHIN) (NOT AVAILABLE) This part replaces 45200-MJ0-017.

45200-MJ0-027

Unavailable

18

CALIPER ASSY., R. FR. (NISSHIN)

45200-MJ0-027

Unavailable

19

BODY, R. FR. CALIPER

45201-MJ0-006

Unavailable

20

SEAL, PISTON

45209-MA7-006

$6.61

21

BRACKET, R. FR.

45210-MJ0-016

Unavailable

22

PIN, HANGER

45215-MA3-006

$12.77

23

PLATE

45217-MJ0-006

Unavailable

24

SLEEVE, FR. CALIPER BRACKET

51536-MB2-000

Unavailable

25

BOLT, SOCKET (6X25)

90105-MJ1-000

$6.31

26

BOLT, SOCKET (10X40)

90131-MB2-000

Unavailable

27

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

28

BOLT, FLANGE (8X55)

90180-MA3-660

$4.72

29

O-RING (13.8X2.4) (NOK) This part replaces 91308-MC7-003.

91311-PH7-003

$2.28

29

O-RING (13.8X2.4) (NOK)

91311-PH7-003

$2.28

30

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

30

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

31

BOLT, FLANGE (6X12) This part replaces 95700-06012-07.

95701-06012-07

$1.62

31

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

32

BOLT, FLANGE (10X40) This part replaces 95800-10040-07.

95801-10040-07

$1.79

32

BOLT, FLANGE (10X40)

95801-10040-07

$1.79

32

BOLT, FLANGE (10X40) This part replaces 90180-MB6-000.

96400-10040-07

Unavailable
