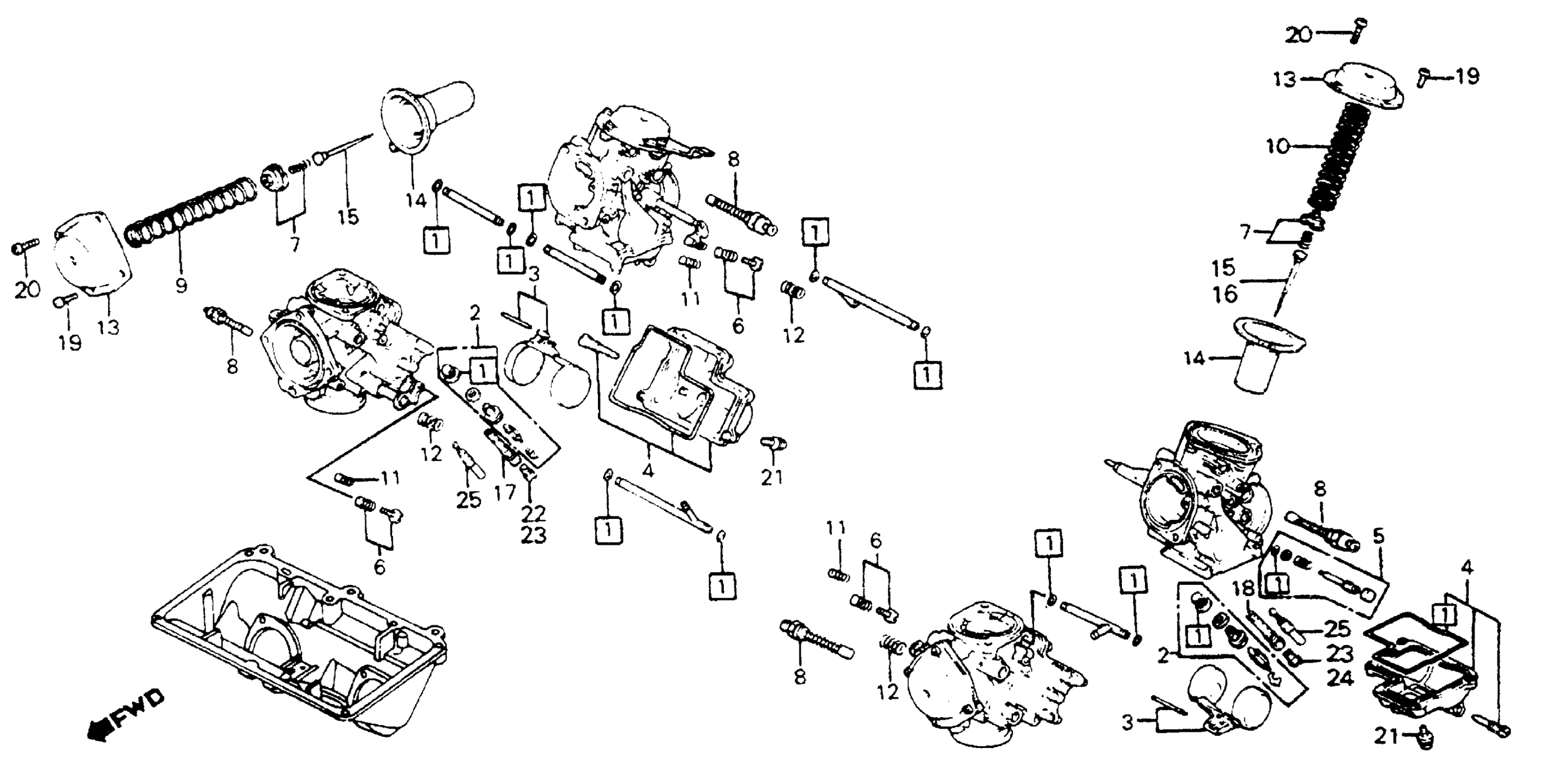

Honda VF700FA (85) INTERCEPTOR, JPN, VIN# JH2RC230-FM100003 TO JH2RC230-FM104561 CARBURETOR COMPONENT PART Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-MB4-621.

16010-MB6-305

$51.62

1

GASKET SET This part replaces 16010-MB4-622.

16010-MB6-305

$51.62

1

GASKET SET

16010-MB6-305

$51.62

1

GASKET SET This part replaces 16010-MB6-681.

16010-MB6-305

$51.62

2

VALVE SET, FLOAT

16011-MB1-671

$73.88

3

FLOAT SET

16013-MB0-671

$49.46

4

CHAMBER SET, FLOAT

16015-MAH-750

$119.97

4

CHAMBER SET, FLOAT This part replaces 16015-MB0-671.

16015-MAH-750

$119.97

4

CHAMBER SET, FLOAT This part replaces 16015-MB0-871.

16015-MAH-750

$119.97

4

CHAMBER SET, FLOAT This part replaces 16015-MN2-631.

16015-MAH-750

$119.97

5

SCREW SET This part replaces 16016-MF5-611.

16016-MAH-670

$23.60

5

SCREW SET This part replaces 16016-MF5-671.

16016-MAH-670

$23.60

6

SCREW SET C

16029-MB0-671

$22.55

7

PLATE SET, VALVE This part replaces 16037-MB0-671.

16037-ME5-671

$26.88

8

VALVE SET, STARTER

16046-MA6-003

$70.76

9

SPRING, FR. VACUUM PISTON

16050-MB0-671

Unavailable

10

SPRING, RR. VACUUM PISTON

16051-MB0-671

Unavailable

11

SPRING

16052-ME9-672

$5.28

12

SPRING

16053-MB0-671

$9.25

13

TOP This part replaces 16107-MB0-671.

16108-MJ1-671

$36.38

13

TOP This part replaces 16108-ME5-671.

16108-MJ1-671

$36.38

13

TOP

16108-MJ1-671

$36.38

13

TOP This part replaces 16107-KE8-004.

16108-MJ1-671

$36.38

14

PISTON, VACUUM

16111-MB0-871

Unavailable

15

NEEDLE, JET

16131-MB1-871

Unavailable

17

HOLDER, FR. NEEDLE JET

16165-MB1-771

$11.61

18

HOLDER, NEEDLE JET

16165-MB6-781

Unavailable

19

SCREW, PAN (4X10)

93500-04010-0A

$0.83

20

SCREW, PAN (4X12)

93500-04012-0A

$0.75

21

SCREW-WASHER (4X16)

93892-04016-00

$0.48

22

JET (#112)

99101-GHB-1120

$7.43

22

JET (#112) This part replaces 99101-393-1120.

99101-GHB-1120

$7.43

24

JET (#110) This part replaces 99101-GHB-1100.

99101-MBA-1100

$8.19

24

JET (#110) This part replaces 99101-393-1100.

99101-MBA-1100

$8.19

24

JET (#110) This part replaces 99102-393-1100.

99101-MBA-1100

$8.19

25

JET, SLOW (#38) This part replaces 99103-437-0380.

99103-MV9-0380

$10.54
