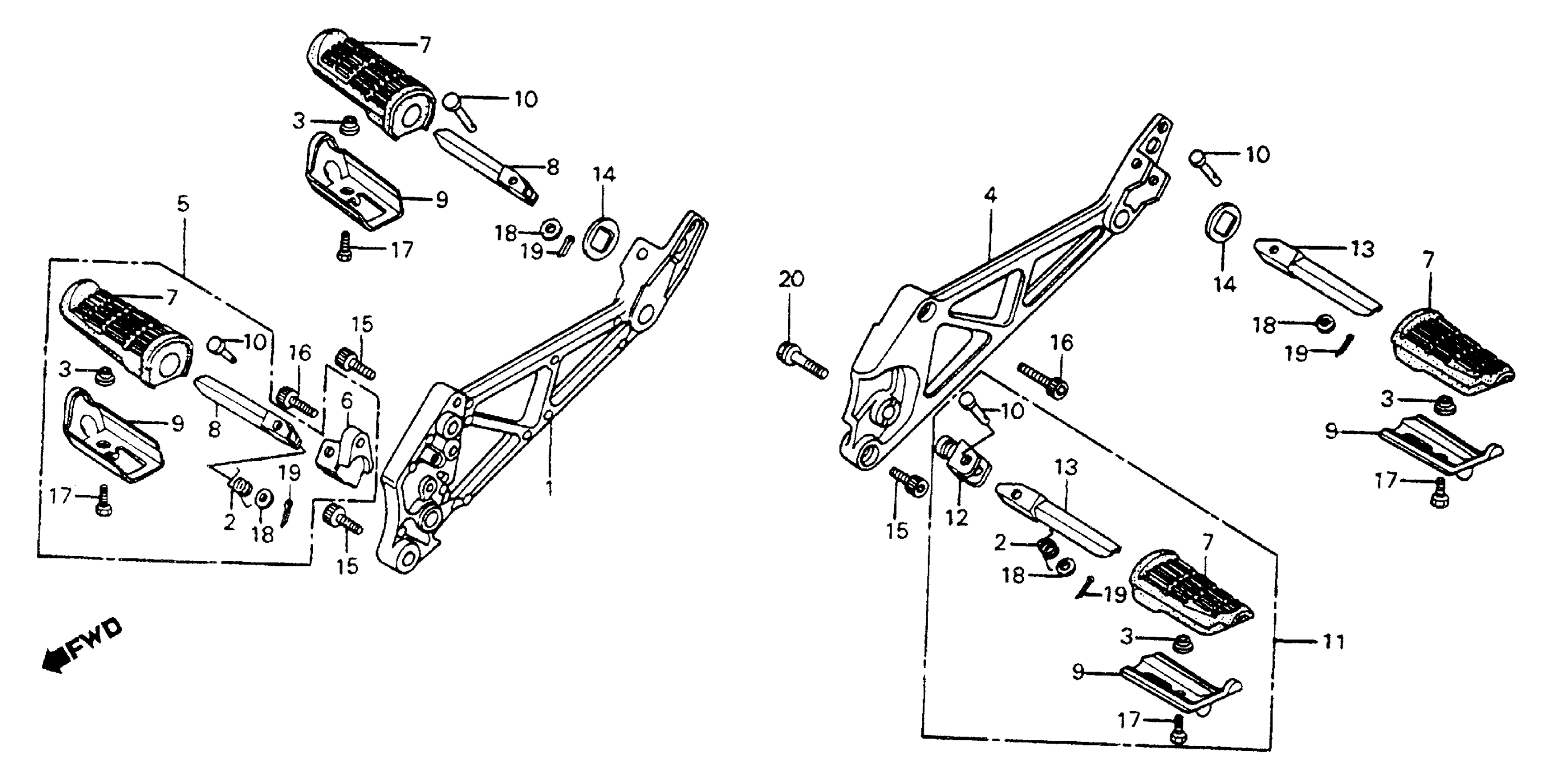

Honda VF700FA (84) INTERCEPTOR, JPN, VIN# JH2RC230-EM000001 TO JH2RC230-EM003300 STEP Diagram

#

Description
Price

1

HOLDER, R. STEP This part replaces 50610-MB2-000.

50610-MB2-010

Unavailable

1

HOLDER, R. STEP

50610-MB2-010

Unavailable

2

SPRING, FOOTPEG RETURN

50617-MB2-000

Unavailable

3

COLLAR (6.5X11X3)

50618-KE8-000

$2.75

4

HOLDER, L. STEP This part replaces 50620-MB2-000.

50620-MB2-010

Unavailable

4

HOLDER, L. STEP

50620-MB2-010

Unavailable

5

STEP ASSY., R. MAIN This part replaces 50630-MB2-000.

50630-MB2-010

Unavailable

5

STEP ASSY., R. MAIN

50630-MB2-010

Unavailable

6

BRACKET, R. STEP This part replaces 50631-MB2-000.

50631-MB2-010

Unavailable

6

BRACKET, R. STEP

50631-MB2-010

Unavailable

7

RUBBER, STEP

50632-MB2-000

Unavailable

8

BAR, R. STEP

50635-MB2-000

Unavailable

9

PLATE B, STEP This part replaces 50636-MB2-000.

50636-MJ0-000

Unavailable

9

PLATE B, STEP

50636-MJ0-000

Unavailable

10

PIN, STEP BAR JOINT

50639-MB2-000

Unavailable

11

STEP ASSY., L. MAIN (NOT AVAILABLE) This part replaces 50640-MB2-000.

50640-MB2-010

Unavailable

11

STEP ASSY., L. MAIN (NOT AVAILABLE)

50640-MB2-010

Unavailable

12

BRACKET, L. STEP This part replaces 50641-MB2-000.

50641-MB2-010

Unavailable

12

BRACKET, L. STEP

50641-MB2-010

Unavailable

13

BAR, L. STEP

50645-MB2-000

Unavailable

14

WASHER, PILLION STEP

50712-MB2-000

Unavailable

15

BOLT, SOCKET (10X20)

90109-MB2-000

Unavailable

16

BOLT, SOCKET (10X30)

90152-MB2-000

Unavailable

17

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12) This part replaces 92000-06012-0A.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12) This part replaces 92100-06012.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

18

WASHER, PLAIN (8MM)

94102-08000

$1.49

19

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

19

PIN, COTTER (1.6X25)

94201-16250

$1.49

20

BOLT, FLANGE (10X32) This part replaces 95700-10032-00.

95701-10032-00

$1.49

20

BOLT, FLANGE (10X32)

95701-10032-00

$1.49
