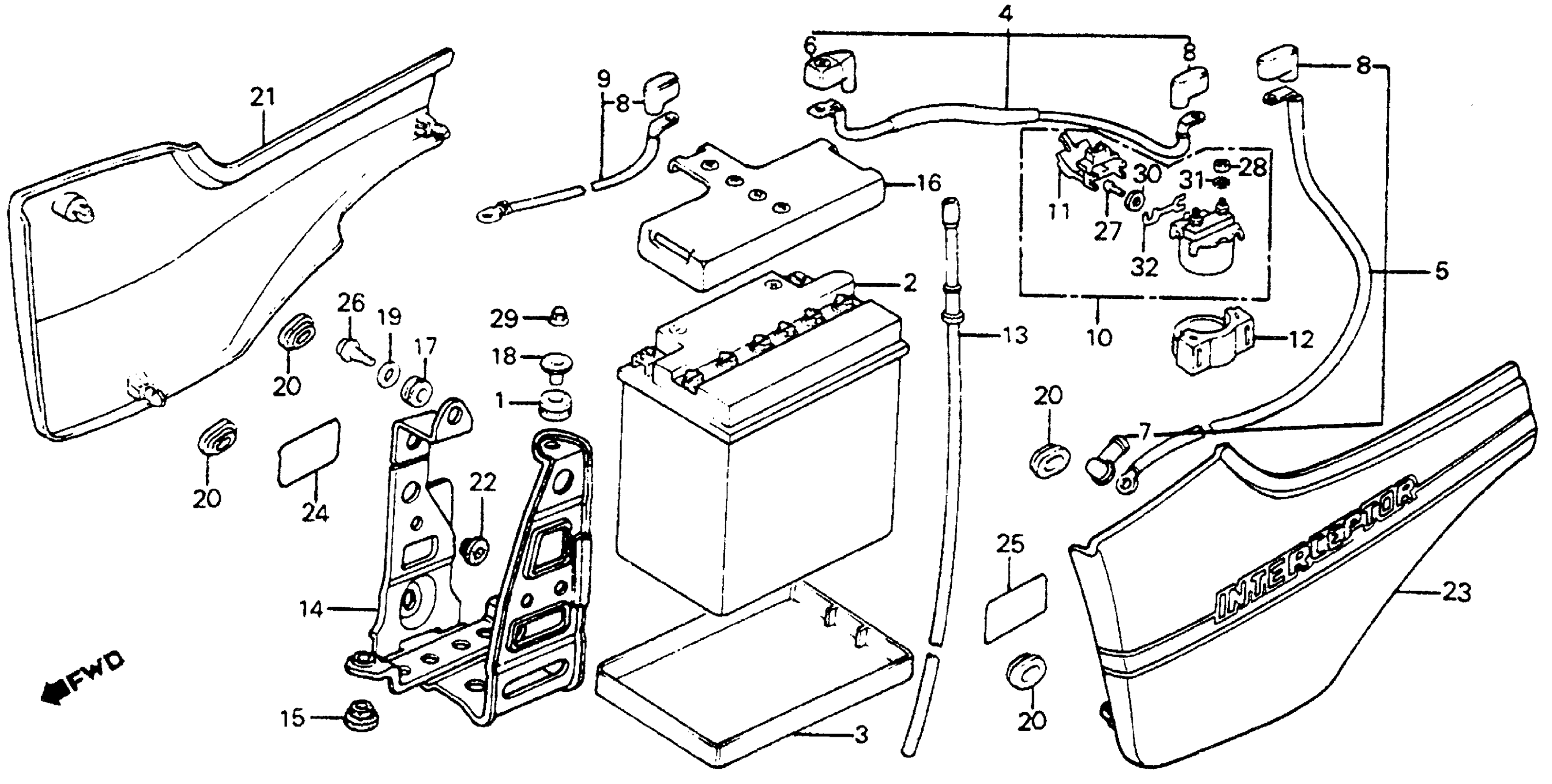

Honda VF700FA (84) INTERCEPTOR, JPN, VIN# JH2RC230-EM000001 TO JH2RC230-EM003300 SIDE COVER + BATTERY Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

2

BATTERY (YB14-A2) This part replaces 31500-MB1-671.

31500-MW3-720AH

$70.40

2

BATTERY (YB14-A2) This part replaces 31500-MB1-672.

31500-MW3-720AH

$70.40

2

BATTERY (YB14-A2) This part replaces 31500-MW3-720.

31500-MW3-720AH

$70.40

3

RUBBER, BATTERY (NOT AVAILABLE)

31521-MB0-000

Unavailable

4

CABLE, BATTERY STARTER (NOT AVAILABLE) This part replaces 32401-MB2-000.

32401-MB6-000

Unavailable

5

CABLE, STARTER MOTOR

32402-MB2-000

Unavailable

6

COVER, BATTERY TERMINAL

32411-MB2-000

Unavailable

7

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

7

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

8

COVER A, MAGNETIC SWITCH (NOT AVAILABLE)

32412-443-900

Unavailable

9

CABLE, BATTERY GROUND This part replaces 32601-MB2-000.

32601-MB6-630

Unavailable

9

CABLE, BATTERY GROUND This part replaces 32601-MB6-000.

32601-MB6-630

Unavailable

9

CABLE, BATTERY GROUND

32601-MB6-630

Unavailable

10

SWITCH ASSY., STARTER MAGNETIC

35850-MB0-007

$131.64

11

COVER, FUSE

35852-MB0-007

Unavailable

12

RUBBER, SHOCK ABSORBER

35856-MB0-007

Unavailable

13

TUBE, BATTERY (NOT AVAILABLE)

50238-MB2-000

Unavailable

14

BOX, BATTERY

50320-MB2-000

Unavailable

15

RUBBER, BATTERY BOX MOUNTING (NOT AVAILABLE)

50324-MB2-000

Unavailable

16

RUBBER, BATTERY (NOT AVAILABLE)

50327-MB2-000

Unavailable

17

GROMMET

50329-MB2-000

$5.06

18

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

18

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

18

COLLAR, RR. FENDER

61105-428-000

Unavailable

19

WASHER, SEAT SETTING

77302-124-000

$3.23

20

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

21

COVER SUB-ASSY., R. SIDE *PB127CU* (CANDY ALEUTIAN BLUE) (NOT AVAILABLE)

83610-MB2-690ZA

Unavailable

21

COVER SUB-ASSY., R. SIDE *R107CU* (CANDY BOURGOGNE RED-U) (NOT AVAILABLE)

83610-MB2-690ZB

Unavailable

22

RUBBER, BATTERY BOX

83618-323-000

$2.47

23

COVER SUB-ASSY., L. SIDE *PB127CU* (CANDY ALEUTIAN BLUE) (NOT AVAILABLE)

83710-MB2-690ZA

Unavailable

23

COVER SUB-ASSY., L. SIDE *R107CU* (CANDY BOURGOGNE RED-U) (NOT AVAILABLE)

83710-MB2-690ZB

Unavailable

24

LABEL, BATTERY CAUTION

87506-MB2-670

Unavailable

25

MARK, RADIATOR CAUTION (NOT AVAILABLE)

87508-415-670

Unavailable

26

BOLT, SPECIAL (6X20)

90008-MB2-000

Unavailable

27

SCREW, PAN (4X6)

93500-04006-0H

$1.49

27

SCREW, PAN (4X6) This part replaces 93500-04006-1H.

93500-04006-0H

$1.49

28

NUT, HEX. (6MM) This part replaces 94002-06080.

94002-06080-0S

$1.49

28

NUT, HEX. (6MM)

94002-06080-0S

$1.49

28

NUT, HEX. (6MM) This part replaces 94002-06080-00.

94002-06080-0S

$1.49

28

NUT, HEX. (6MM) This part replaces 94002-06080-05.

94002-06080-0S

$1.49

29

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

29

NUT, CAP (6MM)

94021-06020

$1.73

29

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

29

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

30

WASHER, PLAIN (4MM)

94101-04800

$1.49

31

WASHER, SPRING (6MM)

94111-06800

$1.49

32

FUSE F (30A)

98200-53000

$1.49
