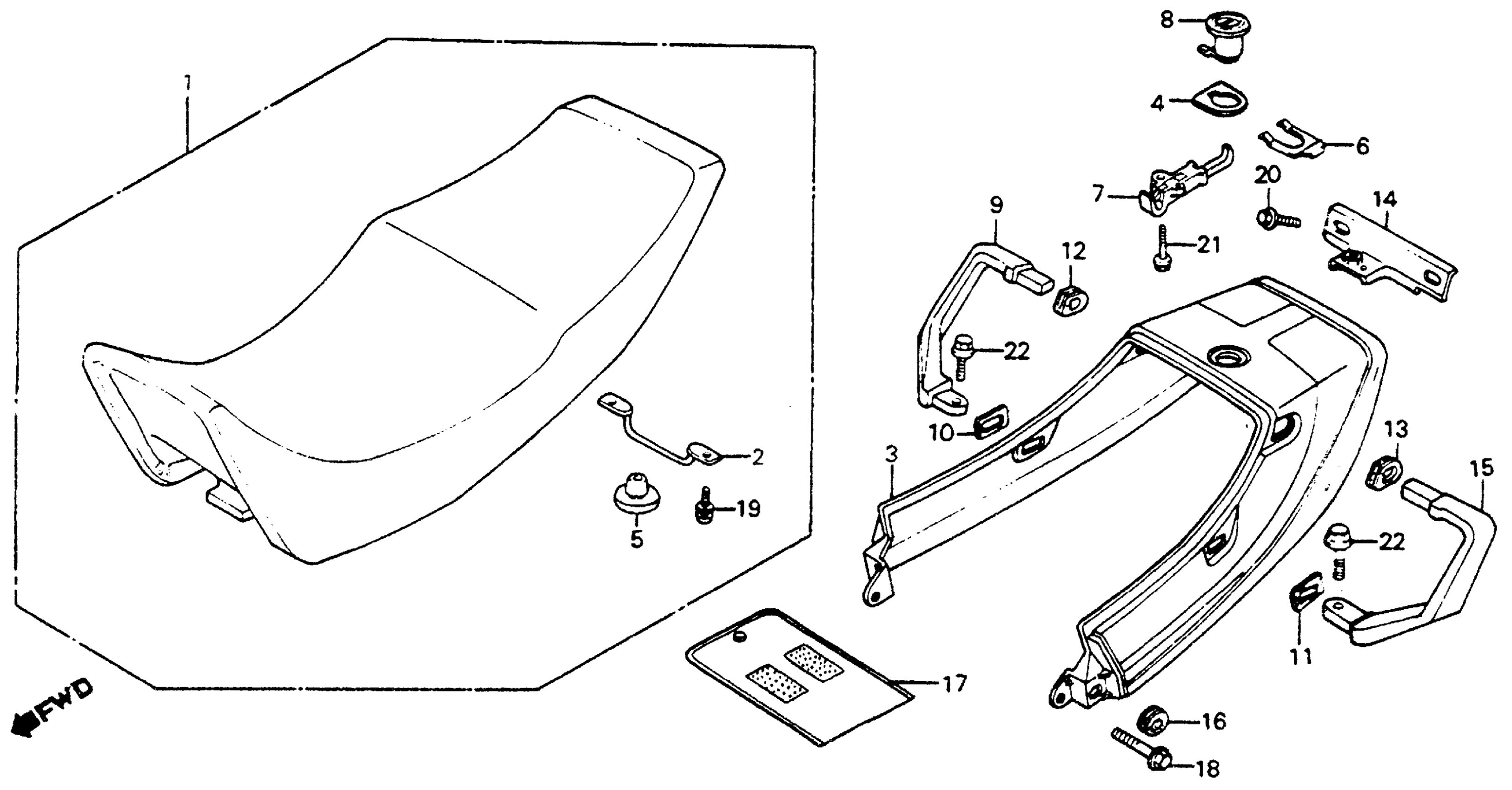

Honda VF700FA (84) INTERCEPTOR, JPN, VIN# JH2RC230-EM000001 TO JH2RC230-EM003300 SEAT + REAR COWL Diagram

#

Description
Price

1

SEAT ASSY. *NH1* (BLACK) (NOT AVAILABLE)

77100-MB2-670ZA

Unavailable

2

BAR, SEAT LOCK

77102-MB2-300

Unavailable

3

COWL SUB-ASSY., RR. SEAT *PB127CU* (CANDY ALEUTIAN BLUE) (NOT AVAILABLE)

77210-MB2-690ZA

Unavailable

3

COWL SUB-ASSY., RR. SEAT *R107CU* (CANDY BOURGOGNE RED-U)

77210-MB2-690ZB

Unavailable

4

PLATE, SEAT LOCK (NOT AVAILABLE)

77207-MB2-000

Unavailable

5

RUBBER, SEAT STOPPER

77211-MB0-000

$6.72

6

SPRING, LOCK KEY SETTING

77211-MB2-000

Unavailable

7

HOOK, SEAT CATCH This part replaces 77220-MB2-003.

77220-MJ6-013

Unavailable

7

HOOK, SEAT CATCH This part replaces 77220-MJ6-003.

77220-MJ6-013

Unavailable

7

HOOK, SEAT CATCH

77220-MJ6-013

Unavailable

8

LOCK ASSY., SEAT

77225-ME4-003

Unavailable

9

GRIP, R. RR.

77330-MB2-000

Unavailable

10

RUBBER, R. RR. GRIP (A) (NOT AVAILABLE)

77331-MB2-000

Unavailable

11

RUBBER, L. RR. GRIP (A)

77332-MB2-000

Unavailable

12

RUBBER, R. RR. GRIP (B) (NOT AVAILABLE)

77333-MB2-000

Unavailable

13

RUBBER, L. RR. GRIP (B) (NOT AVAILABLE)

77334-MB2-000

Unavailable

14

JOINT, RR. GRIP

77335-MB2-000

Unavailable

15

GRIP, L. RR.

77340-MB2-000

Unavailable

16

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

17

BAG, OWNER'S MANUAL (NOT AVAILABLE)

83642-426-000

Unavailable

17

BAG, OWNER'S MANUAL

83642-171-000

Unavailable

18

BOLT, FLANGE (6MM)

90111-187-000

$5.59

19

SCREW-WASHER (4X8)

93893-04008-00

$1.49

20

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

20

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

21

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

21

BOLT, FLANGE (6X25)

95701-06025-08

$1.72

22

BOLT, FLANGE (8X20) This part replaces 95700-08020-07.

95701-08020-07

$1.87

22

BOLT, FLANGE (8X20)

95701-08020-07

$1.87
