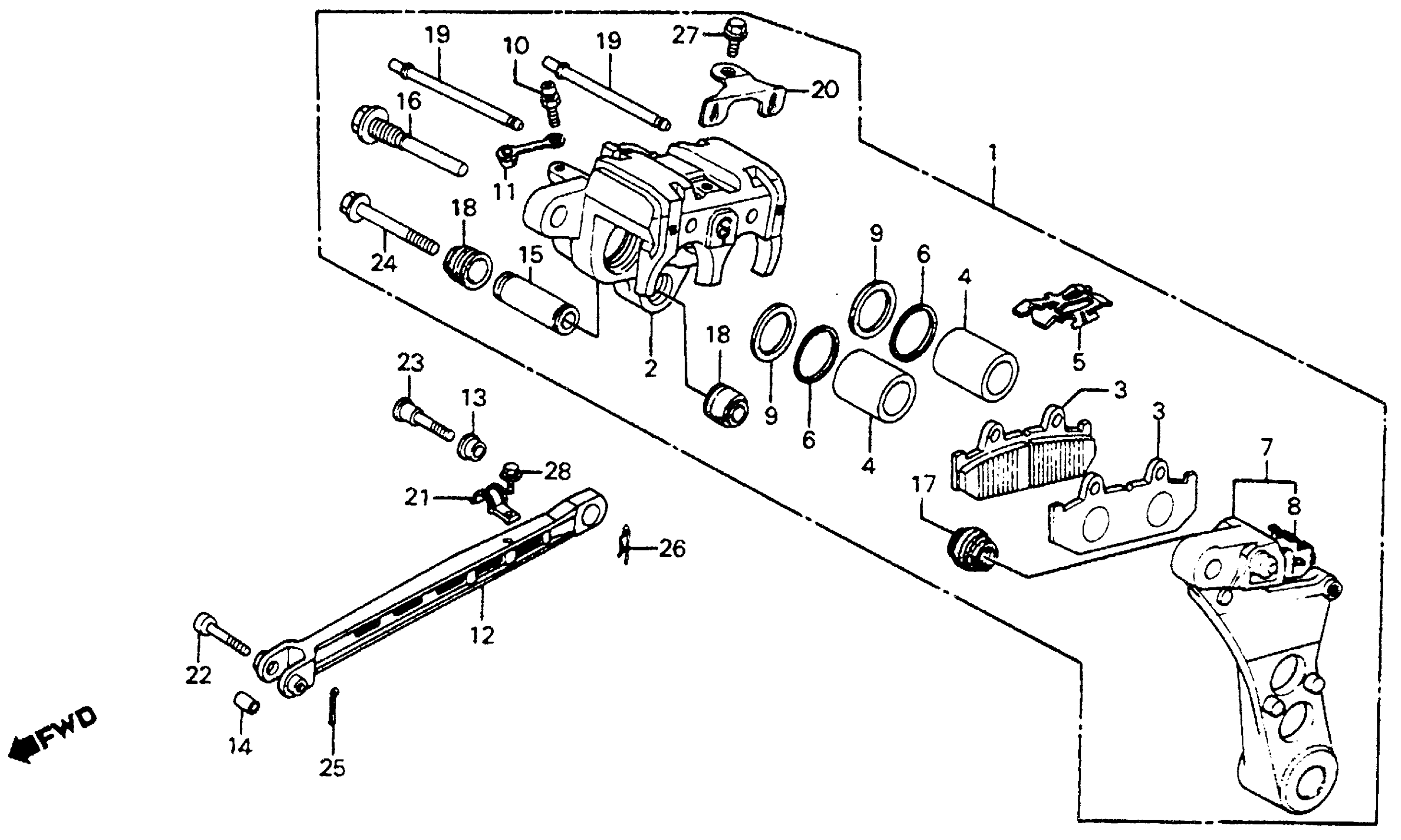

Honda VF700FA (84) INTERCEPTOR, JPN, VIN# JH2RC230-EM000001 TO JH2RC230-EM003300 REAR BRAKE CALIPER Diagram

#

Description
Price

NI

BRAKE PAD KIT

431A0-MB4-306

$43.83

NI

BRAKE PAD KIT This part replaces 431A0-MB4-307.

431A0-MB4-306

$43.83

1

CALIPER ASSY., RR. (ASK) (NISSHIN)

43100-MB2-007

Unavailable

1

CALIPER ASSY., RR. (ASK) (NISSHIN) This part replaces 43100-MB2-008.

43100-MB2-007

Unavailable

2

CALIPER, RR.

43101-MB2-006

Unavailable

3

PAD, RR. (ASK) This part replaces 43105-MB4-007.

43105-MB4-017

$24.10

3

PAD, RR. (ASK) This part replaces 43105-MB4-008.

43105-MB4-017

$24.10

3

PAD, RR. (ASK)

43105-MB4-017

$24.10

4

PISTON

43107-MA3-006

$32.99

5

SPRING, PAD

43108-MB9-781

Unavailable

6

DUST SEAL

43109-MA3-006

$5.73

7

BRACKET, RR.

43110-MB2-006

Unavailable

8

RETAINER, RR. BRACKET

43112-445-631

Unavailable

9

SEAL, PISTON

43209-MA3-006

$7.04

10

SCREW, BLEEDER

43352-568-003

$7.95

11

CAP, BLEEDER

43353-461-771

$5.05

12

LINK, TORQUE

434W3-MA3-505

Unavailable

12

LINK, TORQUE This part replaces 43431-MB2-000.

434W3-MA3-505

Unavailable

13

WASHER, TORQUE LINK

43434-MA3-640

Unavailable

14

COLLAR, LINK (NOT AVAILABLE)

43435-MC7-000

Unavailable

15

SLEEVE

45111-MA3-006

$13.38

16

PIN, BOLT

45131-MA3-006

$17.59

17

BOOT B

45133-MA3-006

$5.46

18

BOOT, PIN

45133-166-016

$3.85

19

PIN, HANGER

45215-MA2-006

Unavailable

20

PLATE

45217-MA3-006

$4.45

21

CLAMP B, RR. BRAKE HOSE (NOT AVAILABLE)

52115-MB2-000

Unavailable

22

BOLT, RR. BRAKE STOPPER ARM (NOT AVAILABLE)

90120-MC7-000

Unavailable

23

BOLT, TORQUE LINK (NOT AVAILABLE)

90121-MA3-640

Unavailable

24

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

25

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

25

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

25

PIN, COTTER (2.0X22)

94201-20220

$1.49

25

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

25

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

25

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

25

PIN, COTTER (2.0X35)

94201-20350

$1.49

25

PIN, COTTER (2.0X22)

94201-29220

$1.49

26

PIN, LOCK (10MM)

94251-10000

$1.49

27

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

27

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

28

BOLT, FLANGE (6X12) This part replaces 95700-06012-07.

95701-06012-07

$1.62

28

BOLT, FLANGE (6X12)

95701-06012-07

$1.62
