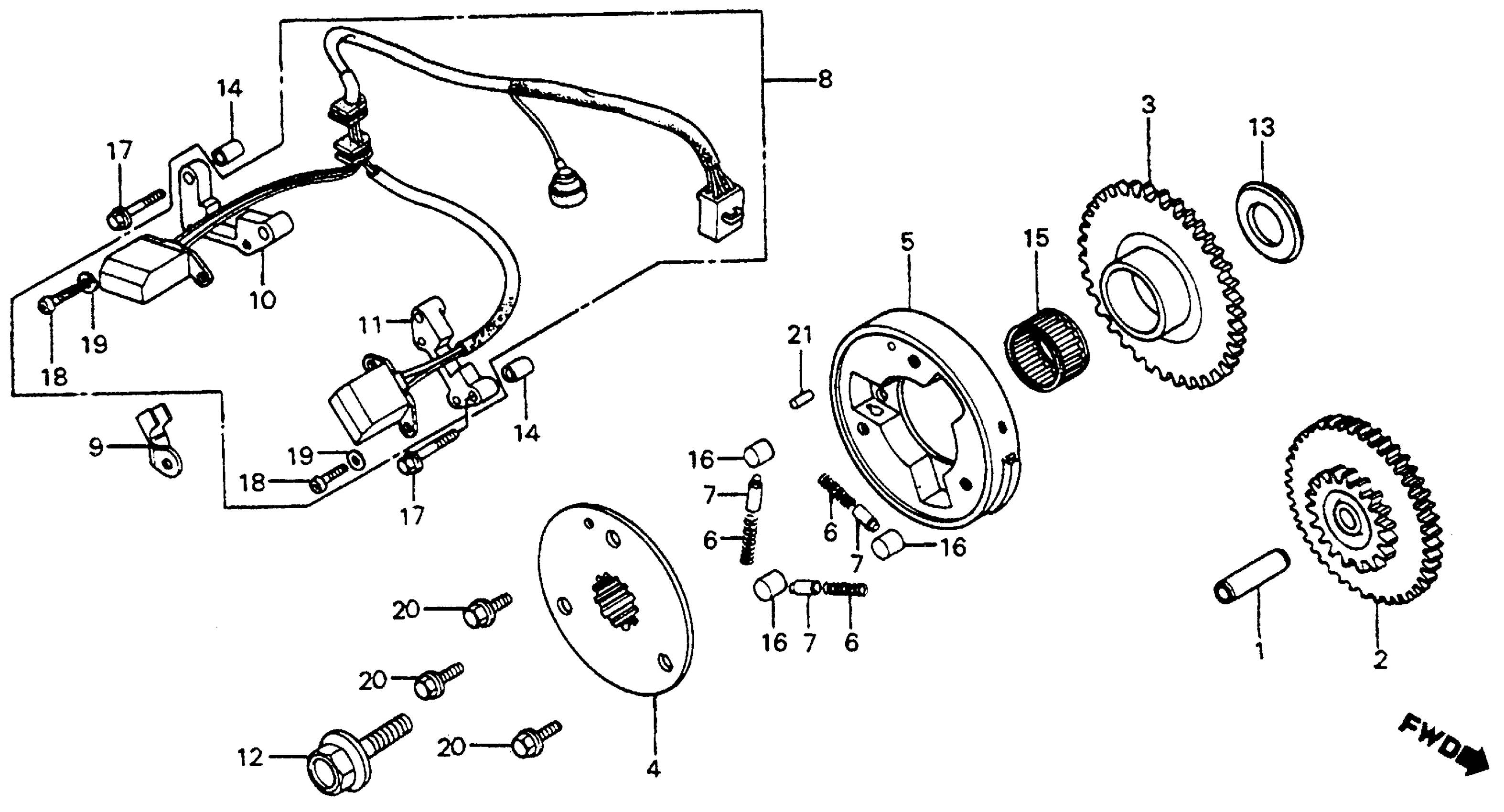

Honda VF700FA (84) INTERCEPTOR, JPN, VIN# JH2RC230-EM000001 TO JH2RC230-EM003300 PULSE GENERATOR + STARTER CLUTCH Diagram

#

Description
Price

1

PIN, PISTON This part replaces 13111-GK8-000.

13111-GS7-000

$9.55

1

PIN, PISTON

13111-GS7-000

$9.55

1

PIN, PISTON This part replaces 13111-122-000.

13111-GS7-000

$9.55

2

GEAR, STARTER REDUCTION (21T/82T)

28101-MB0-000

Unavailable

3

GEAR, STARTER CLUTCH (48T) This part replaces 28110-MB0-000.

28110-MB0-010

Unavailable

3

GEAR, STARTER CLUTCH (48T)

28110-MB0-010

Unavailable

4

FLANGE, STARTER CLUTCH

28115-MB2-000

Unavailable

5

CLUTCH, STARTING (OUTER)

28120-MB2-690

Unavailable

6

SPRING, STARTER CLUTCH ROLLER

28125-516-030

$2.73

7

CAP, STARTER CLUTCH ROLLER SPRING

28126-415-000

$18.84

8

GENERATOR ASSY., PULSE This part replaces 30300-MB0-154.

30300-MJ4-405

Unavailable

8

GENERATOR ASSY., PULSE This part replaces 30300-MB0-164.

30300-MJ4-405

Unavailable

8

GENERATOR ASSY., PULSE This part replaces 30300-MB0-174.

30300-MJ4-405

Unavailable

8

GENERATOR ASSY., PULSE

30300-MJ4-405

Unavailable

9

CLIP, PULSER WIRE (NOT AVAILABLE)

30301-MB4-010

Unavailable

10

STAY A, PULSE GENERATOR (TOYO)

30310-MB0-154

Unavailable

11

STAY B, PULSE GENERATOR (TOYO)

30320-MB0-154

Unavailable

12

BOLT, FLANGE (12X45) This part replaces 90023-HA7-670.

90024-MT3-000

Unavailable

12

BOLT, FLANGE (12X45) This part replaces 90023-428-000.

90024-MT3-000

Unavailable

12

BOLT, FLANGE (12X45)

90024-MT3-000

Unavailable

13

WASHER, THRUST

90510-107-720

Unavailable

14

PIN, DOWEL (8X8)

90702-MB0-000

$3.80

15

BEARING, NEEDLE (30X35X17)

91022-MB0-003

$34.97

15

BEARING, NEEDLE (30X35X17)

91022-MB0-004

Unavailable

16

ROLLER (15X13)

91101-516-000

$6.32

17

BOLT-WASHER (6X25)

93401-06025-00

$1.49

17

BOLT-WASHER (6X25) This part replaces 93491-06025-00.

93401-06025-00

$1.49

18

SCREW, PAN (4X10)

93500-04010-0H

$1.49

19

WASHER, SPRING (4MM)

94111-04800

$1.49

20

BOLT, FLANGE (8X14) This part replaces 95700-08014-08.

95701-08014-08

$1.80

20

BOLT, FLANGE (8X14)

95701-08014-08

$1.80

21

ROLLER (6X15)

96220-60150

$1.49
