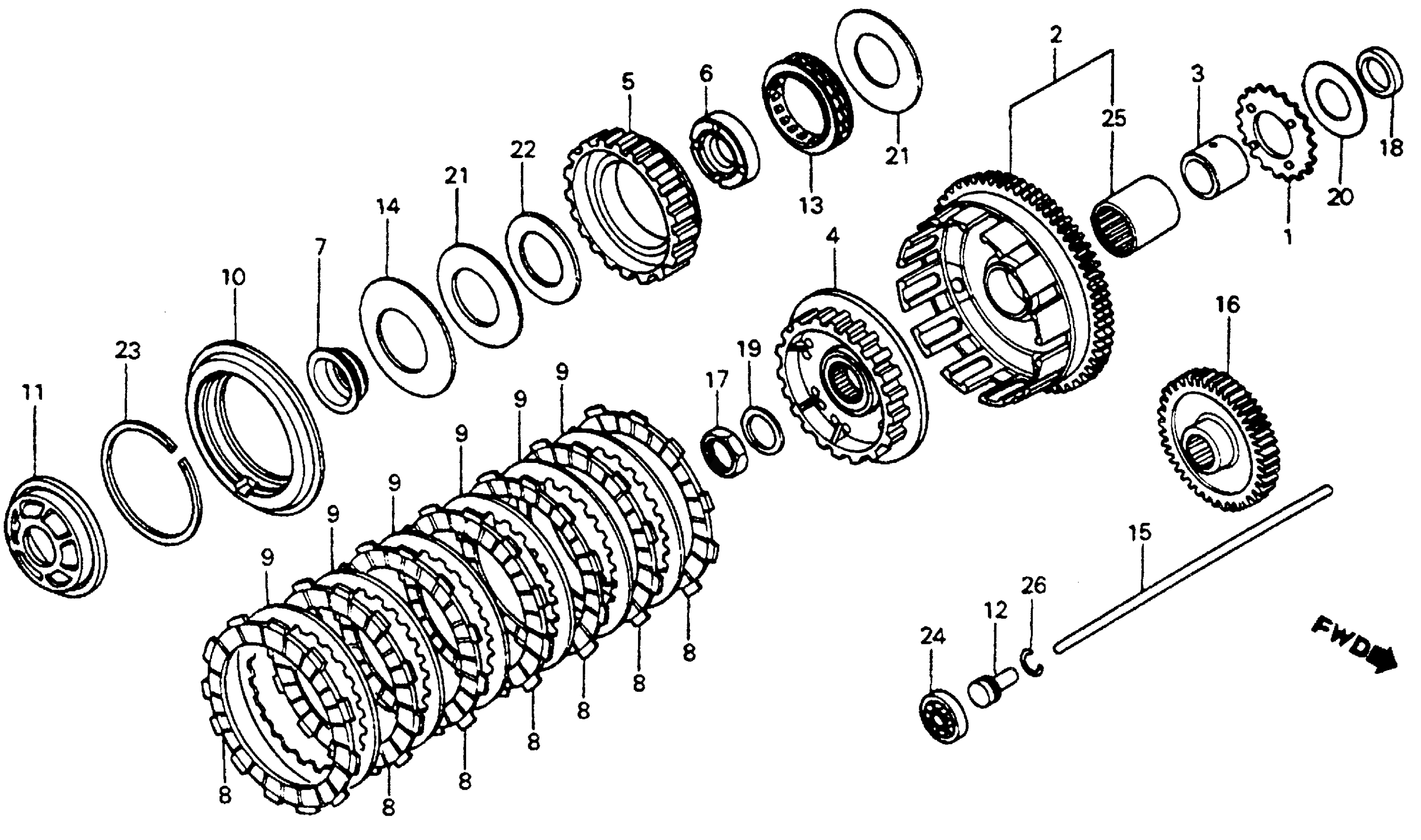

Honda VF700FA (84) INTERCEPTOR, JPN, VIN# JH2RC230-EM000001 TO JH2RC230-EM003300 CLUTCH Diagram

#

Description
Price

1

SPROCKET, OIL PUMP DRIVE (26T) (NOT AVAILABLE)

15131-MB0-000

Unavailable

2

CLUTCH (OUTER) (NOT AVAILABLE)

22100-MB2-003

Unavailable

3

GUIDE, CLUTCH (OUTER)

22116-MB0-000

$33.77

4

CENTER, CLUTCH (A) This part replaces 22120-MB2-003.

22120-MW3-A90

Unavailable

4

CENTER, CLUTCH (A) This part replaces 22120-MJ1-760.

22120-MW3-A90

Unavailable

4

CENTER, CLUTCH (A)

22120-MW3-A90

Unavailable

5

CENTER B, CLUTCH This part replaces 22131-MB0-770.

22131-MJ0-010

Unavailable

5

CENTER B, CLUTCH

22131-MJ0-010

Unavailable

6

INNER, ONE-WAY CLUTCH

22141-MB0-770

Unavailable

7

PLATE, SPRING SETTING

22151-MB0-770

Unavailable

8

DISK, CLUTCH FRICTION This part replaces 22201-MB0-003.

22201-MM5-000

$28.39

8

DISK, CLUTCH FRICTION

22201-MM5-000

$28.39

9

PLATE, CLUTCH

22321-MG8-000

$15.44

9

PLATE, CLUTCH This part replaces 22321-283-000.

22321-MG8-000

$15.44

10

PLATE, CLUTCH PRESSURE

22351-MB0-771

Unavailable

11

PLATE, CLUTCH LIFTER

22352-MB0-770

Unavailable

12

PIECE, CLUTCH JOINT

22366-KE8-000

Unavailable

13

CLUTCH, ONE-WAY

22425-MB0-772

Unavailable

14

SPRING, CLUTCH

22441-MB2-003

Unavailable

15

ROD, CLUTCH LIFTER

22850-MB2-000

Unavailable

16

GEAR, PRIMARY DRIVE (33T)

23103-MB2-000

Unavailable

17

NUT, LOCK (22MM)

90201-MB0-770

Unavailable

18

COLLAR (25.2X7) (NOT AVAILABLE)

90203-MB0-000

Unavailable

19

WASHER, SPRING (22MM) This part replaces 90432-MB0-000.

90432-MB0-010

$9.93

19

WASHER, SPRING (22MM)

90432-MB0-010

$9.93

20

WASHER, THRUST (25MM)

90459-MB0-000

Unavailable

21

WASHER (44X85X1.6) This part replaces 90461-MB0-770.

90461-MJ0-000

Unavailable

21

WASHER (44X85X1.6)

90461-MJ0-000

Unavailable

22

WASHER (44X74X3.2) This part replaces 90462-MB0-770.

90462-MJ0-000

Unavailable

22

WASHER (44X74X3.2)

90462-MJ0-000

Unavailable

23

CIRCLIP (INNER) (95MM)

90601-MB0-771

$11.30

24

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$15.40

25

BEARING, NEEDLE (35X42X30) (TOYO)

91024-MB0-003

$86.11

25

BEARING, NEEDLE (35X42X30) (TOYO) This part replaces 91024-MB0-004.

91024-MB0-003

$86.11

26

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
