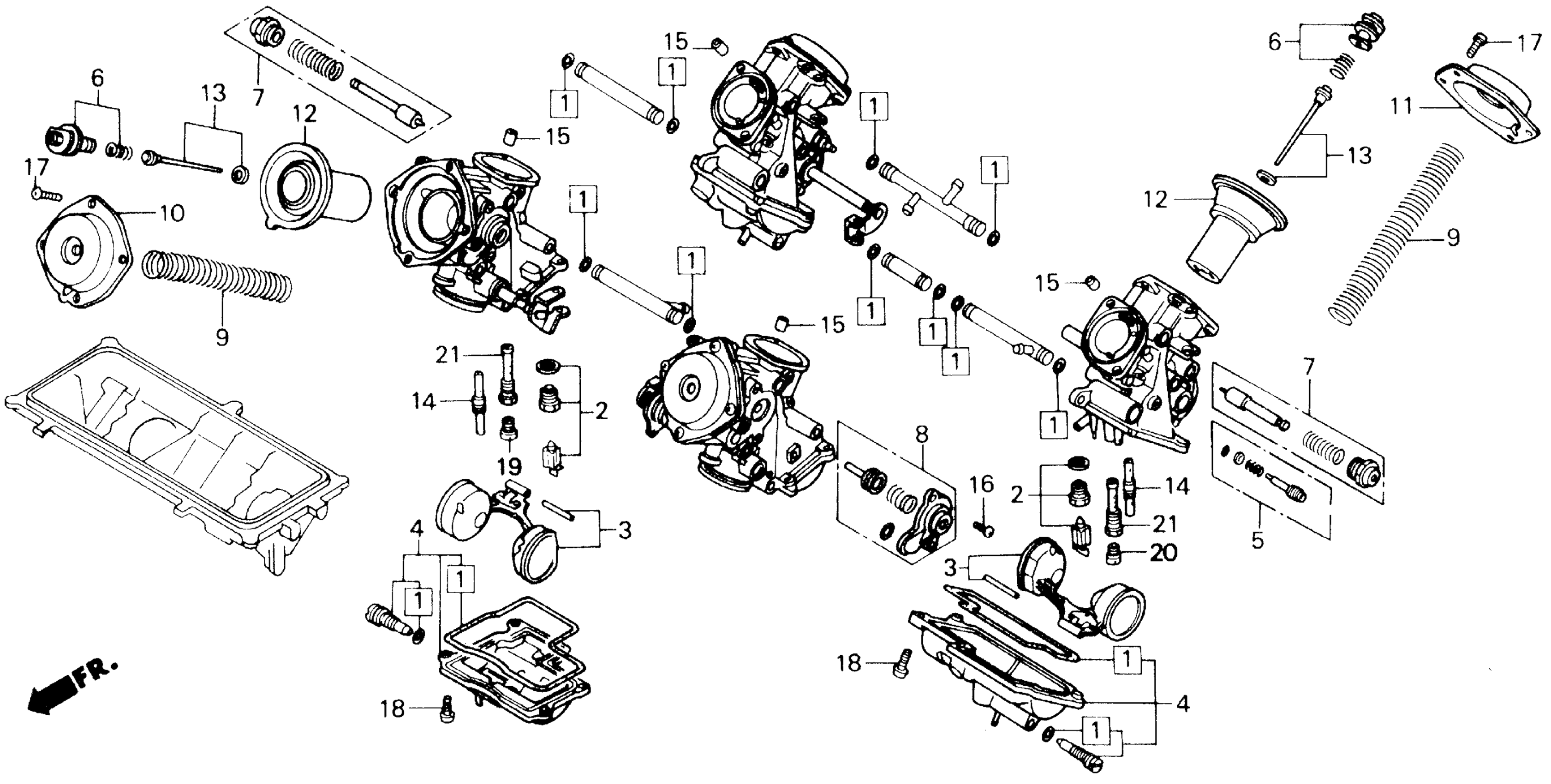

Honda VF700CAC (87) MAGNA, USA, VIN# 1HFRC211-HA305003 TO 1HFRC211-HA311015 CARBURETOR (COMPONENTS) Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-MN0-004.

16010-MB0-505

$55.39

1

GASKET SET This part replaces 16010-MN2-631.

16010-MB0-505

$55.39

2

VALVE SET, FLOAT

16011-MF2-751

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-MN0-014.

16011-MF2-751

Unavailable

3

FLOAT SET

16013-MAH-000

$45.47

3

FLOAT SET This part replaces 16013-ML7-004.

16013-MAH-000

$45.47

4

CHAMBER SET, FLOAT

16015-MAH-750

Unavailable

4

CHAMBER SET, FLOAT This part replaces 16015-MB0-871.

16015-MAH-750

Unavailable

4

CHAMBER SET, FLOAT This part replaces 16015-MN2-631.

16015-MAH-750

Unavailable

5

SCREW SET This part replaces 16016-MF5-671.

16016-MAH-670

$24.30

6

PLATE SET, VALVE

16037-HM5-L00

$18.62

6

PLATE SET, VALVE This part replaces 16037-KM3-751.

16037-HM5-L00

$18.62

7

VALVE SET, STARTER

16046-MG9-681

$64.25

8

VALVE SET, AIR CUT

16048-MK3-771

Unavailable

9

SPRING, FR. VACUUM PISTON

16050-MB0-671

Unavailable

10

TOP

16107-KM3-702

Unavailable

11

TOP

16107-MN0-004

Unavailable

12

PISTON, VACUUM

16111-MN0-004

Unavailable

13

NEEDLE, RR. JET (NOT AVAILABLE) This part replaces 16131-MB0-701.

16151-MB0-771

Unavailable

14

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-MN0-004

Unavailable

15

PIN, KNOCK

16178-MB0-671

$4.75

16

SCREW, PAN (4X8)

93500-04008-0H

$0.84

17

SCREW, PAN (4X10)

93500-04010-0A

$0.84

18

SCREW-WASHER (4X16)

93892-04016-00

$0.49

19

JET, MAIN (#105)

99101-GHB-1050

$6.11

19

JET, MAIN (#105) This part replaces 99101-393-1050.

99101-GHB-1050

$6.11

20

JET, MAIN (#108) This part replaces 99101-GHB-1080.

99101-MAZ-1080

$8.23

20

JET, MAIN (#108) This part replaces 99101-393-1080.

99101-MAZ-1080

$8.23

21

JET, SLOW (#35) This part replaces 99103-437-0350.

99103-MT2-0350

$13.62
