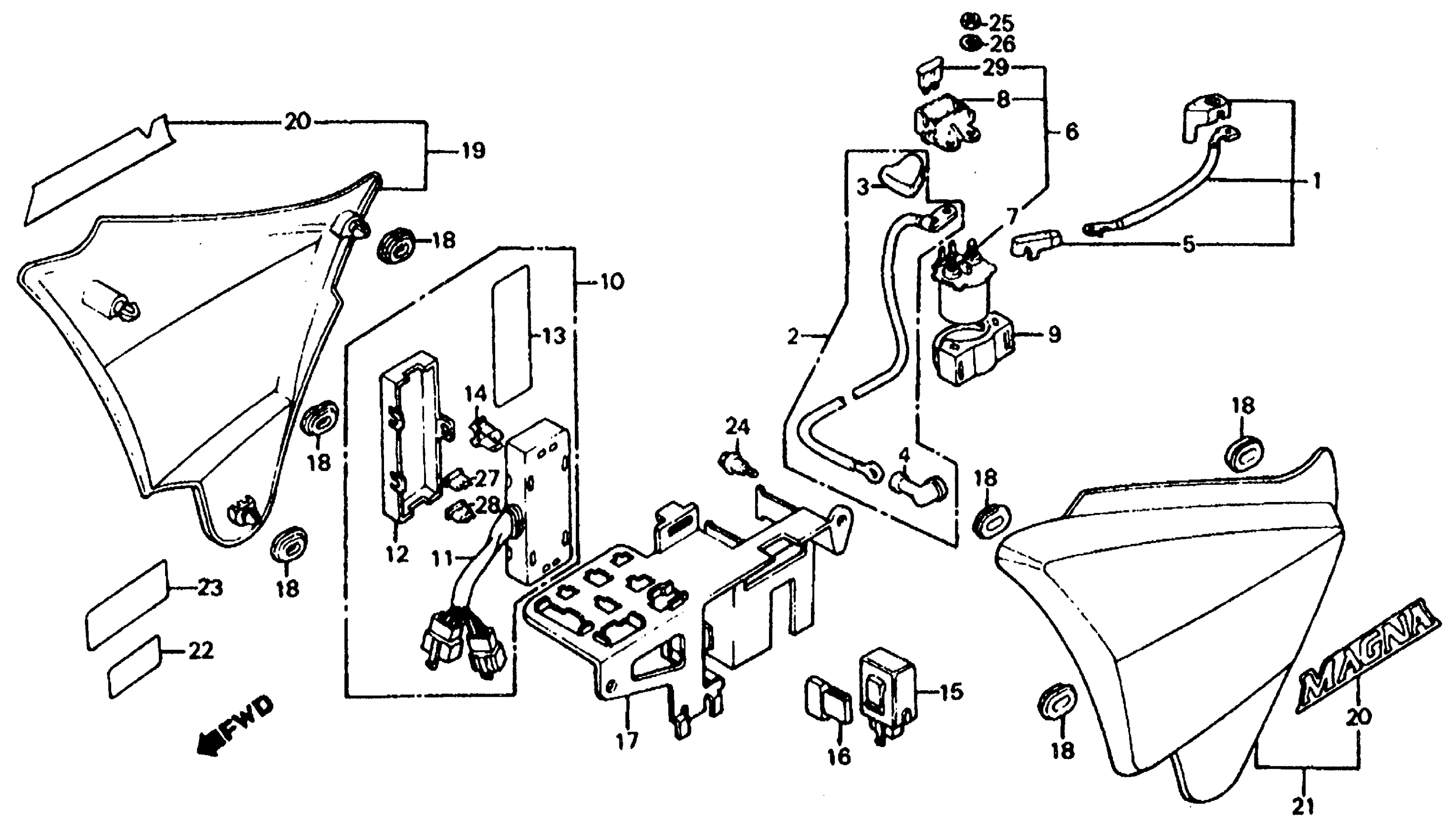

Honda VF700CAC (86) MAGNA, JPN, VIN# JH2RC211-GM200001 TO JH2RC211-GM201250 SIDE COVER 85-86 Diagram

#

Description
Price

1

CABLE, STARTER BATTERY

32401-MK3-000

Unavailable

2

CABLE, STARTER MOTOR

32402-MK3-000

Unavailable

3

COVER, MAGNETIC SWITCH TERMINAL | Use up to Frame SN GM200576

32411-MB0-000

Unavailable

3

COVER B, STARTER MAGNETIC (NOT AVAILABLE) | Use from Frame SN GM200577

32414-MK3-000

Unavailable

4

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

4

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

5

COVER A, STARTER MAGNETIC

32404-MK3-000

Unavailable

6

SWITCH ASSY., STARTER MAGNETIC

35850-MK3-671

$127.45

7

SWITCH, STARTER MAGNETIC

35851-MF5-751

$106.43

8

HOLDER ASSY., FUSE

35855-MG7-751

$37.26

9

RUBBER, SHOCK ABSORBER

35856-MF5-751

$10.03

10

BOX ASSY., FUSE This part replaces 38200-MK3-015.

38200-MK3-505

Unavailable

11

BOX ASSY., FUSE This part replaces 38201-MK3-015.

38200-MK3-505

Unavailable

12

COVER, FUSE

38202-MK3-015

Unavailable

13

LABEL, FUSE This part replaces 38215-MK3-671.

38215-MR1-670

Unavailable

13

LABEL, FUSE

38215-MR1-670

Unavailable

14

PULLER, FUSE (DAIICHI)

38235-SA5-004

Unavailable

15

RELAY, TURN SIGNAL (TATEISHI)

38301-MF8-771

$103.03

15

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-MF8-773.

38301-KK9-952

$67.94

15

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-MG9-681.

38301-KK9-952

$67.94

16

SUSPENSION, TURN SIGNAL RELAY

38306-KJ6-740

$7.49

17

PLATE, ELECTRIC

50325-MK3-000

Unavailable

18

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

19

COVER SET, R. SIDE *NH1Z* (BLACK-Z) (NOT AVAILABLE)

836A0-MK3-000ZA

Unavailable

19

COVER SET, R. SIDE *R101CU* (CANDY GLORY RED-U) (NOT AVAILABLE)

836A0-MK3-000ZC

Unavailable

20

LABEL, SIDE COVER

83605-MK3-300

Unavailable

21

COVER SET, L. SIDE *NH1Z* (BLACK-Z) (NOT AVAILABLE)

837A0-MK3-000ZA

Unavailable

21

COVER SET, L. SIDE *R101CU* (CANDY GLORY RED-U)

837A0-MK3-000ZC

Unavailable

22

LABEL, RESERVE TANK (NOT AVAILABLE)

87507-371-671

Unavailable

23

MARK, RADIATOR CAUTION (NOT AVAILABLE)

87508-415-670

Unavailable

24

BOLT, FLANGE (6MM)

90111-187-000

$5.59

25

NUT, HEX. (6MM)

94002-06080-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94002-06080-00.

94002-06080-0S

$1.49

26

WASHER, SPRING (6MM)

94111-06800

$1.49

27

FUSE, BLADE (10A)

98200-31000

$1.49

28

FUSE, BLADE (15A)

98200-31500

$1.49

29

FUSE, BLADE (30A)

98200-33000

$1.49
