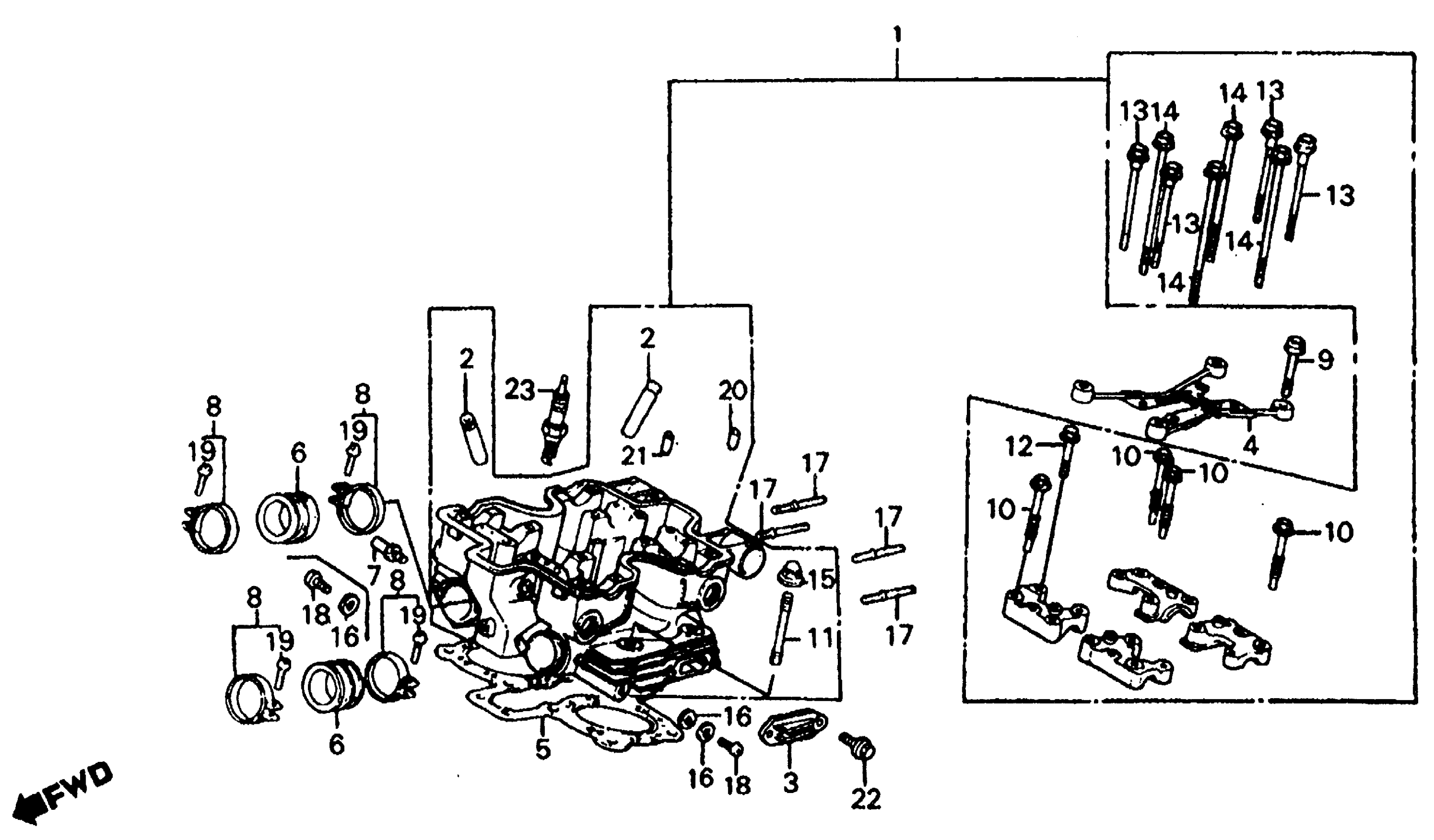

Honda VF700CAC (86) MAGNA, JPN, VIN# JH2RC211-GM200001 TO JH2RC211-GM201250 REAR CYLINDER HEAD 86 Diagram

#

Description
Price

1

CYLINDER HEAD ASSY., RR.

12020-MK3-780

Unavailable

2

GUIDE, VALVE (OS) This part replaces 12204-MB0-405.

12204-MS2-305

Unavailable

2

GUIDE, VALVE (OS)

12204-MS2-305

Unavailable

4

PIPE A, OIL PASSAGE (NOT AVAILABLE)

12230-MB0-010

Unavailable

5

GASKET, CYLINDER HEAD This part replaces 12251-MB0-003.

12251-MN0-505

Unavailable

5

GASKET, CYLINDER HEAD This part replaces 12251-MB0-306.

12251-MN0-505

Unavailable

5

GASKET, CYLINDER HEAD

12251-MN0-505

Unavailable

6

INSULATOR, CARBURETOR

16211-MB0-000

$33.34

7

JOINT, BOOSTER

16214-MB0-000

$4.76

8

BAND, INSULATOR This part replaces 16219-MB0-770.

16223-KS5-000

$14.20

8

BAND, INSULATOR

16223-KS5-000

$14.20

9

BOLT, FLANGE (6X52) This part replaces 90001-MB0-000.

90009-HA0-000

$4.24

10

BOLT, FLANGE (6X62)

90003-MB6-680

Unavailable

11

BOLT, STUD (9X99)

90005-MB6-680

Unavailable

12

BOLT, FLANGE (6X40)

90008-GE0-710

Unavailable

13

BOLT, UBS (8X151)

90012-KE8-000

Unavailable

14

BOLT, UBS (9X175)

90012-MB6-003

Unavailable

15

NUT, CAP (9MM)

90232-MB6-680

$3.89

16

WASHER, SEALING (5MM)

90452-323-000

$1.59

17

BOLT, STUD (6X50) This part replaces 90063-235-000.

92700-06050-0E

$1.54

17

BOLT, STUD (6X50) This part replaces 92700-06045-0E.

92700-06050-0E

$1.54

17

BOLT, STUD (6X50)

92700-06050-0E

$1.54

18

SCREW, PAN (5X8)

93500-05008-0G

$1.49

19

SCREW, PAN (5X28)

93500-05028-0G

$1.49

20

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

21

PIN A, DOWEL (12X20)

94301-12200

$2.29

23

SPARK PLUG (DPR7EA-9) (NGK) | (Optional).

98069-57916

$2.62

23

SPARK PLUG (X22EPR-U9) (DENSO) | (Optional).

98069-57926

$2.54

23

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

23

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

23

SPARK PLUG (DPR9EA-9) (NGK) | (Optional).

98069-59916

$2.62

23

SPARK PLUG (X27EPR-U9) (DENSO) | (Optional).

98069-59926

$2.54
