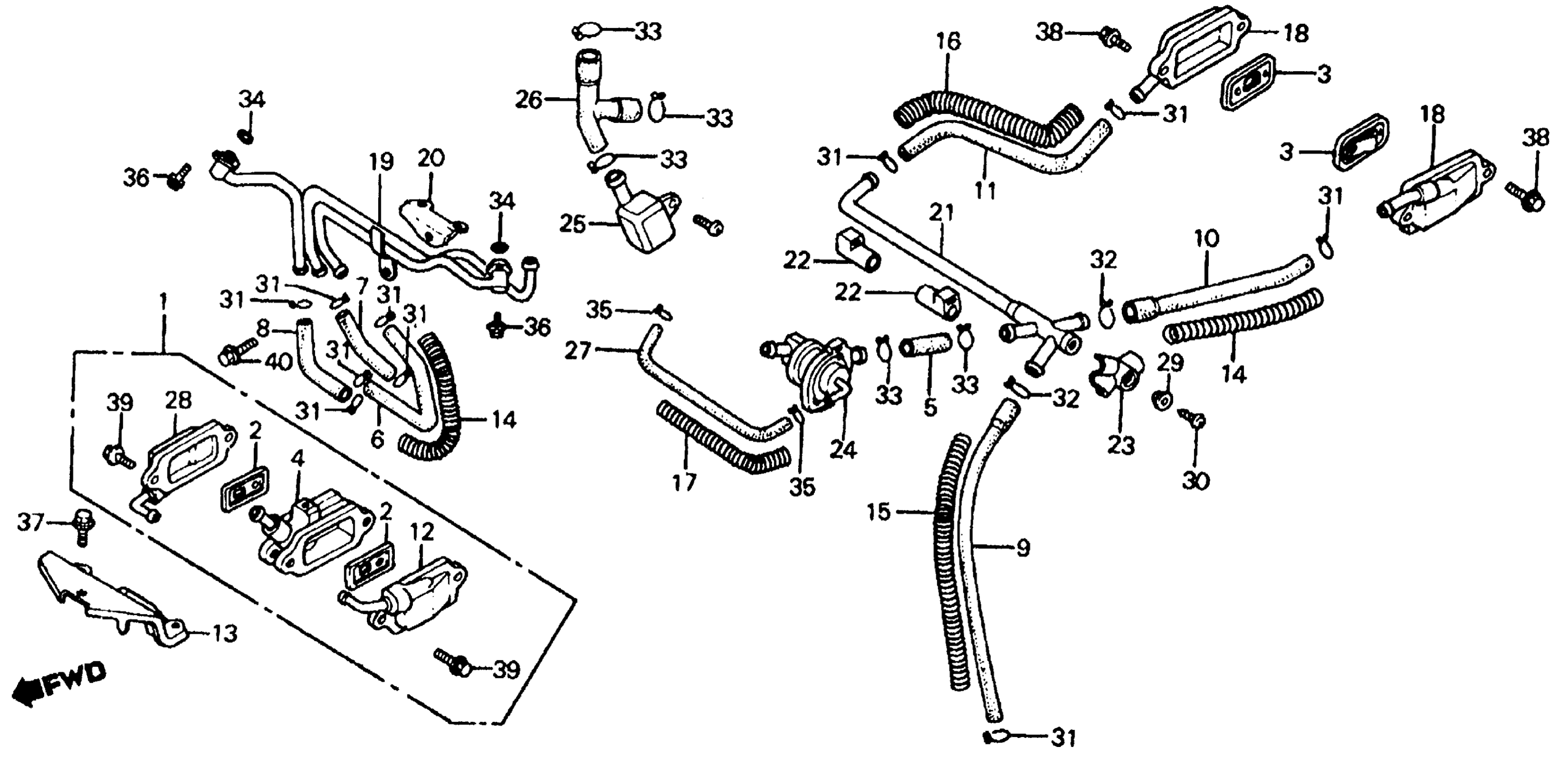

Honda VF700CAC (86) MAGNA, JPN, VIN# JH2RC211-GM200001 TO JH2RC211-GM201250 AIR INJ. CONTROL VALVE Diagram

#

Description
Price

1

VALVE ASSY., AIR SUCTION

18600-MK3-781

Unavailable

2

VALVE, REED This part replaces 18601-MG9-005.

18601-MJ1-791

$22.10

3

VALVE, REED This part replaces 18601-MJ1-790.

18601-MJ1-791

$22.10

4

BODY, AIR SUCTION VALVE

18610-MK3-781

Unavailable

5

TUBE, AIR INJECTION CONTROL VALVE

18613-MK3-780

Unavailable

6

TUBE A, FR. AIR

18614-MK3-780

Unavailable

7

TUBE B, FR. AIR

18615-MK3-780

Unavailable

8

TUBE C, FR. AIR

18616-MK3-780

Unavailable

9

TUBE D, FR. AIR

18617-MK3-780

Unavailable

10

TUBE A, RR. AIR

18618-MK3-780

Unavailable

11

TUBE B, RR. AIR (NOT AVAILABLE)

18619-MK3-780

Unavailable

12

COVER, AIR SUCTION VALVE

18620-MK3-781

Unavailable

13

STAY, AIR SUCTION VALVE

18625-MK3-782

Unavailable

14

WIRE A, GUARD

18626-MK3-780

Unavailable

15

WIRE B, GUARD

18627-MK3-781

Unavailable

16

WIRE C, GUARD

18628-MK3-780

Unavailable

17

WIRE D, GUARD

18629-MK3-780

Unavailable

18

COVER B, AIR SUCTION VALVE

18630-MK3-781

Unavailable

19

PIPE, FR. AIR

18640-MK3-781

Unavailable

20

PLATE SET, AIR PIPE

18644-MK3-780

Unavailable

21

JOINT, AIR PIPE FOUR-WAY

18645-MK3-780

Unavailable

22

RUBBER, AIR PIPE FOUR-WAY JOINT MOUNTING (NOT AVAILABLE)

18646-MK3-780

Unavailable

23

COVER, AIR PIPE JOINT

18647-MK3-780

Unavailable

24

VALVE ASSY., AIR INJECTION CONTROL | Use up to Engine SN 2202573 This part replaces 18650-MK3-781.

18650-MK3-783

Unavailable

24

VALVE ASSY., AIR INJECTION CONTROL | Use up to Engine SN 2202573 This part replaces 18650-MK3-782.

18650-MK3-783

Unavailable

24

VALVE ASSY., AIR INJECTION CONTROL

18650-MK3-783

Unavailable

25

TANK, AIR IN. CONTROL VALVE CHAMBER

18652-MK3-780

Unavailable

26

TUBE (THREE-WAY)

18653-MK3-780

Unavailable

27

TUBE, BOOST

18654-MK3-780

Unavailable

28

COVER C, AIR SUCTION VALVE

18660-MK3-781

Unavailable

29

COLLAR, RADIATOR DUCT

61315-MJ4-000

Unavailable

30

SCREW, SPECIAL (6X10)

90190-MJ8-000

Unavailable

31

CLIP, TUBE (B14)

90641-MK3-780

Unavailable

32

CLIP, TUBE (B16)

90643-MK3-781

$2.25

33

CLIP, TUBE (B20)

90653-MK3-780

$2.00

34

O-RING (9.8X1.9)

91305-PE2-003

$2.45

35

CLIP, TUBE (B6.5)

95002-02650

$1.49

36

BOLT, FLANGE (6X16) This part replaces 95700-06016-07.

95701-06016-07

$1.55

36

BOLT, FLANGE (6X16)

95701-06016-07

$1.55

37

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

37

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

38

BOLT, FLANGE (6X18) This part replaces 96000-06018-07.

96001-06018-07

$1.49

38

BOLT, FLANGE (6X18)

96001-06018-07

$1.49

39

BOLT, FLANGE (6X20) This part replaces 96000-06020-07.

96001-06020-07

$1.49

39

BOLT, FLANGE (6X20)

96001-06020-07

$1.49

40

BOLT, FLANGE (6X10)

96001-06010-07

$1.62
