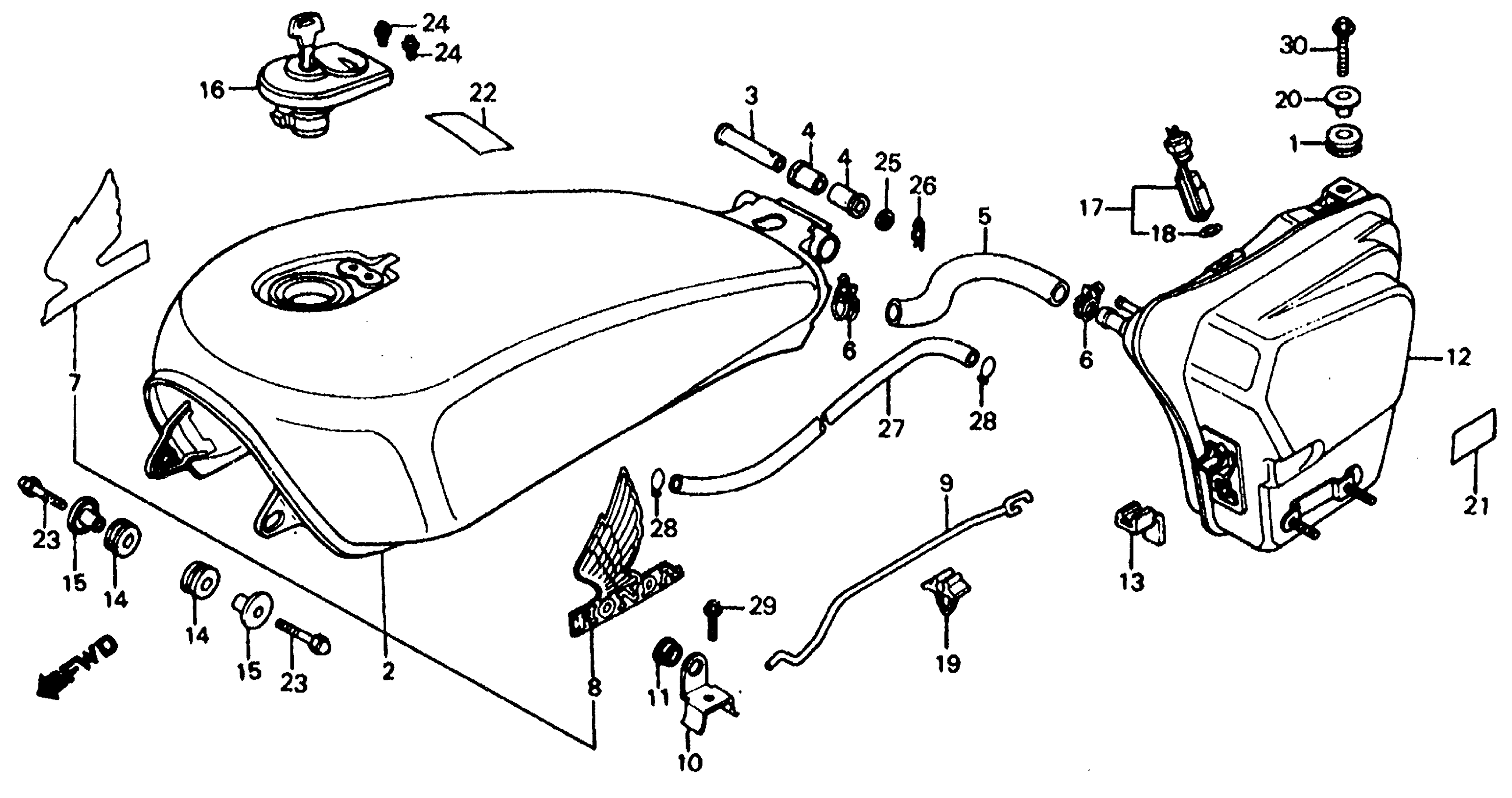

Honda VF700CAC (84) MAGNA, JPN, VIN# JH2RC211-EM000003 TO JH2RC211-EM002300 FUEL TANK 84 Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

2

TANK, FUEL *NH1Z* (BLACK-Z) (NOT AVAILABLE)

175A1-MB1-880ZA

Unavailable

2

TANK, FUEL *R131CU* (CANDY ANDROMEDA RED) (NOT AVAILABLE)

175A1-MB1-880ZB

Unavailable

3

SHAFT, FUEL TANK PIVOT (NOT AVAILABLE)

17505-MB1-000

Unavailable

4

RUBBER, FUEL TANK PIVOT

17506-MB1-000

$4.40

5

TUBE A, FUEL

17511-MB1-000

$49.54

6

BAND, FUEL TUBE

17519-MB1-000

Unavailable

7

EMBLEM, R. FUEL TANK

17531-MB4-770

Unavailable

8

EMBLEM, L. FUEL TANK

17532-MB4-770

Unavailable

9

STAY, FUEL TANK SUPPORT (NOT AVAILABLE)

17540-MB1-000

Unavailable

10

STAY, FUEL TANK PIVOT

17545-MB1-000

Unavailable

11

GROMMET

17548-MB1-000

Unavailable

12

SUB-TANK, FUEL

17550-MB1-000

Unavailable

13

RUBBER, FUEL TANK MOUNTING (NOT AVAILABLE)

17552-MB1-000

Unavailable

14

RUBBER, FR. FUEL TANK

17611-MB1-000

$3.67

15

COLLAR, FR. FUEL TANK MOUNTING

17612-MB1-000

$19.34

16

CAP, FUEL FILLER

17620-ME5-761

Unavailable

17

SENSOR, FUEL RESERVE

37810-MB1-008

Unavailable

18

GASKET, FUEL RESERVE SENSOR

37811-MB1-008

$2.92

19

CLIP S, BRAKE PIPE

46391-692-003

Unavailable

20

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

20

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

20

COLLAR, RR. FENDER

61105-428-000

Unavailable

21

DIAGRAM, VACUUM HOSE ROUTING (NOT AVAILABLE)

87135-MB1-880

Unavailable

22

LABEL, DRIVE CAUTION *A73* (TYPEG) (GOLD) (NOT AVAILABLE)

87560-181-760ZC

Unavailable

23

BOLT, CAP (6X20) This part replaces 92600-06020-0B.

92601-06020-0B

$2.89

24

SCREW-WASHER (4X6) | Use from Frame SN EM001101

45319-634-003

$2.48

24

SCREW-WASHER (4X8) | Use up to Frame SN EM001100

93892-04008-08

$1.49

25

WASHER, PLAIN (8MM)

94101-08800

$1.93

26

PIN, LOCK (8MM)

94251-08400

Unavailable

27

*95001-55003-50M This part replaces 95001-55008-20M.

95001-55008-50M

Unavailable

28

CLIP, TUBE (A12)

95002-01120

$2.75

29

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

29

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

30

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

30

BOLT, FLANGE (6X25)

95701-06025-08

$1.72
