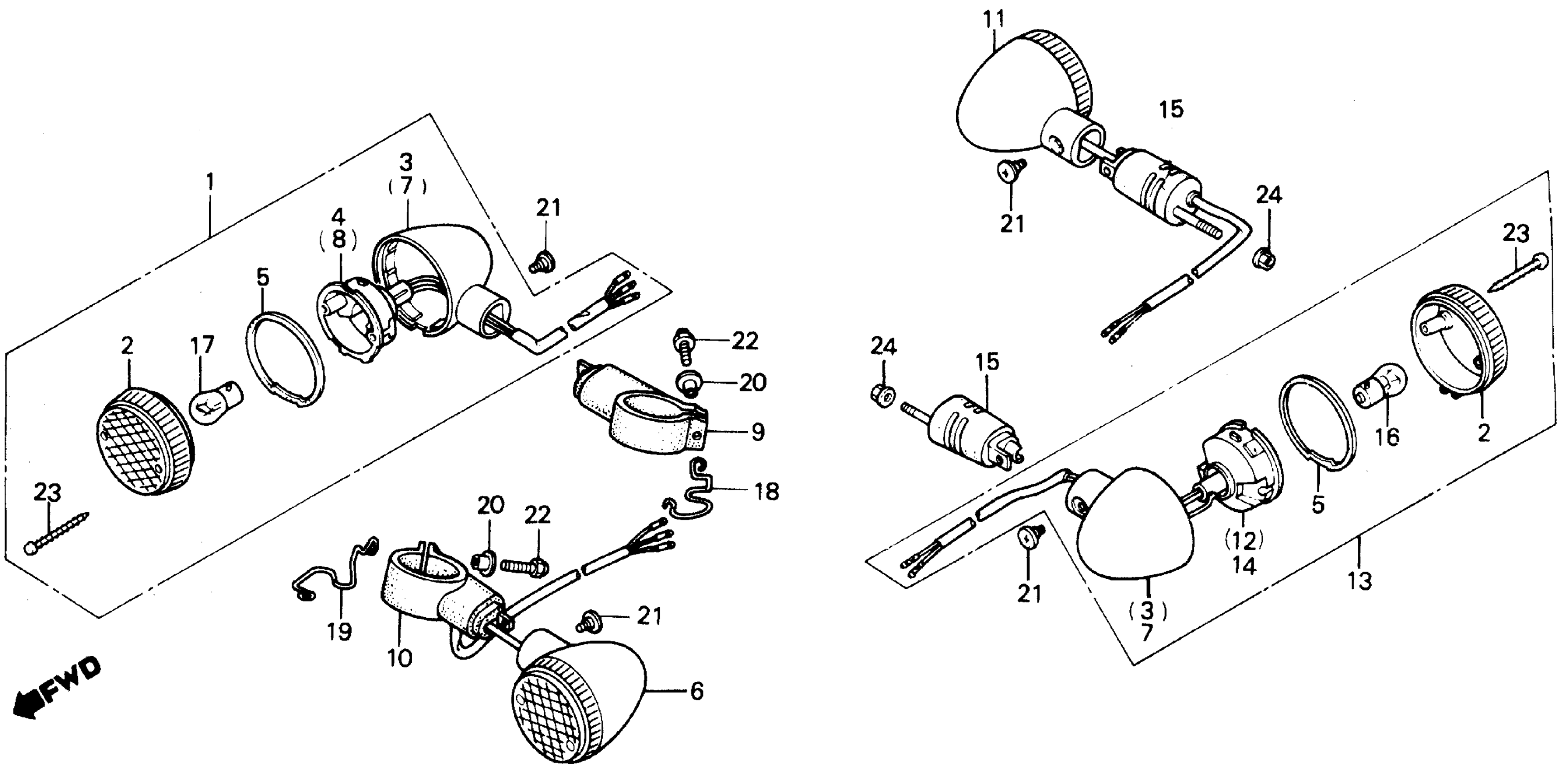

Honda VF700CA (87) MAGNA, USA, VIN# 1HFRC210-HA305001 TO 1HFRC210-HA310415 TURN SIGNAL Diagram

#

Description
Price

1

TURN SIGNAL ASSY., R. FR. (12V 23/8W)

33400-MK7-P00

Unavailable

1

TURN SIGNAL ASSY., R. FR. (12V 23/8W) This part replaces 33400-MN0-003.

33400-MK7-P00

Unavailable

2

LENS, FR. TURN SIGNAL

33401-MK7-672

$13.43

3

BASE, R. FR. TURN SIGNAL

33402-MK7-671

Unavailable

4

REFLECTOR, R. RR. TURN SIGNAL

33405-MN0-003

Unavailable

5

GASKET, TURN SIGNAL LENS

33407-MK7-671

$4.67

6

TURN SIGNAL ASSY., L. FR.

33450-MN0-003

Unavailable

7

BASE, L. FR. TURN SIGNAL

33452-MK7-671

Unavailable

8

REFLECTOR, L. RR. TURN SIGNAL

33455-MN0-003

$17.69

9

STAY, R. FR. TURN SIGNAL

33490-MN0-003

Unavailable

10

STAY, L. FR. TURN SIGNAL

33491-MN0-003

Unavailable

11

TURN SIGNAL ASSY., R. RR. (12V 23W)

33600-MN0-003

Unavailable

12

REFLECTOR, R. RR. TURN SIGNAL

33605-MN0-003

Unavailable

13

TURN SIGNAL ASSY., L. RR. (12V 23W)

33650-MN0-003

Unavailable

14

REFLECTOR, L. RR. TURN SIGNAL

33655-MN0-003

Unavailable

15

STAY,COMP.,RR WIN This part replaces 33690-MK7-671.

33690-MK7-505

Unavailable

16

BULB, TURN SIGNAL (12V23W32CP) (1073) (STANLEY)

34905-268-671

$2.79

17

BULB, TURN SIGNAL (12V23/8W) (1034HD) (STANLEY)

34905-425-671

$6.67

18

GUIDE, R. HARNESS

61315-MN0-000

Unavailable

19

GUIDE, L. HARNESS

61316-MN0-000

Unavailable

20

COLLAR, COVER MOUNTING

83505-MN0-000

$6.61

21

SCREW, SPECIAL (6X8)

90380-MB1-000

$4.96

21

SCREW, SPECIAL (6X8) This part replaces 90380-ME9-000.

90380-MB1-000

$4.96

22

BOLT, CAP (6X25) This part replaces 92500-06025-0G.

92501-06025-0G

$2.92

22

BOLT, CAP (6X25)

92501-06025-0G

$2.92

23

SCREW, TAPPING (4X25)

93901-34610

$1.49

24

NUT, FLANGE (8MM)

94050-08080

$1.49
