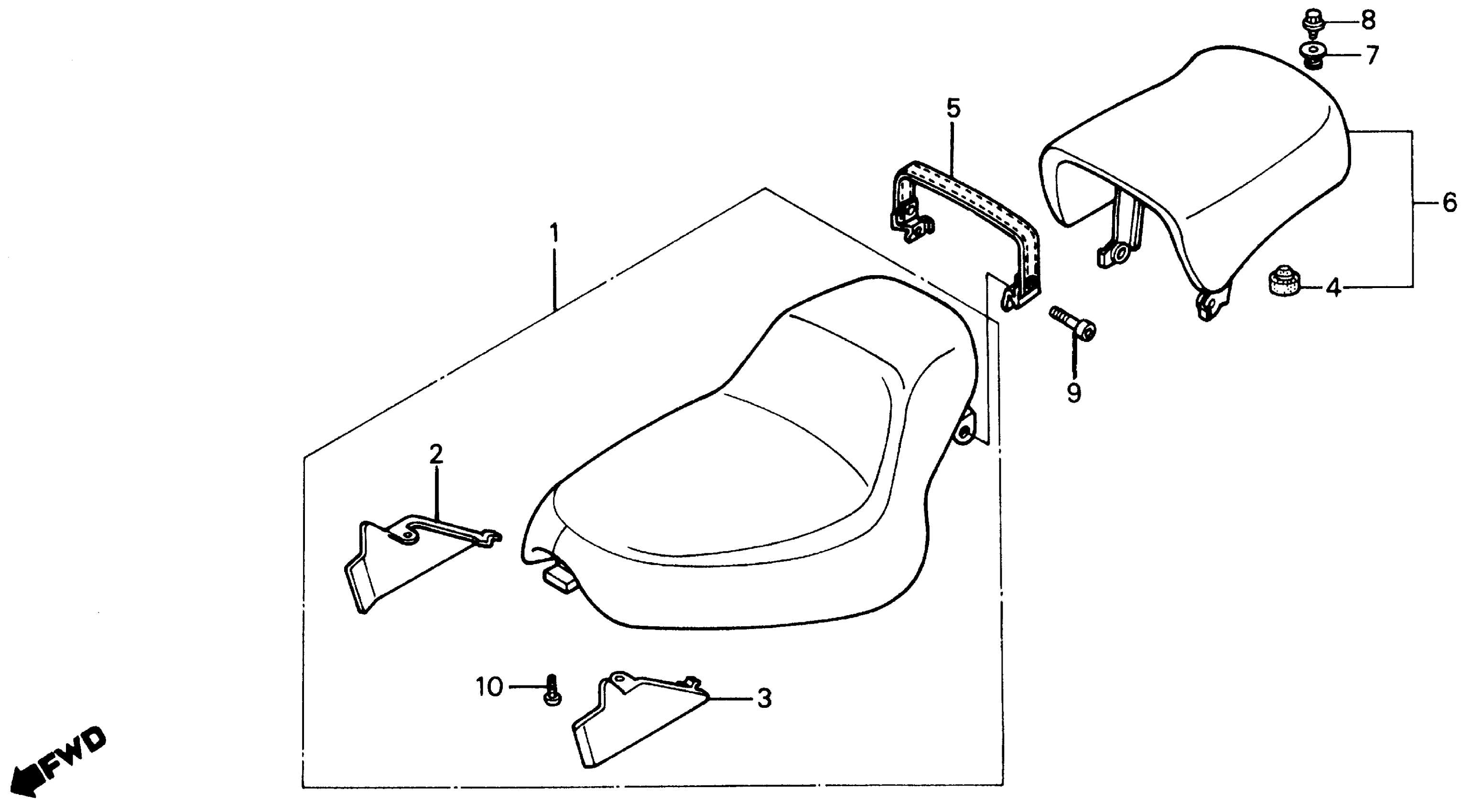

Honda VF700CA (87) MAGNA, USA, VIN# 1HFRC210-HA305001 TO 1HFRC210-HA310415 SEAT Diagram

#

Description

Price

1

SEAT ASSY., FR. This part replaces 77100-MN0-000.

77100-MN2-671

Unavailable

1

SEAT ASSY., FR.

77100-MN2-671

Unavailable

2

PLATE, R. FR. SEAT

77104-MN0-000

Unavailable

3

PLATE, L. FR. SEAT

77105-MN0-000

Unavailable

4

RUBBER, SEAT SETTING

77206-GF0-000

$5.46

5

SEAT BELT (NOT AVAILABLE)

77210-MN0-000

Unavailable

6

SEAT ASSY., RR. This part replaces 77300-MN0-000.

77300-MN2-670

Unavailable

6

SEAT ASSY., RR.

77300-MN2-670

Unavailable

7

RUBBER, RR. SEAT SETTING (NOT AVAILABLE)

77304-MN0-000

Unavailable

8

BOLT, FLANGE (8X10)

90158-MN0-000

Unavailable

9

BOLT, SOCKET (8X32)

90160-MN0-000

$4.13

10

SCREW, TAPPING (4X12)

93901-24320

$1.49
