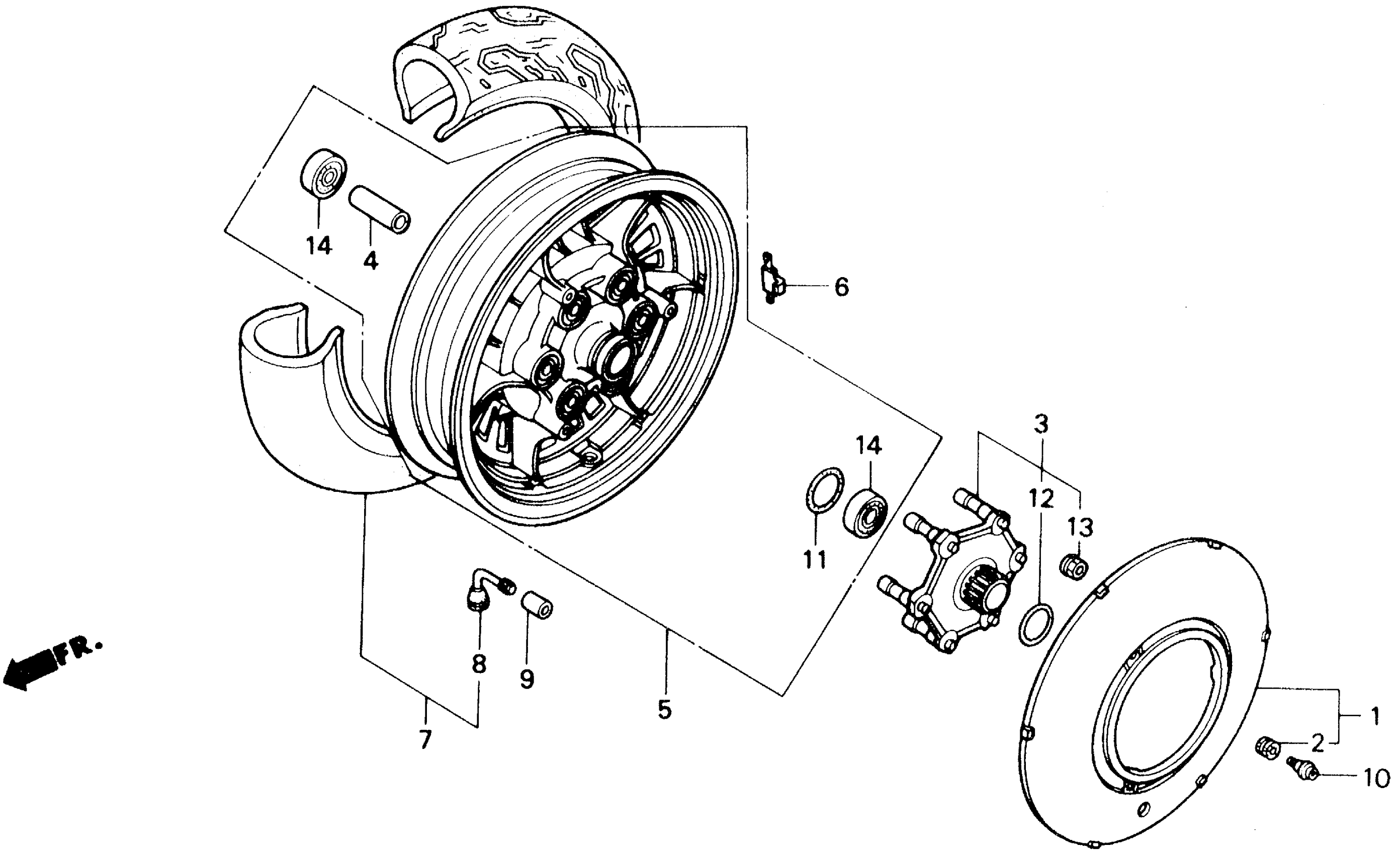

Honda VF700CA (87) MAGNA, USA, VIN# 1HFRC210-HA305001 TO 1HFRC210-HA310415 REAR WHEEL Diagram

#

Description
Price

1

COVER, RR. WHEEL (NOT AVAILABLE)

42200-MN0-000

Unavailable

2

GROMMET, RR. WHEEL COVER (NOT AVAILABLE)

42220-MN0-300

Unavailable

3

FLANGE SET, FINAL DRIVEN This part replaces 42610-MG8-770.

42630-MG8-305

Unavailable

3

FLANGE SET, FINAL DRIVEN This part replaces 42610-MG8-771.

42630-MG8-305

Unavailable

3

FLANGE SET, FINAL DRIVEN

42630-MG8-305

Unavailable

4

COLLAR, RR. DISTANCE

42620-ME1-405

Unavailable

4

COLLAR, RR. DISTANCE This part replaces 42620-MN0-000.

42620-ME1-405

Unavailable

5

WHEEL SET, RR. This part replaces 42650-MN0-305.

42650-MN0-315

Unavailable

5

WHEEL SET, RR.

42650-MN0-315

Unavailable

6

WEIGHT, BALANCE (10G)

42704-MN0-000

Unavailable

6

WEIGHT, BALANCE (20)

42705-MN0-000

Unavailable

6

WEIGHT, BALANCE (30)

42706-MN0-000

Unavailable

7

TIRE, RR. (150/80-15) (M/C 70V) (DUNLOP) This part replaces 42710-MN0-003.

42711-MZ5-024

$188.15

7

TIRE, RR. (150/80-15) (M/C 70V) (DUNLOP) This part replaces 42710-MN0-004.

42711-MZ5-024

$188.15

7

TIRE, RR. (150/80-15) (M/C 70V) (DUNLOP) This part replaces 42710-MN0-014.

42711-MZ5-024

$188.15

7

TIRE, RR. (150/80-15) (M/C 70V) (DUNLOP) This part replaces 42710-MZ5-004.

42711-MZ5-024

$188.15

7

TIRE, RR. (150/80-15) (M/C 70V) (DUNLOP) This part replaces 42711-MZ5-004.

42711-MZ5-024

$188.15

7

TIRE, RR. (150/80-15) (M/C 70V) (DUNLOP) This part replaces 42711-MZ5-014.

42711-MZ5-024

$188.15

7

TIRE, RR. (150/80-15) (M/C 70V) (DUNLOP)

42711-MZ5-024

$188.15

8

VALVE, RIM (BS) (NOT AVAILABLE)

42753-MN0-003

Unavailable

8

VALVE, RIM (BS) (NOT AVAILABLE) This part replaces 42753-MN0-004.

42753-MN0-003

Unavailable

9

TUBE, RIM VALVE (NOT AVAILABLE)

42754-MN0-000

Unavailable

10

BOLT, SOCKET (5X10)

90128-MN0-000

$3.78

11

O-RING (61X2)

91302-MA6-003

$5.17

12

O-RING (46.5X3.5)

91358-MB0-000

$3.76

13

NUT, FLANGE (10MM)

94050-10080

$3.24

14

BEARING, RADIAL BALL (6204UU)

96150-62040-10

$18.44
