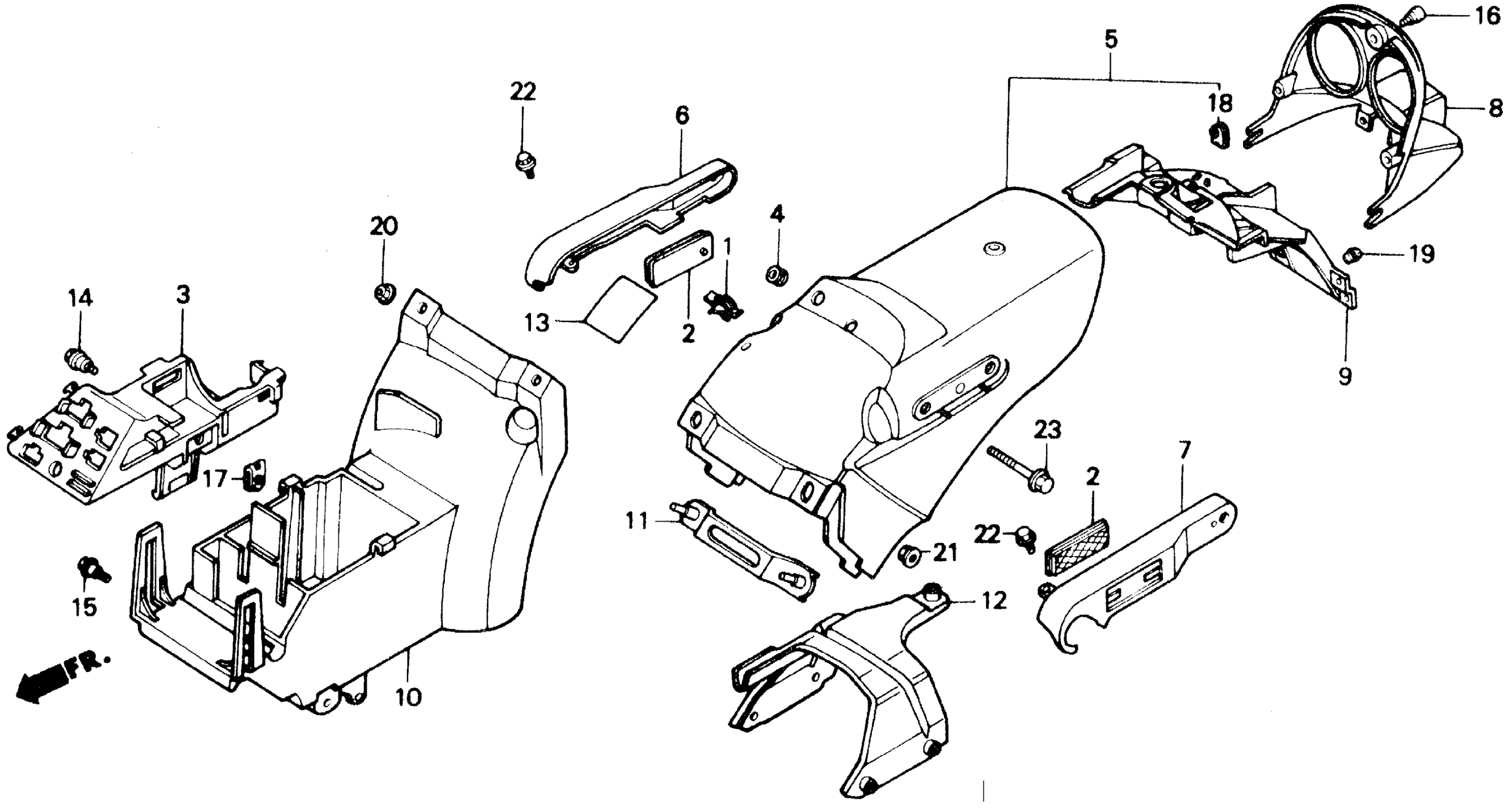

Honda VF700CA (87) MAGNA, USA, VIN# 1HFRC210-HA305001 TO 1HFRC210-HA310415 REAR FENDER Diagram

#

Description
Price

1

CLIP B, HARNESS

32172-GJ1-003

$3.73

2

REFLECTOR, REFLEX (NOT AVAILABLE)

33742-MN0-003

Unavailable

3

PLATE, ELECTRIC

50326-MN0-000

Unavailable

4

GROMMET B, METER CASE

66219-634-000

Unavailable

5

COWL, RR. *PB161CU* (CANDY WAVE BLUE-U)

77200-MN0-P00ZA

Unavailable

5

COWL, RR. *R107CU* (CANDY BOURGOGNE RED-U)

77200-MN0-P00ZB

Unavailable

5

COWL, RR. *PB161CU* (CANDY WAVE BLUE-U) This part replaces 77200-MN0-000ZA.

77200-MN0-P00ZA

Unavailable

5

COWL, RR. *R107CU* (CANDY BOURGOGNE RED-U) This part replaces 77200-MN0-000ZB.

77200-MN0-P00ZB

Unavailable

6

GRAB RAIL, R. This part replaces 77330-MN0-000.

77330-MN0-010

Unavailable

7

GRAB RAIL, L. This part replaces 77340-MN0-000.

77340-MN0-010

Unavailable

8

FENDER A, RR. (NOT AVAILABLE)

80100-MN0-000

Unavailable

9

FENDER (INNER) This part replaces 80101-MN0-000.

80101-MN2-000

Unavailable

9

FENDER (INNER)

80101-MN2-000

Unavailable

10

FENDER B, RR.

80105-MN0-000

Unavailable

11

STAY, RR. COWL SET (NOT AVAILABLE)

80106-MN0-000

Unavailable

12

PLATE, CROSS (INNER)

80110-MN0-000

Unavailable

13

MARK, BATTERY CAUTION

87506-MN0-300

Unavailable

14

BOLT, RR. FENDER

90003-GC3-000

Unavailable

15

BOLT, FLANGE (6MM)

90111-187-000

$5.59

16

BOLT, SOCKET (5X15)

90151-MN0-000

Unavailable

17

NUT, SPRING (5MM)

90320-HB9-000

$3.12

18

NUT, SPRING (5MM)

90320-MN0-000

Unavailable

19

PLUG, CONE TYPE

90899-422-610

$1.89

20

NUT, FLANGE (6MM)

94050-06080

$1.49

21

NUT, FLANGE (8MM)

94050-08080

$1.49

22

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

23

BOLT, FLANGE (8X40)

95701-08040-08

$2.28
