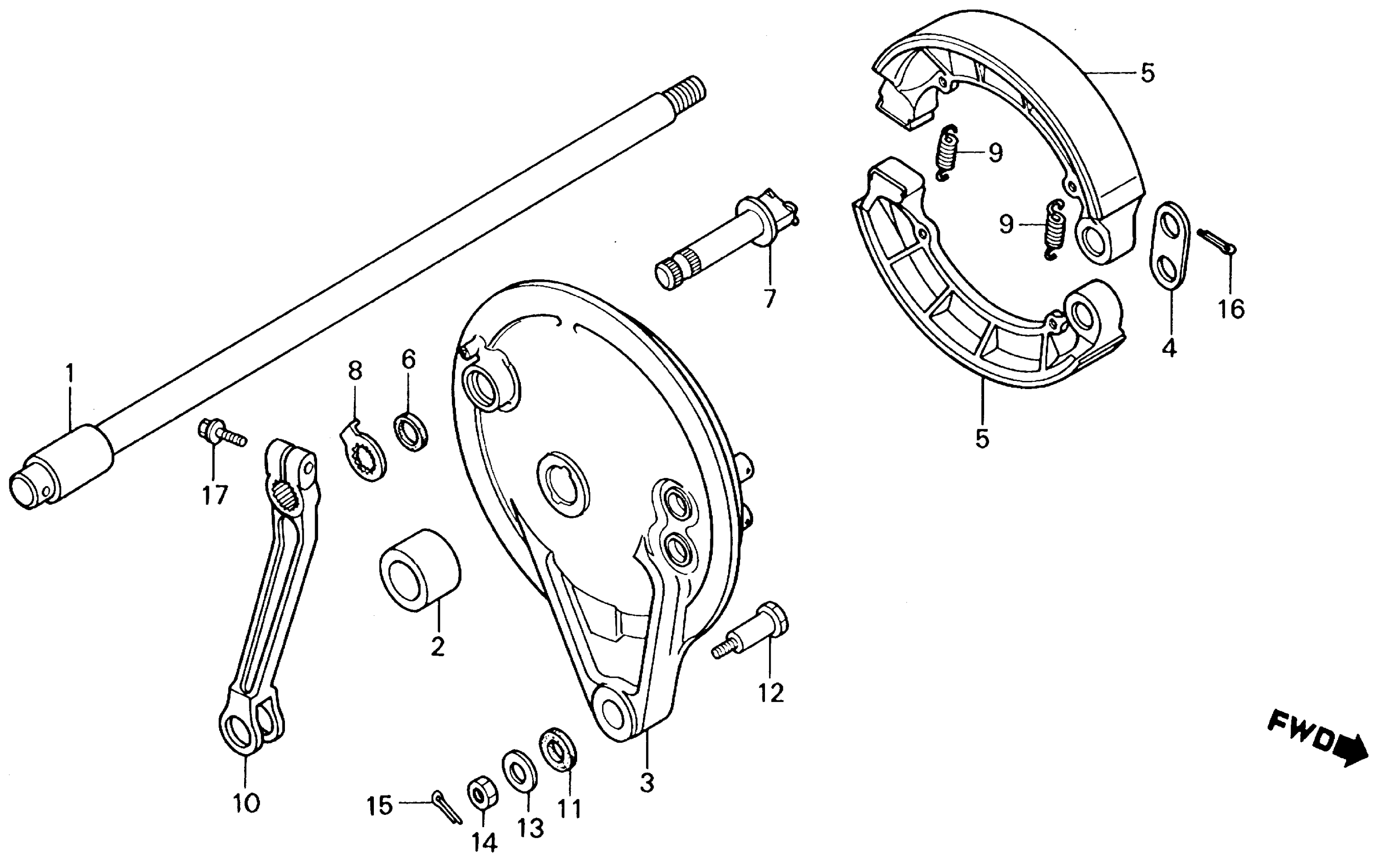

Honda VF700CA (87) MAGNA, USA, VIN# 1HFRC210-HA305001 TO 1HFRC210-HA310415 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE KIT, BRAKE This part replaces 06430-MJ1-006.

06430-MM8-881

$55.16

NI

SHOE KIT, BRAKE

06430-MM8-881

$55.16

NI

SHOE KIT, BRAKE This part replaces 431A2-MJ1-006.

06430-MM8-881

$55.16

1

AXLE, RR. WHEEL

42301-MN0-000

Unavailable

2

COLLAR, RR. WHEEL SIDE

42313-MN0-000

Unavailable

3

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-MN0-000

Unavailable

4

WASHER, ANCHOR PIN

43102-319-000

$6.21

5

SHOE KIT, BRAKE

06430-MM8-881

$55.16

5

SHOE KIT, BRAKE This part replaces 43120-MJ1-006.

06430-MM8-881

$55.16

5

SHOE KIT, BRAKE This part replaces 43120-MJ1-405.

06430-MM8-881

$55.16

6

DUST SEAL, BRAKE CAM

43134-300-000

$2.09

7

CAM, RR. BRAKE This part replaces 43141-MB0-000.

43141-MB0-010

$41.60

7

CAM, RR. BRAKE

43141-MB0-010

$41.60

8

INDICATOR, RR. BRAKE

43145-ME5-000

$5.84

9

SPRING, RR. BRAKE SHOE

43151-346-000

$5.90

10

ARM, RR. BRAKE This part replaces 43410-ME5-000.

43410-ME5-405

Unavailable

10

ARM, RR. BRAKE

43410-ME5-405

Unavailable

11

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

12

BOLT, RR. BRAKE STOPPER

90127-393-000

$4.85

13

WASHER A, HANDLE HOLDER SETTING This part replaces 90505-425-000.

90524-030-000

$1.49

13

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

14

NUT, HEX. (8MM)

94001-08000-0S

$1.49

15

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

15

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

15

PIN, COTTER (2.0X22)

94201-20220

$1.49

15

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

15

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

15

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

15

PIN, COTTER (2.0X35)

94201-20350

$1.49

15

PIN, COTTER (2.0X22)

94201-29220

$1.49

16

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

16

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

16

PIN, COTTER (2.5MM)

94201-25300

$1.49

17

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

17

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
