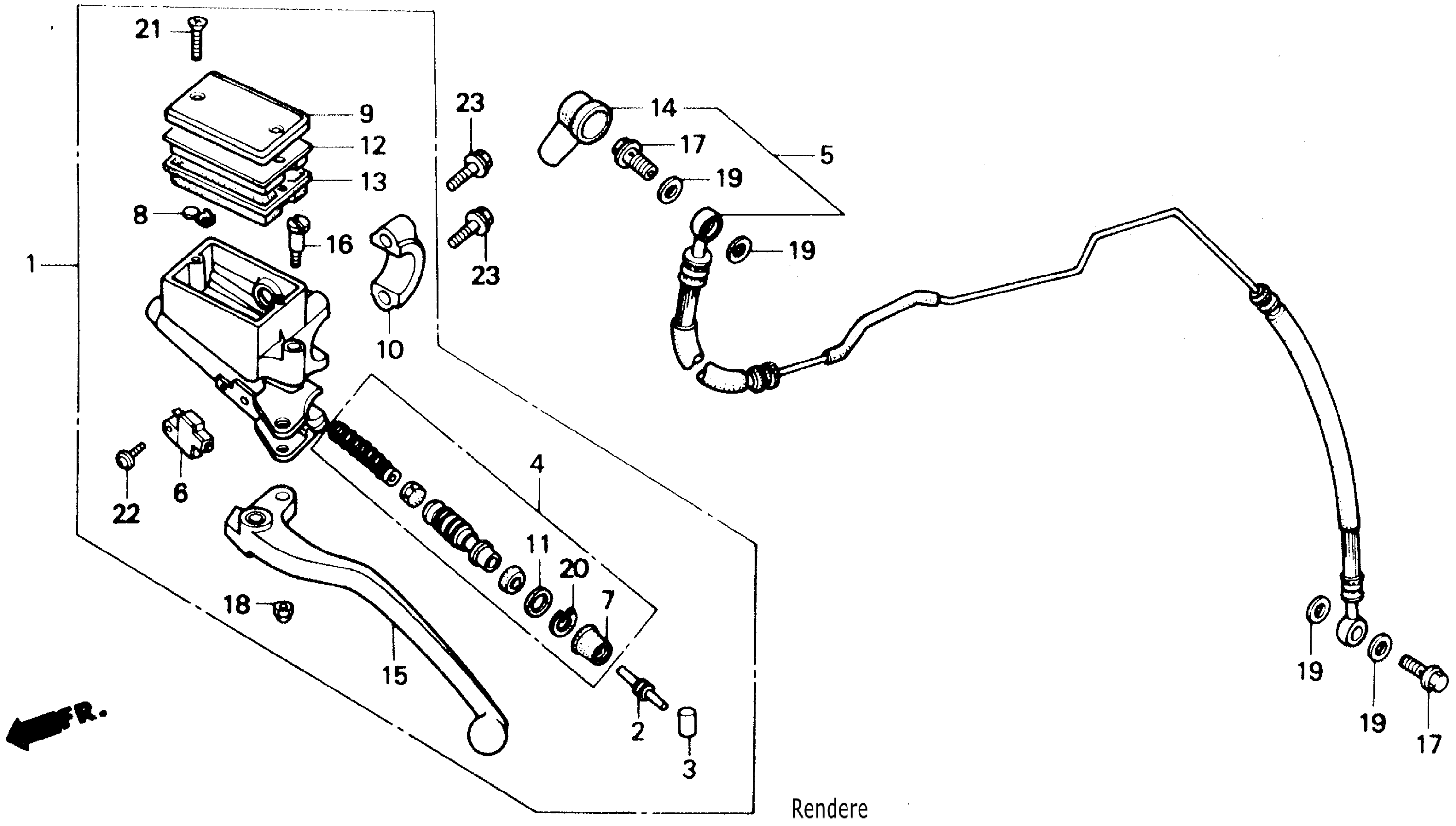

Honda VF700CA (87) MAGNA, USA, VIN# 1HFRC210-HA305001 TO 1HFRC210-HA310415 CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY., CLUTCH This part replaces 22880-MN0-006.

22880-MN0-016

Unavailable

1

MASTER CYLINDER ASSY., CLUTCH

22880-MN0-016

Unavailable

2

ROD, PUSH

22884-MB0-006

$18.55

3

BUSH

22885-MB0-006

$11.63

4

PISTON SET, CLUTCH MASTER CYLINDER

22886-MB0-305

$66.74

5

PIPE, CLUTCH (NICHIRIN)

22900-MN0-003

Unavailable

6

SWITCH ASSY., CLUTCH

35330-MB0-003

$16.34

7

BOOT

45504-410-003

$10.93

8

PROTECTOR

45512-MA6-006

$3.99

9

CAP, MASTER CYLINDER

45513-MN0-006

Unavailable

10

HOLDER, MASTER CYLINDER

45517-KR3-901

$19.04

11

PLATE, STOPPER

45518-MB0-006

$1.77

12

PLATE, DIAPHRAGM

45518-MB4-671

$10.89

13

DIAPHRAGM

45520-MA5-672

$16.27

14

BOOT, MASTER CYLINDER

45522-422-000

$7.79

15

LEVER, L. HANDLE This part replaces 53178-MJ0-921.

53178-MM5-006

$19.67

15

LEVER, L. HANDLE

53178-MM5-006

$19.67

16

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$8.46

17

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$9.89

17

BOLT, OIL (10X22)

90145-KM3-751

$9.89

18

NUT, CAP (6MM)

90201-415-000

$1.96

19

WASHER, OIL BOLT

90545-300-000

$3.72

20

CIRCLIP (INNER) (18MM)

90651-377-003

$1.77

21

SCREW, FLAT (4X12)

93600-04012-0G

$0.83

21

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.83

22

SCREW-WASHER (4X12)

93893-04012-07

$1.22

22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

23

BOLT, FLANGE (6X25)

96001-06025-07

Unavailable
