- VF700CA (87) MAGNA, USA, VIN# 1HFRC210-HA305001 TO 1HFRC210-HA310415
CAM CHAIN

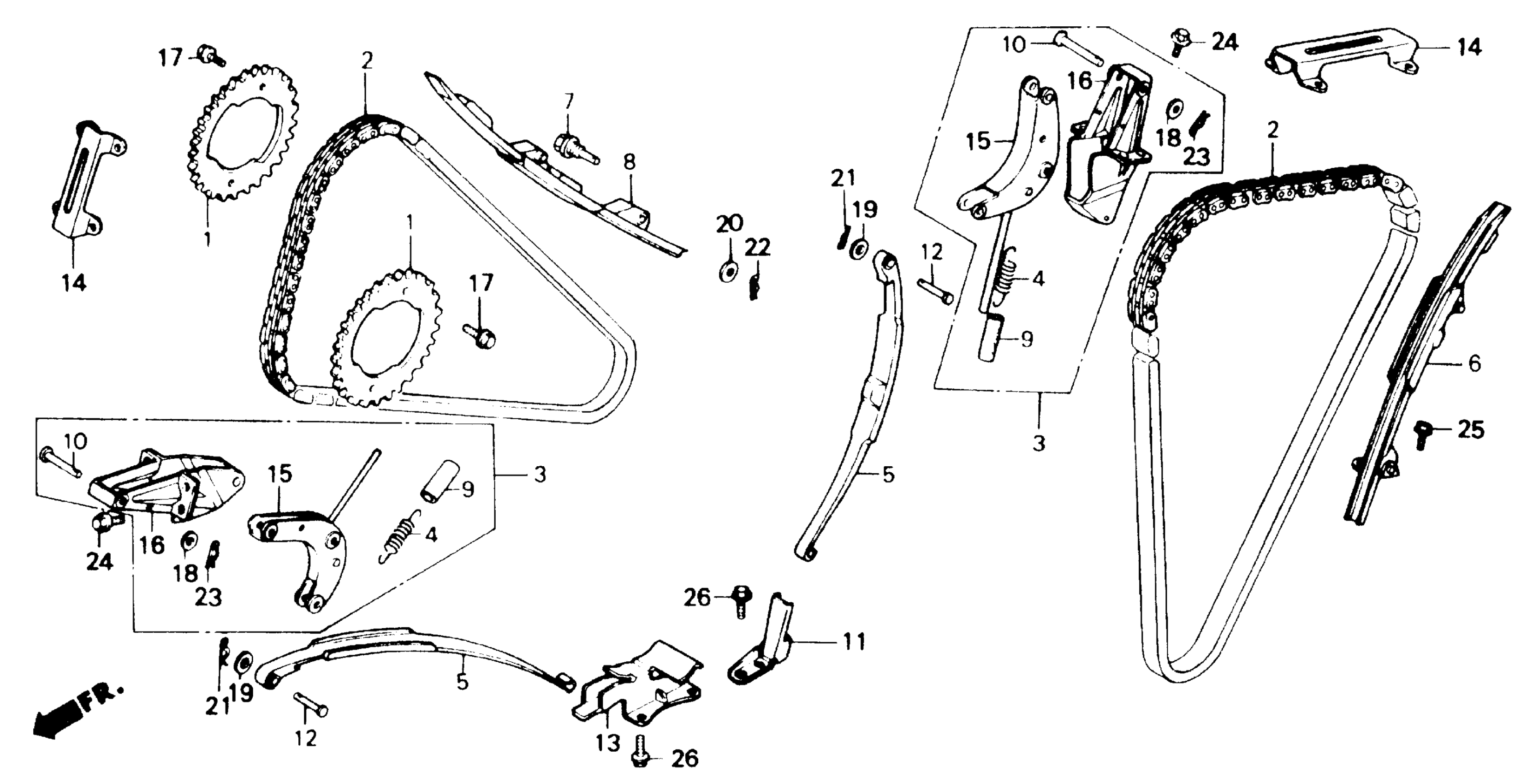

Honda VF700CA (87) MAGNA, USA, VIN# 1HFRC210-HA305001 TO 1HFRC210-HA310415 CAM CHAIN Diagram
#
Description
Price
1
SPROCKET, CAM (46T) (NOT AVAILABLE)
14321-MN0-000
Unavailable
2
CHAIN, CAM
14401-MB0-003
Unavailable
3
BRACKET ASSY., CAM CHAIN TENSIONER | Use up to Engine SN 2304836 This part replaces 14510-MB0-873.
14510-MB0-874
Unavailable
3
BRACKET ASSY., CAM CHAIN TENSIONER
14510-MB0-874
Unavailable
4
SPRING, TENSIONER
14514-MB0-000
Unavailable
5
TENSIONER, CAM CHAIN
14515-MB0-010
Unavailable
6
GUIDE A, CAM CHAIN (NOT AVAILABLE)
14520-MN0-000
Unavailable
7
BOLT, CAM CHAIN GUIDE A
14521-MB0-020
Unavailable
8
GUIDE A, CAM CHAIN
14522-MN0-000
Unavailable
9
TUBE, TENSIONER SPRING
14525-MB0-020
Unavailable
10
PIN (8X43.2)
14526-MB0-000
Unavailable
11
HOLDER A ASSY., CAM CHAIN TENSIONER
14530-MB0-000
Unavailable
12
PIN A, ARM
14533-MB0-000
Unavailable
13
HOLDER B ASSY., CAM CHAIN TENSIONER (NOT AVAILABLE)
14540-MB0-870
Unavailable
14
GUIDE B, CAM CHAIN (NOT AVAILABLE)
14541-MB0-000
Unavailable
15
ARM, CAM CHAIN TENSIONER (NOT AVAILABLE)
14550-MB0-871
Unavailable
16
BRACKET, CAM CHAIN TENSIONER HOLDER | Use up to Engine SN 2304836 This part replaces 14560-MB0-872.
14560-MB0-873
Unavailable
16
BRACKET, CAM CHAIN TENSIONER HOLDER
14560-MB0-873
Unavailable
20
WASHER (7MM)
90486-MB0-000
Unavailable
21
PIN, SPECIAL LOCK (6MM)
90704-MB0-000
Unavailable
