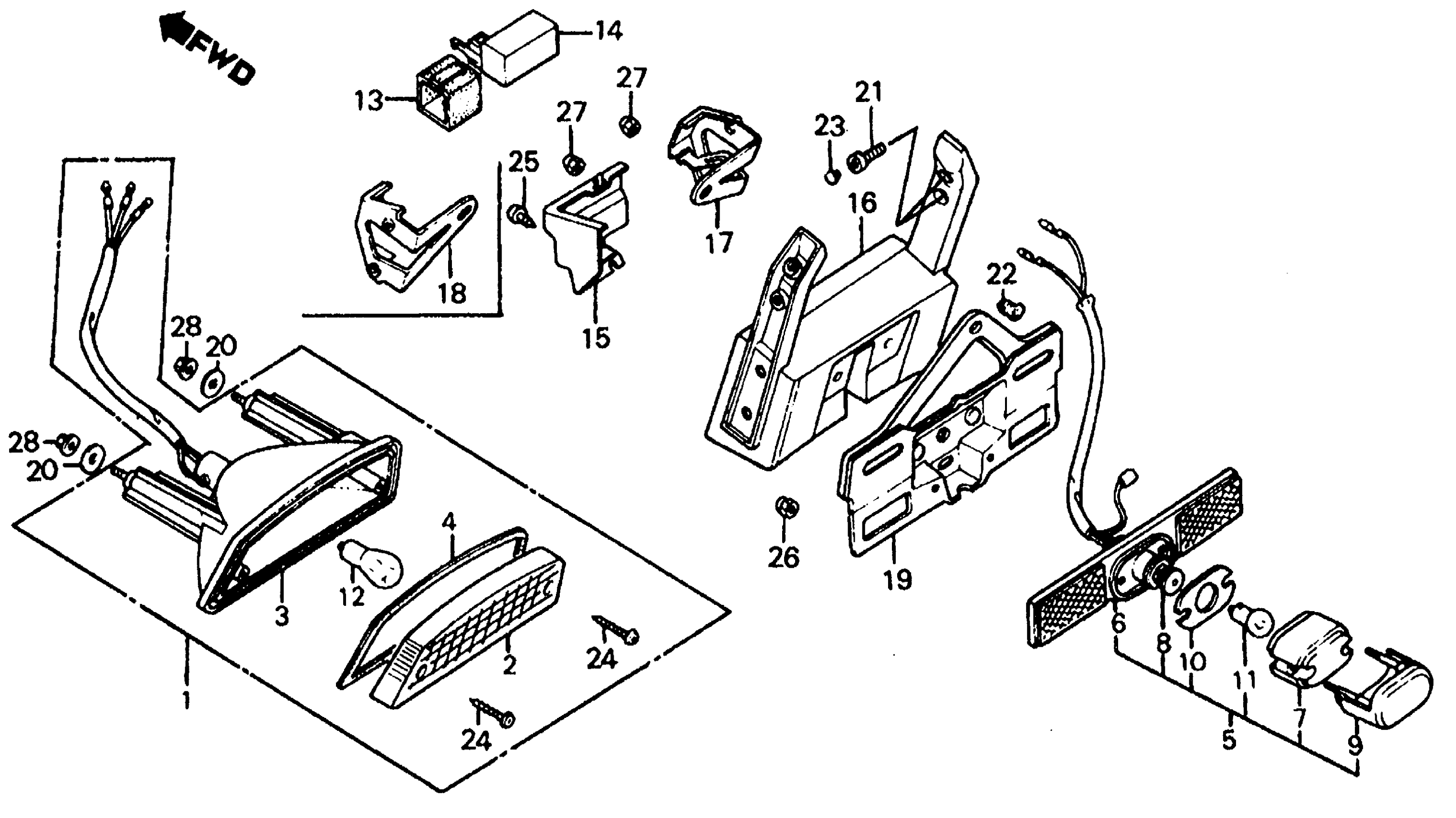

Honda VF700CA (86) MAGNA, JPN, VIN# JH2RC210-GM200003 TO JH2RC210-GM208928 TAILLIGHT 85-86 Diagram

#

Description
Price

1

TAILLIGHT UNIT (12V 32W/2CP) (NOT AVAILABLE)

33701-MK3-671

Unavailable

2

LENS, TAILLIGHT (NOT AVAILABLE)

33702-MK3-671

Unavailable

3

BASE ASSY., TAILLIGHT (NOT AVAILABLE)

33703-MK3-671

Unavailable

4

GASKET, TAILLIGHT (NOT AVAILABLE)

33709-MK3-671

Unavailable

5

LIGHT ASSY., LICENSE

33720-MJ8-670

Unavailable

5

LIGHT ASSY., LICENSE This part replaces 33720-MK3-670.

33720-MJ8-670

Unavailable

6

BASE

33721-MB1-671

$90.46

7

LENS, LICENSE

33722-MB1-013

$19.68

8

WIRE, LICENSE

33725-MK3-670

Unavailable

9

COVER

33727-MB1-003

Unavailable

10

GASKET, LENS

33729-MB1-003

$6.30

11

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.92

11

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.92

11

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.92

11

BULB (12V8W4CP) (67) (STANLEY)

34909-505-003

$2.92

11

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.92

12

BULB (12V27/7W32/2CP) (2057)

34906-SA5-671

$2.94

13

SUSPENSION, FUEL CUT RELAY

36101-MB1-000

$6.54

14

CHECK UNIT, PILOT LAMP

37640-MB1-701

Unavailable

15

COVER, PILOT LAMP CHECK UNIT

83504-MK3-770

Unavailable

16

COVER, RR. SEAT-BACK

83505-MK3-770

Unavailable

17

HOLDER, R. RR. SEAT COVER

83506-MK3-770

Unavailable

19

BRACKET, NUMBER PLATE

84701-MK3-670

Unavailable

20

WASHER, TANK SETTING

90136-428-870

$1.56

21

BOLT, SOCKET (6X12)

90151-MK3-000

$3.80

22

PLUG, CONE

90899-283-000

$2.56

23

CAP, SOCKET BOLT

91456-371-770

$3.47

24

SCREW, TAPPING (4X25)

93901-34610

$1.49

25

SCREW, TAPPING (4X10)

93903-24280

$1.49

26

NUT, CAP (4MM)

94021-04020-0S

Unavailable

27

NUT, CAP (6MM)

94021-06070-0S

$1.62

28

NUT, FLANGE (6MM)

94050-06080

$1.49
