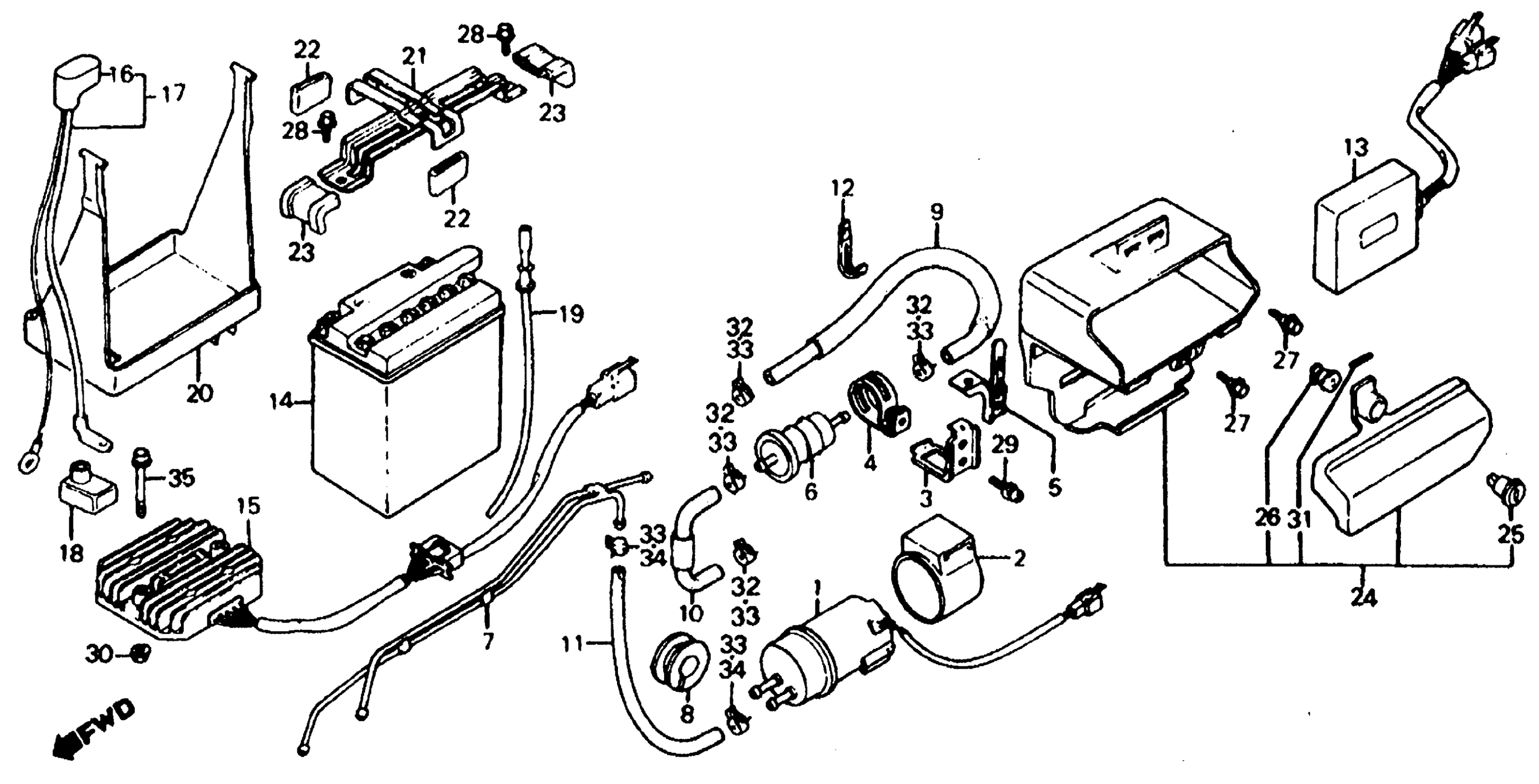

Honda VF700CA (86) MAGNA, JPN, VIN# JH2RC210-GM200003 TO JH2RC210-GM208928 BATTERY + FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY., FUEL (NOT AVAILABLE)

16710-MK3-005

Unavailable

2

RUBBER, FUEL PUMP MOUNTING (NOT AVAILABLE)

16711-MK3-000

Unavailable

3

STAY, FUEL PUMP (NOT AVAILABLE)

16712-MK3-000

Unavailable

4

HOLDER, FUEL STRAINER

16713-MK3-000

Unavailable

5

STAY, FUEL PUMP (B)

16714-MK3-000

Unavailable

6

FILTER, FUEL

16900-371-004

$30.23

7

PIPE, FUEL

16951-MK3-771

Unavailable

8

GUIDE, FUEL TUBE

16953-MK3-000

Unavailable

9

TUBE, FUEL (NOT AVAILABLE)

16956-MK3-000

Unavailable

10

TUBE, FUEL (NOT AVAILABLE)

16957-MK3-000

Unavailable

11

TUBE, FUEL (NOT AVAILABLE)

16958-MK3-000

Unavailable

12

CLAMP, FUEL TUBE

16960-MK3-000

Unavailable

13

UNIT ASSY., SPARK This part replaces 30400-MK3-004.

30400-MK3-721

Unavailable

14

BATTERY (YB14-A2) This part replaces 31500-MB1-671.

31500-MW3-720AH

$70.40

14

BATTERY (YB14-A2) This part replaces 31500-MB1-672.

31500-MW3-720AH

$70.40

14

BATTERY (YB14-A2) This part replaces 31500-MW3-720.

31500-MW3-720AH

$70.40

15

RECTIFIER ASSY., REGULATE

31600-MK3-000

Unavailable

16

COVER, BATTERY TERMINAL

32412-MJ0-920

Unavailable

17

CABLE, BATTERY GROUND (NOT AVAILABLE)

32601-MK3-770

Unavailable

18

COVER, TERMINAL (NOT AVAILABLE)

32612-MJ6-000

Unavailable

19

TUBE, BATTERY

50238-MK3-000

Unavailable

20

TRAY, BATTERY

50321-MK3-000

Unavailable

21

PLATE, BATTERY HOLDER (NOT AVAILABLE)

50322-MK3-000

Unavailable

22

RUBBER, BATTERY HOLDER (NOT AVAILABLE)

50323-MK3-000

Unavailable

23

RUBBER, BATTERY HOLDER

50327-MB4-000

Unavailable

24

BOX, TOOL

83500-MK3-000

Unavailable

25

BODY, KEY

83507-422-000

$3.53

26

STOPPER, KEY BODY

83508-KBG-000

$2.90

26

STOPPER, KEY BODY This part replaces 83508-438-000.

83508-KBG-000

$2.90

27

BOLT, FLANGE (6MM)

90116-ME9-000

$3.35

28

BOLT, SPECIAL (6X14)

90011-KF9-900

Unavailable

28

BOLT, SPECIAL (6X14) This part replaces 90113-KB7-910.

90011-KF9-900

Unavailable

29

SCREW-WASHER (5X12)

93893-05012-07

$1.49

30

NUT, FLANGE (6MM)

94050-06080

$1.49

31

PIN, SPRING (2X14)

94305-20141

$1.49

32

CLIP, TUBE (B10)

95002-02100

$1.90

34

CLIP, TUBE (D10.5)

95002-41050-08

$2.34

35

BOLT, FLANGE (6X40) This part replaces 95700-06040-08.

95701-06040-08

$1.80

35

BOLT, FLANGE (6X40)

95701-06040-08

$1.80
