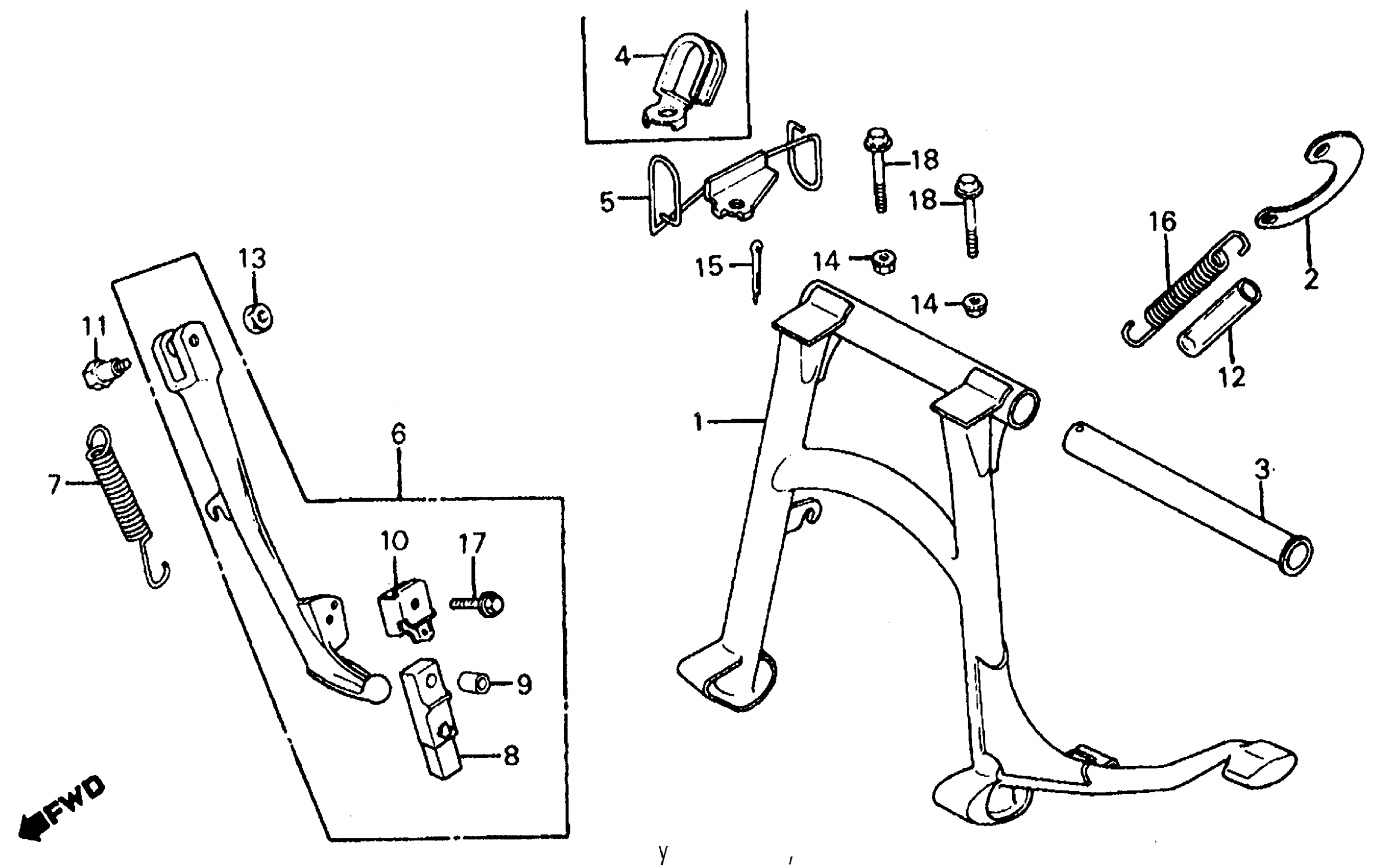

Honda VF700CA (85) MAGNA, JPN, VIN# JH2RC210-FM100006 TO JH2RC210-FM108900 SIDE STAND + MAIN STAND Diagram

STAND, MAIN

50500-MK3-000

Unavailable

PLATE, MAIN STAND SPRING

50523-425-000

Unavailable

PIPE, MAIN STAND PIVOT

50526-MB0-000

Unavailable

GUIDE, OVERFLOW TUBE (NOT AVAILABLE)

50528-MK3-000

Unavailable

BAR ASSY., SIDE STAND This part replaces 50540-MB1-000.

50540-MB4-830

Unavailable

SPRING, SIDE STAND

50541-MK3-000

$8.57

RUBBER, STAND

50548-356-700

$10.50

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

BRACKET, SIDE STAND RUBBER

50574-MB0-000

Unavailable

SCREW, SIDE STAND PIVOT

90108-KL8-710

Unavailable

SCREW, SIDE STAND PIVOT This part replaces 90109-460-840.

90108-KL8-710

Unavailable

COVER, MAIN STAND SPRING

90125-410-000

Unavailable

NUT, SIDE STAND

90203-MJ4-000

Unavailable

NUT, FLANGE (8MM)

94050-08000

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, COTTER (2.5MM)

94201-25300

$1.49

SPRING G, MAIN STAND

95014-71702

$4.08

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

BOLT, FLANGE (6X25)

95701-06025-07

$1.80

BOLT, SIDE STAND RUBBER

90115-MB0-000

Unavailable

BOLT, FLANGE (8X40) This part replaces 95700-08040-00.

95701-08040-00

$1.49

BOLT, FLANGE (8X40)

95701-08040-00

$1.49
