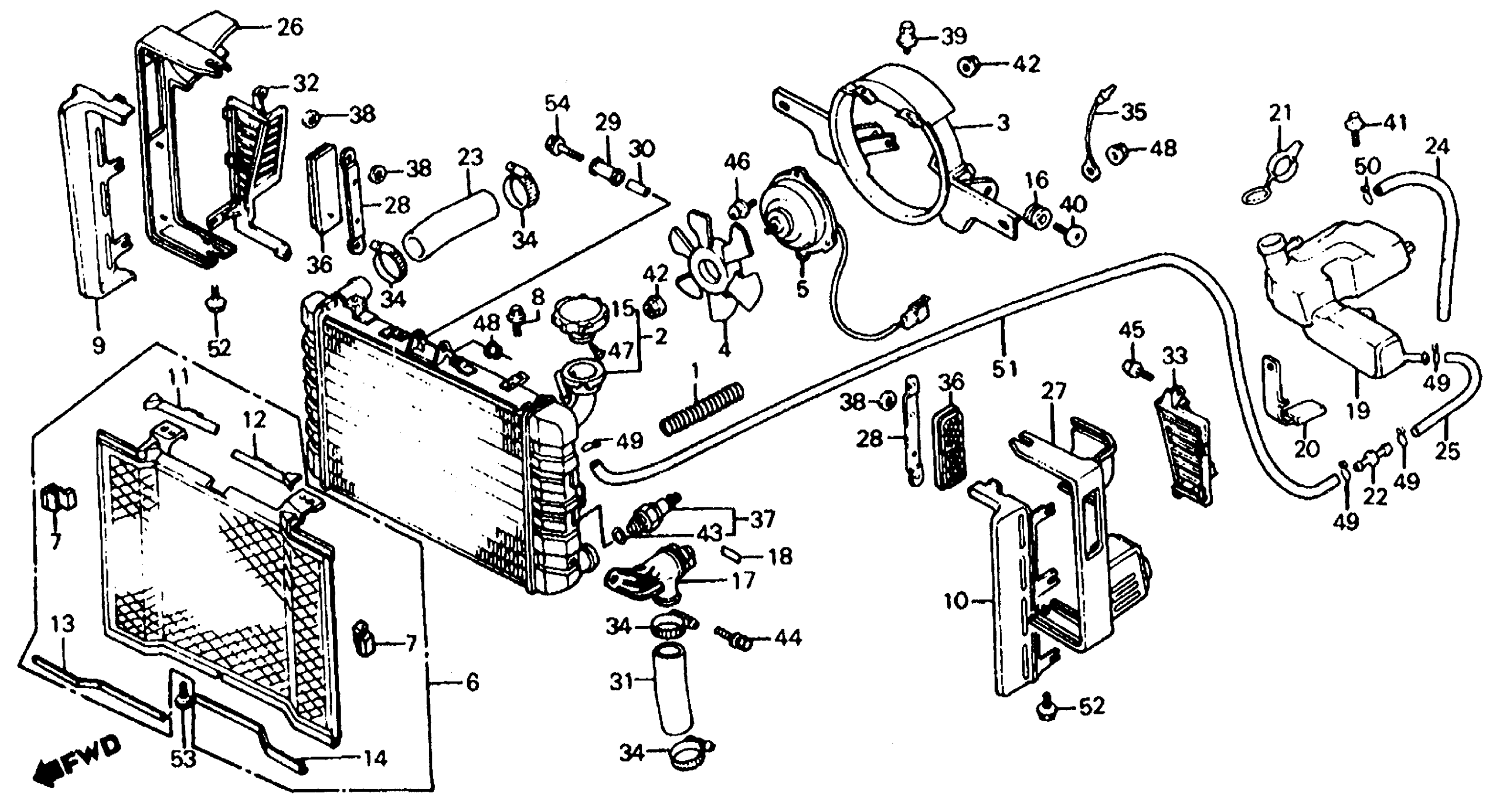

Honda VF700CA (85) MAGNA, JPN, VIN# JH2RC210-FM100006 TO JH2RC210-FM108900 RADIATOR 85-86 Diagram

#

Description
Price

1

SPRING, FUEL TUBE COVER

17532-404-000

Unavailable

2

RADIATOR (NOT AVAILABLE)

19010-MK3-003

Unavailable

3

SHROUD

19015-MK3-003

Unavailable

4

FAN, COOLING (NOT AVAILABLE)

19020-MK3-003

Unavailable

5

MOTOR, FAN (MATSUSHITA) This part replaces 19030-MK3-004.

19030-MK3-024

Unavailable

5

MOTOR, FAN (MATSUSHITA) This part replaces 19030-MK3-014.

19030-MK3-024

Unavailable

5

MOTOR, FAN (MATSUSHITA)

19030-MK3-024

Unavailable

6

GRILLE, RADIATOR

19032-MK3-000

Unavailable

7

CUSHION, RADIATOR GRILLE

19033-MK3-300

Unavailable

8

BOLT-WASHER (6X10)

19034-MK3-000

Unavailable

9

GUIDE, R. AIR

19035-MK3-000

Unavailable

10

GUIDE, L. AIR

19036-MK3-000

Unavailable

11

MOLDING, R. RADIATOR GRILLE

19041-MK3-300

Unavailable

12

MOLDING, L. RADIATOR GRILLE

19042-MK3-300

Unavailable

13

MOLDING, R. RADIATOR GRILLE

19043-MK3-300

Unavailable

14

MOLDING, L. RADIATOR GRILLE

19044-MK3-300

Unavailable

15

CAP, RADIATOR This part replaces 19045-MB0-702.

19045-MZ3-405

$32.49

16

RUBBER, RADIATOR SETTING

19051-KA4-000

$3.80

17

VALVE ASSY., RADIATOR (NOT AVAILABLE)

19060-MK3-003

Unavailable

18

LABEL, RADIATOR VALVE CAUTION

19063-MK3-300

Unavailable

19

TANK, RESERVE

19101-MK3-000

Unavailable

20

STAY, RESERVE TANK (NOT AVAILABLE)

19102-MK3-000

Unavailable

21

CAP, RESERVE TANK

19104-MB0-700

$12.16

22

JOINT, OVERFLOW TUBE

19106-MJ8-000

Unavailable

23

HOSE, RADIATOR

19107-MB1-000

Unavailable

24

TUBE, RESERVE TANK OVERFLOW

19108-MK3-000

Unavailable

25

TUBE, OVERFLOW

19109-MK3-000

Unavailable

26

COVER, R. RADIATOR (NOT AVAILABLE)

19110-MK3-000

Unavailable

27

COVER, L. RADIATOR (NOT AVAILABLE)

19111-MK3-000

Unavailable

28

PLATE, RR. SIDE SETTING

19112-MJ8-300

Unavailable

29

RUBBER, RADIATOR SETTING

19113-MB0-000

Unavailable

30

COLLAR, RADIATOR SETTING

19114-MB0-000

Unavailable

31

HOSE A, RADIATOR (NOT AVAILABLE)

19115-MK3-000

Unavailable

32

COVER, R. RR. RADIATOR (NOT AVAILABLE)

19118-MK3-000

Unavailable

33

COVER, L. RR. RADIATOR

19119-MK3-000

Unavailable

34

CLAMP, WATER HOSE

19503-MB1-870

$12.56

35

SUB-CABLE, THERMOSTAT (NOT AVAILABLE)

32111-MK3-000

Unavailable

36

REFLECTOR, FR. REFLEX

33741-MB3-671

Unavailable

37

SWITCH ASSY., THERMO This part replaces 37760-MB2-901.

37760-MR1-003

$71.91

37

SWITCH ASSY., THERMO

37760-MR1-003

$71.91

38

NUT, SPEED (4MM) This part replaces 77201-ME5-000.

90313-172-000

$5.85

39

BOLT-WASHER (5X8)

90046-MB0-003

Unavailable

40

BOLT, RADIATOR SETTING

90111-MB1-000

Unavailable

41

BOLT, FLANGE (6MM)

90111-187-000

$5.59

42

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

43

O-RING (13.5X1.4)

91307-PH7-660

$2.83

43

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

44

BOLT-WASHER (6X10)

93493-06010-00

$1.49

45

SCREW-WASHER (4X12)

93891-04012-07

$1.49

46

SCREW-WASHER (5X10)

93893-05010-08

$1.49

47

SCREW, TAPPING (3X8)

93901-22180

$1.49

48

NUT, FLANGE (6MM)

94050-06000

$1.49

49

CLIP, TUBE (B12)

95002-02120

$2.00

50

CLIP, TUBE (C11)

95002-70000

$1.56

51

BULK HOSE (7.3X1000)

95005-75001-20M

$22.45

52

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

52

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

53

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

53

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

54

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

54

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
