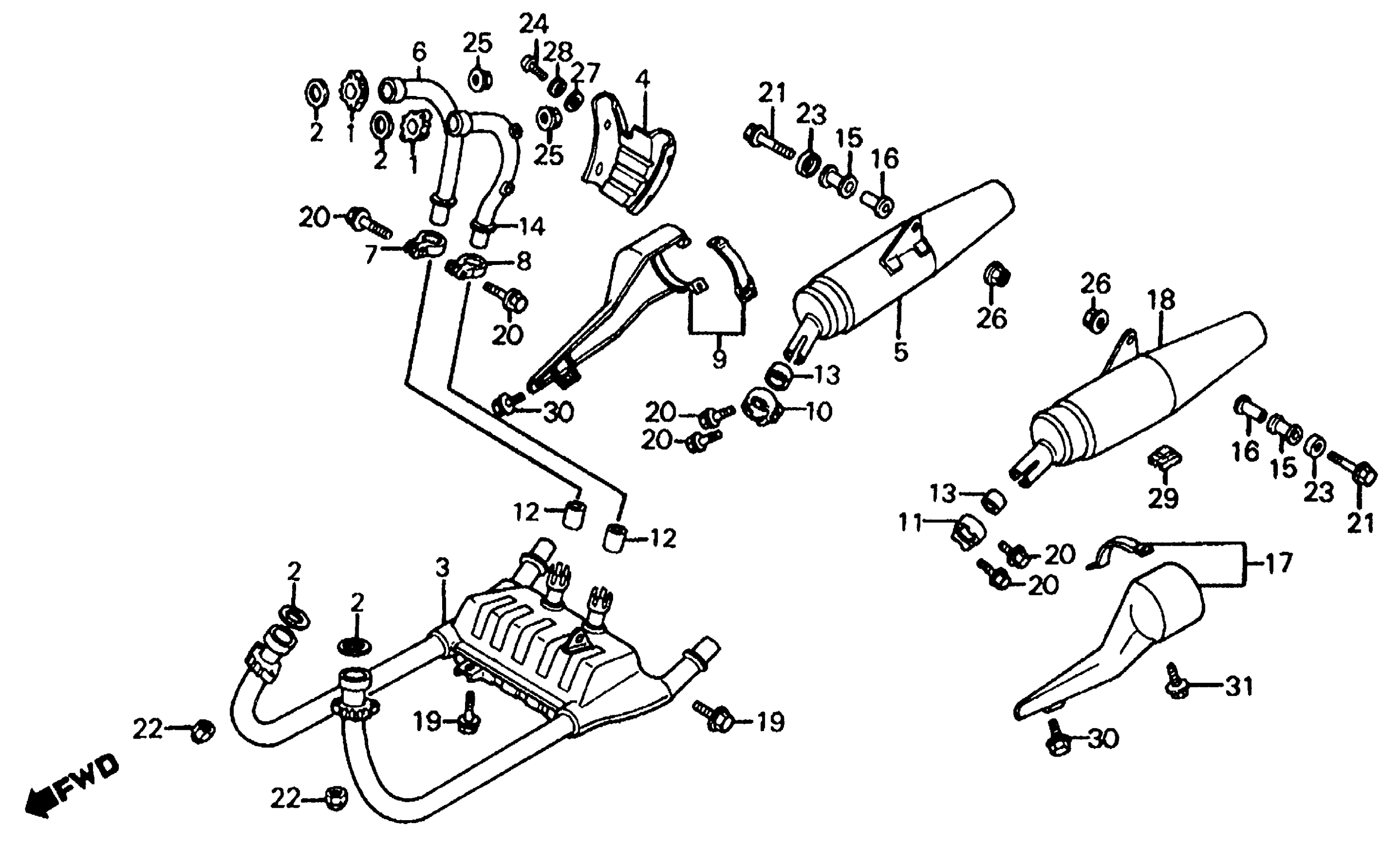

Honda VF700CA (85) MAGNA, JPN, VIN# JH2RC210-FM100006 TO JH2RC210-FM108900 MUFFLER 85-86 Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-MB0-000

Unavailable

2

GASKET, EX. PIPE

18291-MN5-650

$3.77

2

GASKET, EX. PIPE This part replaces 18291-216-000.

18291-MN5-650

$3.77

3

CHAMBER, EX. (NOT AVAILABLE)

18300-MK3-003

Unavailable

4

PROTECTOR, RR. EX. PIPE

18316-MK3-003

Unavailable

5

MUFFLER, R. EX. (NOT AVAILABLE)

18330-MK3-003

Unavailable

6

PIPE, R. RR. EX. This part replaces 18370-MB0-003.

18370-MB0-890

Unavailable

6

PIPE, R. RR. EX.

18370-MB0-890

Unavailable

7

BAND, R. EX.

18373-MB0-003

Unavailable

8

BAND, L. EX. PIPE

18374-MB0-003

Unavailable

9

PROTECTOR, R. CHAMBER (NOT AVAILABLE) This part replaces 18375-MK3-003.

18375-MK3-013

Unavailable

9

PROTECTOR, R. CHAMBER (NOT AVAILABLE)

18375-MK3-013

Unavailable

10

BAND, R. MUFFLER

18376-MB0-003

Unavailable

10

BAND, R. MUFFLER This part replaces 18376-MK3-000.

18376-MB0-003

Unavailable

11

BAND, L. MUFFLER

18377-MB0-003

Unavailable

11

BAND, L. MUFFLER This part replaces 18377-MK3-000.

18377-MB0-003

Unavailable

12

GASKET, MUFFLER

18391-MB0-891

$17.92

13

GASKET, MUFFLER

18392-MK3-000

Unavailable

14

PIPE, L. RR. EX. This part replaces 18420-MB0-003.

18420-MB0-890

Unavailable

15

RUBBER, MUFFLER MOUNT

18421-MK3-000

Unavailable

16

COLLAR, MUFFLER MOUNTING This part replaces 18422-MK3-000.

18422-MN5-000

$9.05

17

PROTECTOR, L. CHAMBER (NOT AVAILABLE) This part replaces 18425-MK3-003.

18425-MK3-013

Unavailable

17

PROTECTOR, L. CHAMBER (NOT AVAILABLE)

18425-MK3-013

Unavailable

18

MUFFLER, L. EX.

18430-MK3-003

Unavailable

19

BOLT, FLANGE (6X20)

90003-MB2-000

Unavailable

20

BOLT, FLANGE (8X37)

90118-471-000

$3.19

21

BOLT, SPECIAL FLANGE (8X45)

90158-MB1-000

$5.13

22

NUT, CAP (6MM)

90304-438-000

$7.14

23

WASHER, SPECIAL (8MM)

90557-MB0-000

Unavailable

24

SCREW, PAN (6X8)

93500-06008-4J

$2.30

25

NUT, FLANGE (6MM)

94050-06000

$1.49

26

NUT, FLANGE (8MM)

94050-08000

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

27

WASHER, PLAIN (6MM)

94101-06800

$1.49

28

WASHER, SPRING (6MM)

94111-06000

$1.49

29

RUBBER A, STAND STOPPER

95011-61000

$1.49

30

BOLT, FLANGE (6X10) This part replaces 95700-06010-02.

95701-06010-02

$1.55

30

BOLT, FLANGE (6X10)

95701-06010-02

$1.55

31

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

31

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
