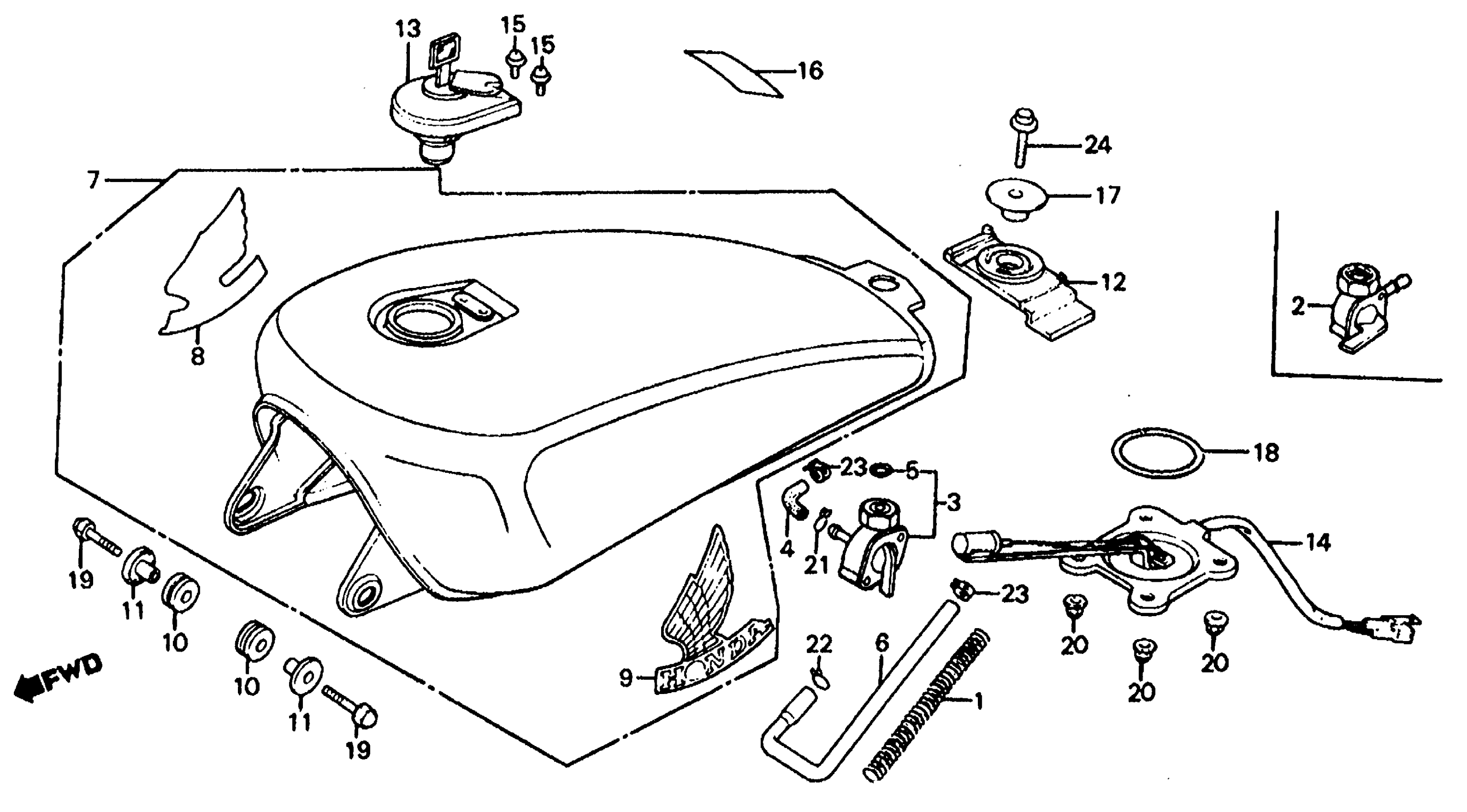

Honda VF700CA (85) MAGNA, JPN, VIN# JH2RC210-FM100006 TO JH2RC210-FM108900 FUEL TANK 85-86 Diagram

SPRING, FUEL TUBE COVER

16715-MB1-000

Unavailable

PETCOCK ASSY. (NOT AVAILABLE)

16950-MK3-015

Unavailable

TUBE, FUEL (NOT AVAILABLE)

16955-MK3-000

Unavailable

TUBE, FUEL (NOT AVAILABLE)

16959-MK3-000

Unavailable

TANK SUB-ASSY., FUEL *R130CU* (WL) (CANDY SCORPIO RED) (NOT AVAILABLE) This part replaces 17520-MK3-000ZB.

17520-MK3-010ZB

Unavailable

TANK SUB-ASSY., FUEL *R130CU* (WL) (CANDY SCORPIO RED) (NOT AVAILABLE)

17520-MK3-010ZB

Unavailable

TANK SUB-ASSY., FUEL *NH1Z* (WL) (BLACK-Z) This part replaces 17520-MK3-000ZA.

17520-MK3-010ZA

Unavailable

TANK SUB-ASSY., FUEL *NH1Z* (WL) (BLACK-Z)

17520-MK3-010ZA

Unavailable

MARK, R. FUEL TANK

17531-MB4-680

Unavailable

MARK, L. FUEL TANK

17532-MB4-680

Unavailable

RUBBER, FR. FUEL TANK

17611-MK3-000

$3.03

COLLAR, FR. FUEL TANK MOUNTING (NOT AVAILABLE)

17612-MK3-000

Unavailable

RUBBER, RR. FUEL TANK (NOT AVAILABLE)

17613-MK3-000

Unavailable

CAP, FUEL FILLER This part replaces 17620-MB1-023.

17620-MB1-043

$129.39

CAP, FUEL FILLER This part replaces 17620-MB1-033.

17620-MB1-043

$129.39

SENSOR, FUEL RESERVE (NOT AVAILABLE)

37810-MK3-007

Unavailable

SCREW-WASHER (4X6)

45319-634-003

$2.48

LABEL, DRIVE CAUTION *A73* (TYPEG) (GOLD)

87560-ME9-670ZA

$5.22

COLLAR, FUEL TANK SETTING

90324-MB2-000

Unavailable

O-RING (39.5X5)

91305-MC7-000

$3.31

BOLT, CAP (6X25)

92600-06025-0B

Unavailable

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

NUT, CAP (6MM)

94021-06020

$1.73

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

CLIP, TUBE (B10)

95002-02100

$1.90

CLIP, TUBE (B12)

95002-02120

$2.00

CLIP, TUBE (D10)

95002-41000-08

$2.41

BOLT, FLANGE (8X22) This part replaces 95700-08022-00.

95701-08022-00

$2.16

BOLT, FLANGE (8X22)

95701-08022-00

$2.16
