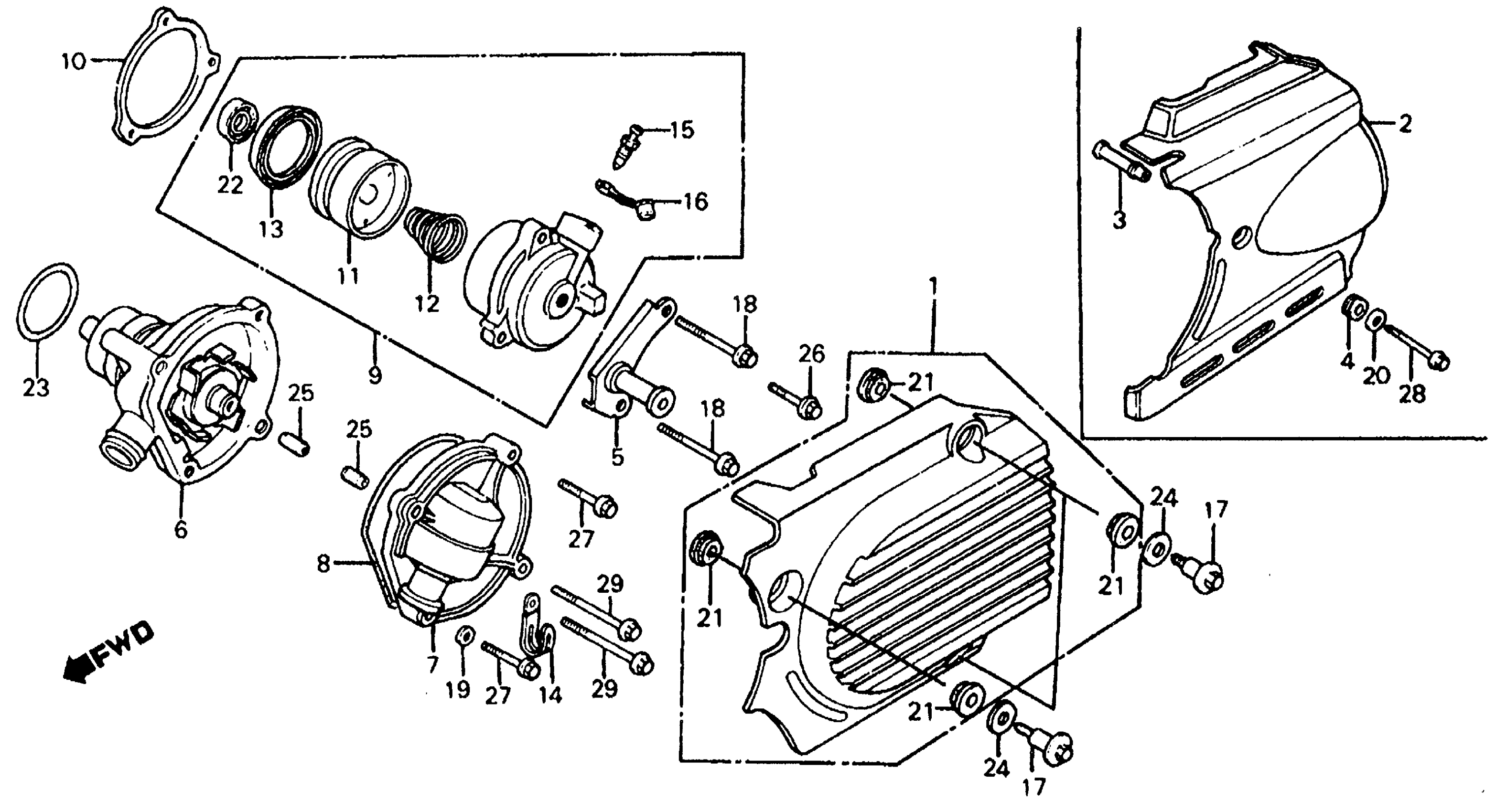

Honda VF700CA (84) MAGNA, JPN, VIN# JH2RC210-EM000002 TO JH2RC210-EM014552 LEFT CRANKCASE COVER + WATER PUMP Diagram

#

Description
Price

2

COVER, RR. (NOT AVAILABLE)

11341-MB0-770

Unavailable

3

COLLAR, RR. COVER (NOT AVAILABLE)

11343-MB0-000

Unavailable

4

GROMMET A, RR. COVER

11344-MB0-000

$2.62

6

WATER PUMP This part replaces 19200-MB0-770.

19200-MB0-771

Unavailable

7

COVER, WATER PUMP (NOT AVAILABLE)

19220-MB0-770

Unavailable

8

GASKET, WATER PUMP COVER

19226-MB0-000

Unavailable

9

CYLINDER ASSY., CLUTCH SLAVE

22860-MB0-770

Unavailable

10

INSULATOR, CLUTCH SLAVE

22862-MB0-307

$5.38

10

INSULATOR, CLUTCH SLAVE This part replaces 22862-MB0-770.

22862-MB0-307

$5.38

11

PISTON, SLAVE CYLINDER

22863-MB0-003

$28.75

12

SPRING, SLAVE CYLINDER

22864-MB0-003

$5.81

13

CUP, PISTON

22865-MB0-003

$12.45

14

CLAMP, STARTER CABLE

31211-MB0-000

Unavailable

15

SCREW, BLEEDER

43352-568-003

$7.39

16

CAP, BLEEDER

43353-461-771

$4.70

18

BOLT, FLANGE (6X55)

90051-MB0-000

Unavailable

19

WASHER, THRUST (11MM)

90425-300-000

$2.42

20

WASHER, RR. COVER GROMMET

90439-MB0-000

$1.57

22

OIL SEAL (8X18X5) (NISSIN)

91209-MB0-003

$3.77

23

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.67

25

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.04

26

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.13

26

BOLT, FLANGE (6X22)

96001-06022-00

$1.13

27

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

Unavailable

27

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable

28

BOLT, FLANGE (6X60) This part replaces 96000-06060-07.

96001-06060-07

$1.88

28

BOLT, FLANGE (6X60)

96001-06060-07

$1.88

29

BOLT, FLANGE (6X70) This part replaces 96000-06070-00.

96001-06070-00

$1.78

29

BOLT, FLANGE (6X70)

96001-06070-00

$1.78
