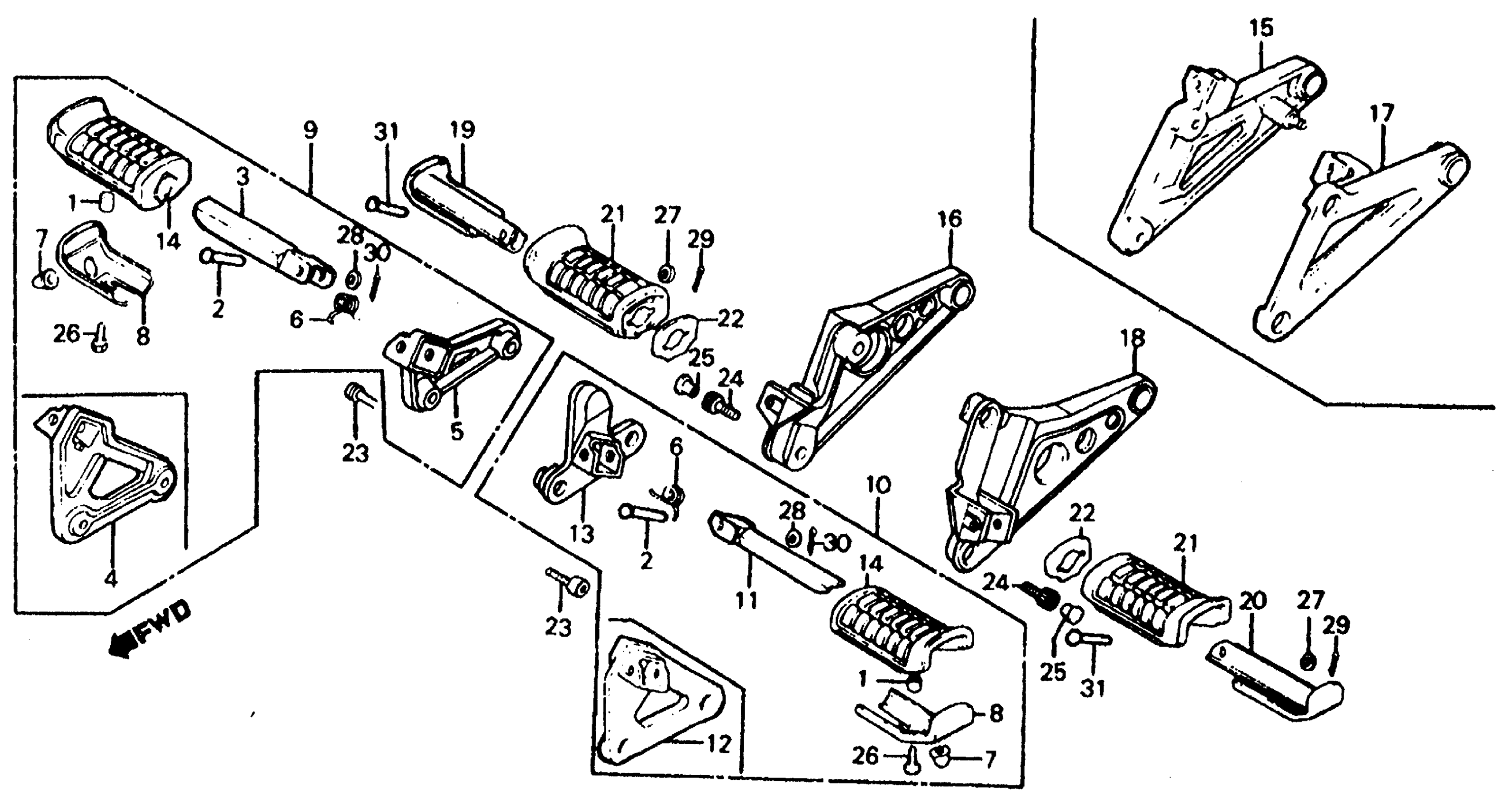

Honda VF700CA (84) MAGNA, JPN, VIN# JH2RC210-EM000002 TO JH2RC210-EM014552 FOOTPEGS Diagram

#

Description
Price

1

COLLAR, CHAIN CASE

40515-413-000

$2.92

2

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

2

PIN, STEP BAR JOINT

50603-033-010

$3.30

3

BAR, R. FOOTPEG

50612-MB1-000

Unavailable

4

BRACKET, R. FOOTPEG

50615-MB1-000

Unavailable

6

SPRING, STEP RETURN

50617-MB1-700

$5.80

7

SLIDER, STEP

50618-MB1-000

$4.13

8

STOPPER, STEP RUBBER

50619-MB1-000

Unavailable

9

FOOTPEG ASSY., R. MAIN (NOT AVAILABLE)

50630-MB1-700

Unavailable

10

FOOTPEG ASSY., L. MAIN (NOT AVAILABLE)

50640-MB1-700

Unavailable

11

BAR, L. FOOTPEG

50642-MB1-000

Unavailable

12

BRACKET, L. FOOTPEG (NOT AVAILABLE)

50645-MB1-000

Unavailable

14

RUBBER, MAIN STEP

50661-MB1-000

Unavailable

15

HOLDER, R. PILLION FOOTPEG

50680-MB1-010

Unavailable

17

HOLDER, L. PILLION FOOTPEG

50690-MB1-000

Unavailable

19

BAR, R. PILLION STEP

50711-MB1-000

Unavailable

20

BAR, L. PILLION FOOTPEG

50712-MB1-000

Unavailable

21

RUBBER, PILLION STEP

50713-MB1-000

$15.82

22

WASHER, PILLION STEP

50714-MB1-000

Unavailable

23

BOLT, SOCKET (8X17) This part replaces 90153-MB0-000.

90153-MB0-405

$3.38

23

BOLT, SOCKET (8X17)

90153-MB0-405

$3.38

24

BOLT, SOCKET

90109-MB0-000

Unavailable

24

BOLT, SOCKET This part replaces 90157-MB1-000.

90109-MB0-000

Unavailable

25

CAP, SOCKET BOLT (8MM)

91455-MA6-750

$3.71

26

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

26

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

26

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

27

WASHER, PLAIN (6MM)

94101-06800

$1.49

28

WASHER, PLAIN (8MM)

94101-08000

$1.49

29

PIN, COTTER (1.6X10)

94201-16100

$1.49

30

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

30

PIN, COTTER (1.6X25)

94201-16250

$1.49

31

PIN C, PILLION FOOTPEG

95015-83000

$2.41
