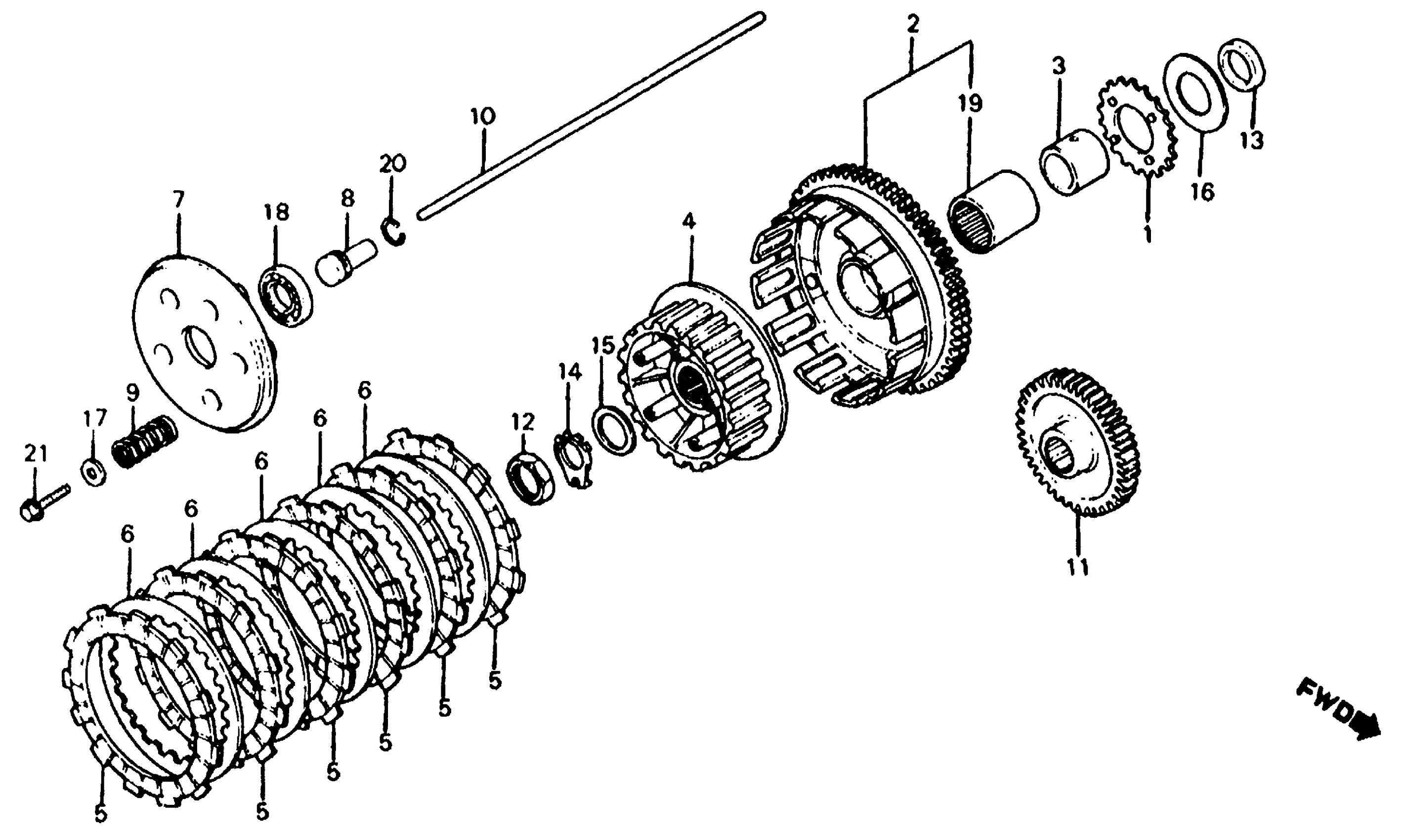

Honda VF700CA (84) MAGNA, JPN, VIN# JH2RC210-EM000002 TO JH2RC210-EM014552 CLUTCH Diagram

#

Description
Price

1

SPROCKET, OIL PUMP DRIVE (26T) (NOT AVAILABLE)

15131-MB0-000

Unavailable

2

CLUTCH (OUTER) (NOT AVAILABLE) This part replaces 22100-MB0-770.

22100-MN2-000

Unavailable

2

CLUTCH (OUTER) (NOT AVAILABLE) This part replaces 22100-MB0-771.

22100-MN2-000

Unavailable

2

CLUTCH (OUTER) (NOT AVAILABLE) This part replaces 22100-MB0-772.

22100-MN2-000

Unavailable

2

CLUTCH (OUTER) (NOT AVAILABLE) This part replaces 22100-MK3-730.

22100-MN2-000

Unavailable

3

GUIDE, CLUTCH (OUTER)

22116-MB0-000

$33.77

4

CENTER, CLUTCH This part replaces 22120-MB1-770.

22120-MN0-000

Unavailable

4

CENTER, CLUTCH

22120-MN0-000

Unavailable

5

DISK, CLUTCH FRICTION This part replaces 22201-MB0-003.

22201-MM5-000

$28.39

5

DISK, CLUTCH FRICTION

22201-MM5-000

$28.39

6

PLATE, CLUTCH

22321-MG8-000

$15.44

6

PLATE, CLUTCH This part replaces 22321-283-000.

22321-MG8-000

$15.44

7

PLATE, CLUTCH PRESSURE This part replaces 22350-MB0-003.

22350-MK3-770

Unavailable

7

PLATE, CLUTCH PRESSURE This part replaces 22350-MG7-000.

22350-MK3-770

Unavailable

7

PLATE, CLUTCH PRESSURE

22350-MK3-770

Unavailable

8

PIECE, CLUTCH JOINT (NOT AVAILABLE)

22366-MB0-000

Unavailable

9

SPRING, CLUTCH

22401-MB0-000

$5.40

10

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22850-MB0-000

Unavailable

11

GEAR, PRIMARY DRIVE (38T) This part replaces 23103-MB0-770.

23103-MB0-771

Unavailable

11

GEAR, PRIMARY DRIVE (38T)

23103-MB0-771

Unavailable

12

NUT, LOCK (22MM)

90201-MB0-770

Unavailable

13

COLLAR (25.2X7) (NOT AVAILABLE)

90203-MB0-000

Unavailable

15

WASHER, SPRING (22MM) This part replaces 90432-MB0-000.

90432-MB0-010

$9.93

15

WASHER, SPRING (22MM)

90432-MB0-010

$9.93

16

WASHER, THRUST (25MM)

90459-MB0-000

Unavailable

17

WASHER (6X19)

90481-259-000

Unavailable

18

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$15.40

19

BEARING, NEEDLE (35X42X30) (TOYO)

91024-MB0-003

$86.11

19

BEARING, NEEDLE (35X42X30) (TOYO) This part replaces 91024-MB0-004.

91024-MB0-003

$86.11

20

CLIP, PISTON PIN (15MM)

94601-15000

$1.49

21

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

21

BOLT, FLANGE (6X20) This part replaces 95718-06020-08.

95701-06020-08

$1.49
