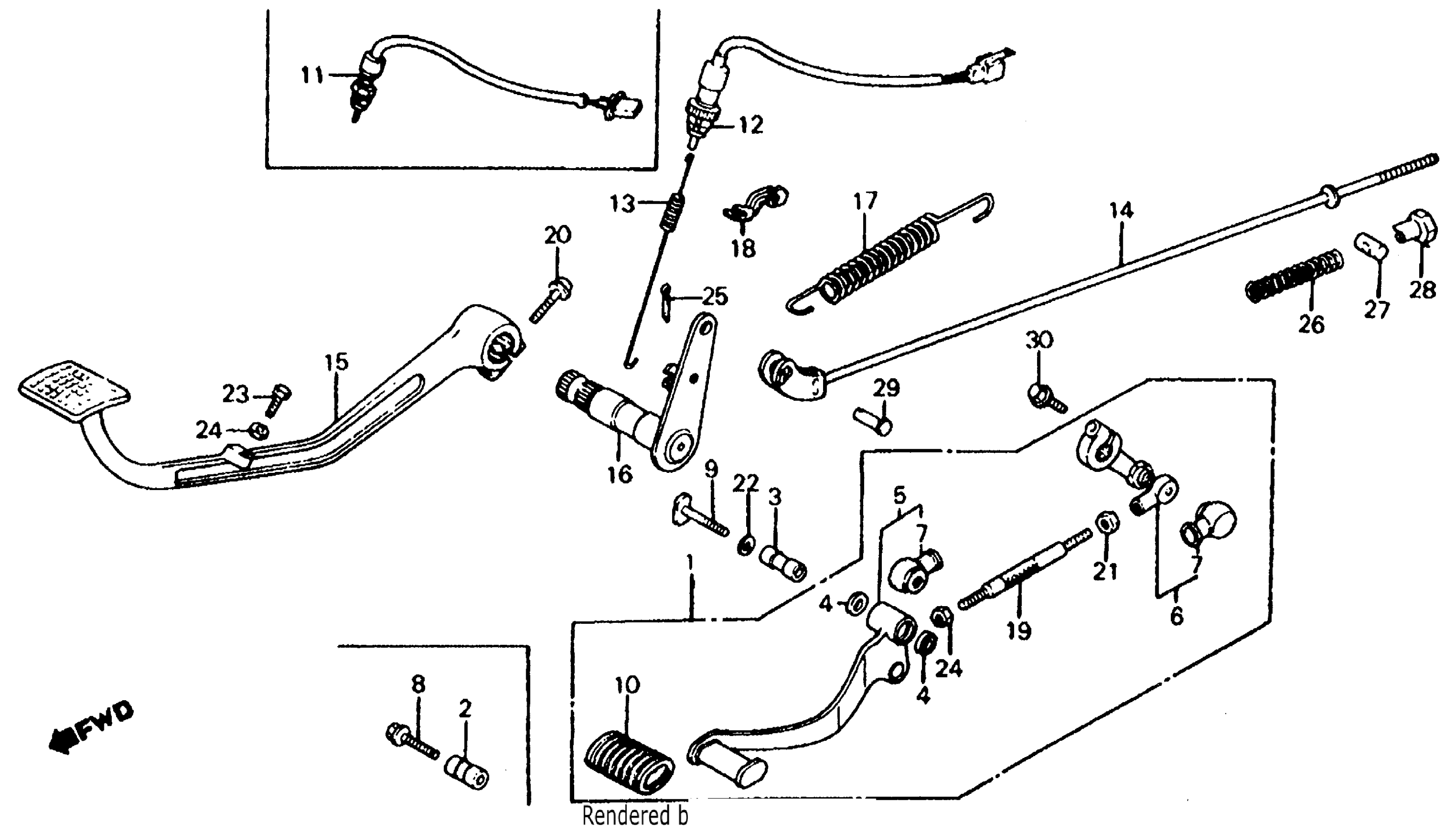

Honda VF700CA (84) MAGNA, JPN, VIN# JH2RC210-EM000002 TO JH2RC210-EM014552 BRAKE PEDAL + GEARSHIFT PEDAL Diagram

PEDAL ASSY., GEARSHIFT (NOT AVAILABLE)

24700-MB1-700

Unavailable

COLLAR, GEARSHIFT PEDAL PIVOT

24705-MB0-000

$12.16

COLLAR, GEARSHIFT PEDAL PIVOT

24705-MT6-000

Unavailable

PEDAL, GEARSHIFT (NOT AVAILABLE)

24720-MB1-700

Unavailable

ARM, GEARSHIFT

24721-MB1-000

Unavailable

COVER, DUST

24724-422-000

$6.68

BOLT, GEARSHIFT PEDAL PIVOT

24725-MB1-000

Unavailable

RUBBER, GEARSHIFT PEDAL

24781-371-000

$5.13

SWITCH ASSY., RR. STOP This part replaces 35350-MB0-000.

35350-ME9-405

Unavailable

SWITCH ASSY., RR. STOP

35350-ME9-405

Unavailable

SWITCH ASSY., RR. STOP This part replaces 35350-ME9-770.

35350-ME9-405

Unavailable

SPRING, STOP SWITCH

35357-MB1-000

Unavailable

ROD, RR. BRAKE (NOT AVAILABLE)

43451-MB1-000

Unavailable

PEDAL, RR. BRAKE (NOT AVAILABLE)

46500-MB1-000

Unavailable

ARM, RR. BRAKE PEDAL MIDDLE

46513-MB1-000

Unavailable

SPRING, RR. BRAKE (NOT AVAILABLE)

46514-MB1-020

Unavailable

BOLT, TIE ROD (NOT AVAILABLE) This part replaces 90065-MB1-000.

90065-MK3-000

Unavailable

BOLT, SPECIAL FLANGE (8X30)

90179-422-000

Unavailable

NUT, GOVERNOR ARM FIXING

90201-700-000

$1.49

BOLT, HEX. (6X20) This part replaces 92000-06020-0B.

92101-06020-0B

Unavailable

BOLT, HEX. (6X20) This part replaces 92000-06020-02.

92101-06020-0B

Unavailable

BOLT, HEX. (6X20) This part replaces 92018-06020-02.

92101-06020-0B

Unavailable

BOLT, HEX. (6X20)

92101-06020-0B

Unavailable

NUT, HEX. (6MM)

94002-06020-0S

$1.49

PIN, COTTER (1.6X12)

94201-16120

$1.49

SPRING A, BRAKE ROD

95014-73100

$1.49

JOINT, BRAKE ARM

95015-32001

$1.49

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

$1.80

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
